Epson L1800 Service Manual

L1800 Revision A
Disassembly And Assembly Overview 42
Confidential
3.1.7 Method for making Adapter Guide Holder removal
tool
The Adapter Guide Holder (refer to p.58) can be easily removed by using a special
tool. The method for making the tool is described below.
1. Prepare a handle part of a clip, or a similar metal wire piece.

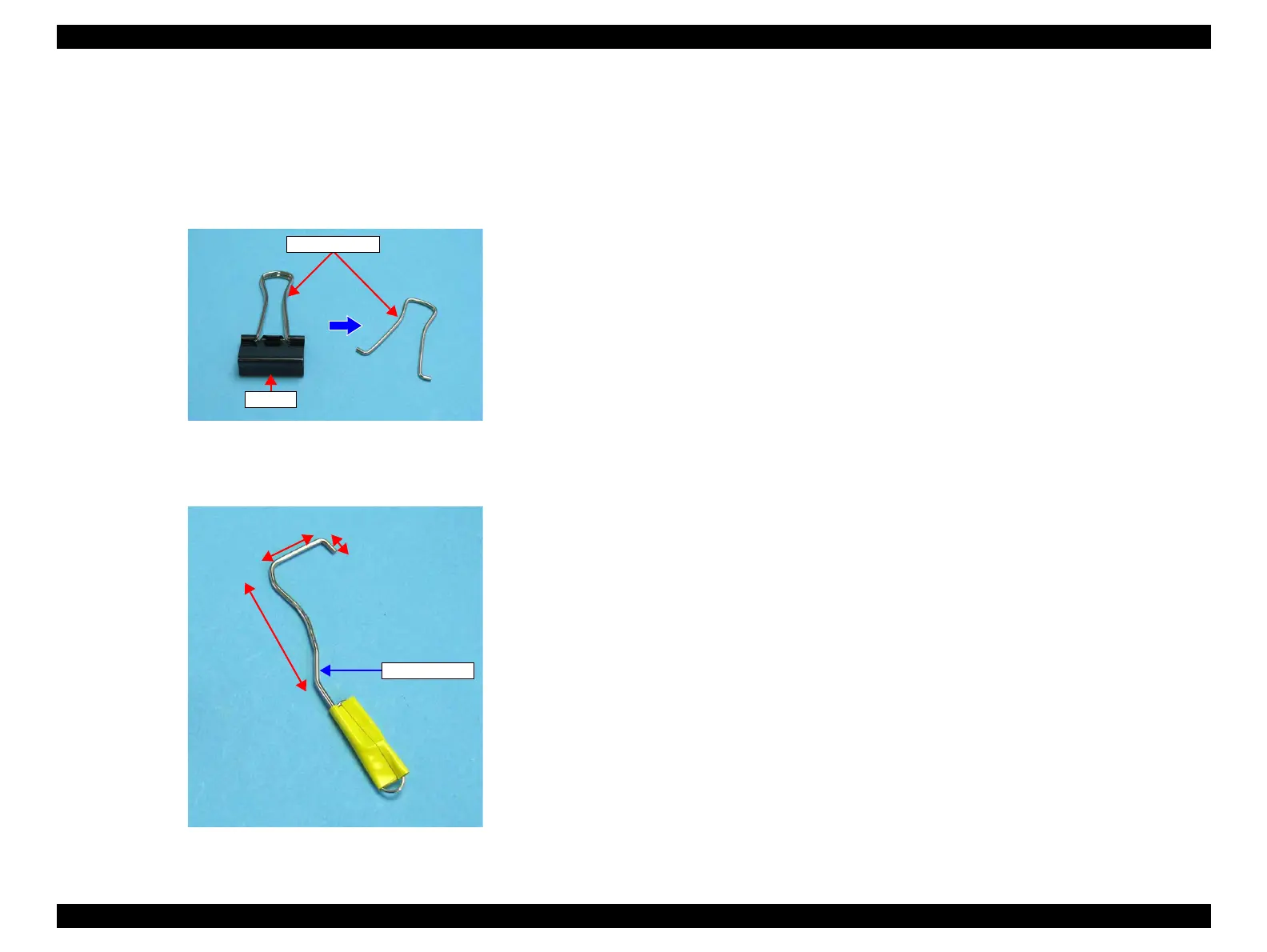

Figure 3-9. Method for making Adapter Guide Holder Removal Tool (1)
2. Bend the metal wire into dimensions described below.
Figure 3-10. Method for making Adapter Guide Holder Removal Tool (2)
Handle part
Clip
7mm
25mm
50mm
Special Tool

Epson L1800 Specifications

General

Style	Inkjet
Color	Black
Control Panel	-
Noise Level
Interface Connectors	10/100/1000BaseTX
Wireless Connectivity	Wireless LAN/WiFi Direct
Apple Macintosh OS X 10.5 or later; Linux	Windows 7
Mac OS® X 10.6.8 – 10.10.x8	Windows 7
MPT: Min. A6R - Max. A4R (Legal)	DL (Envelope)
MPT: Min. A6R – Max. A4 (Legal)	5 in x 7 in
Duplex Printing: A4 / Letter / Oficio / Folio / Legal / JIS B5 / ISO B5 / Executive / Statement	C6 (Envelope)
Manual Feed Slot: Letter	A6
Functions	Scan
Features	Creative Print mobile app
Printing Method	Monochrome
Nozzles	-
Print Resolution	Up to 5760 x 1440 dpi (mono) / up to 5760 x 1440 dpi (color)
Scanner Type	-
Scan Formats	-
Copy Modes	-
Max Copies	-
Copy Size	-
Copy Scale	-
Power Consumption	6 Watt (Ready)
Battery Life	-
Battery Capacity	-

Weight and Dimensions

Depth	322 mm
Height	215 mm
Width	705 mm
Net Weight	24.62 kg
