L1800 Revision A
Disassembly And Assembly Overview 40
Confidential
3.1.5 Protection for Transportation
Before packing the printer for returning it to the user, secure it at the specified points
with strong tape to avoid damaging the printer or ink leakage during transport, and
make sure to check the points as follows.
Securing each parts
Secure the following parts with strong tape.
Securing the Carriage Unit
Prepare a piece of strong tape (length: 205
±
2 mm,
width: 22 mm
).
1. Confirm that the Carriage Unit is locked in the home position.
2. Attach the unfolded end of strong tape (fold the other end back 5 mm) on the
bottom left of the Adapter Cover.
3. Move the carriage in the direction of the arrow (130 digit side) in Figure 3-6
until it touches the Carriage Lock.
4. Pull the tape toward the right side of the housing and attach it tightly along the
shapes of the housing as shown in Figure 3-6 to secure the Carriage Unit.

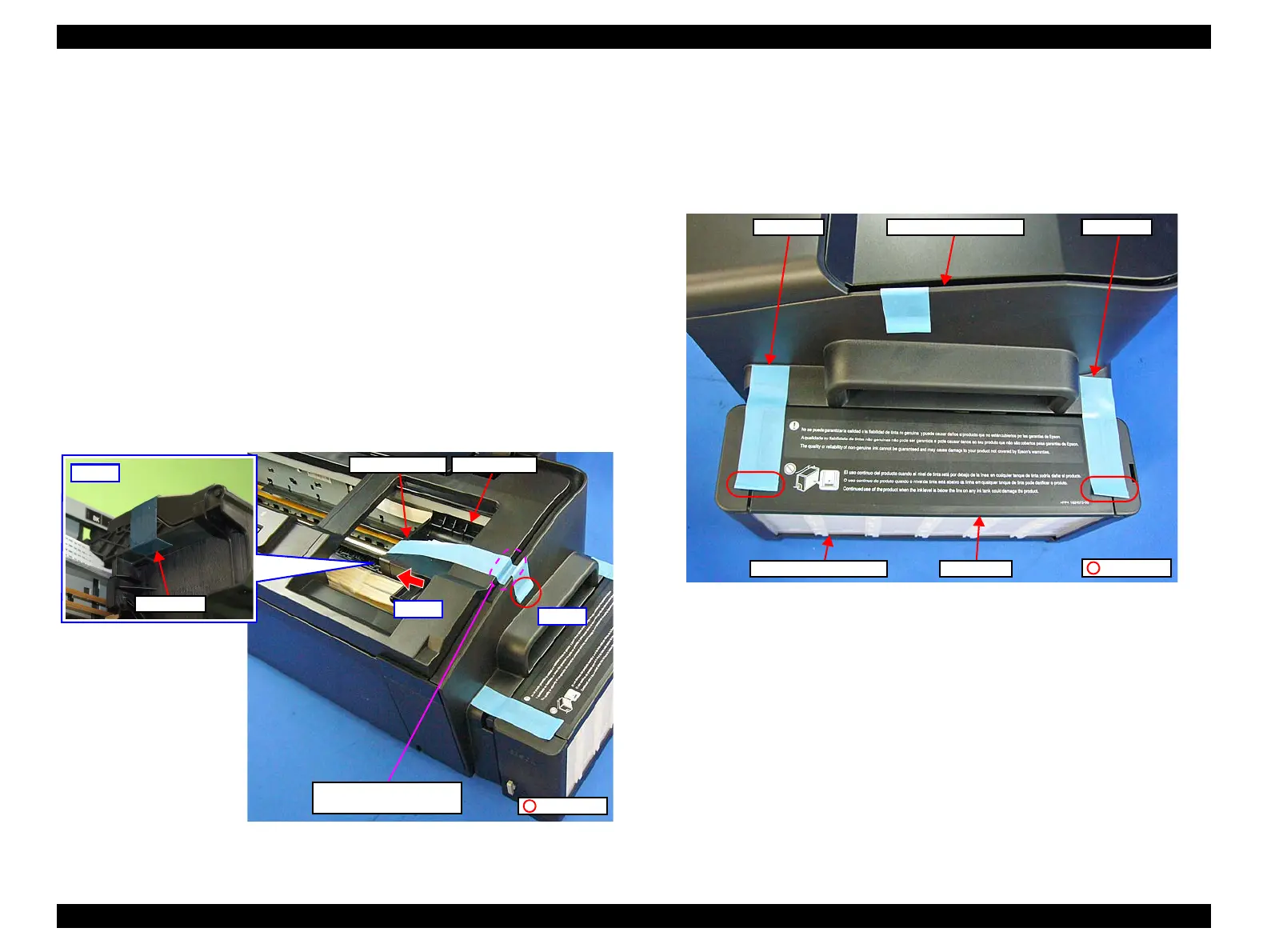

Figure 3-6. Securing the Carriage Unit
Securing the Ink Tank
Prepare two pieces of strong tape (length: 90
±
2 mm,
width: 22 mm
).
1. Install the Ink Supply Tank Assy to the printer.
2. Secure the Decoration Plate Right, Ink Supply Tank Assy, and Top Cover
with strong tape (x2).
Figure 3-7. Securing the Ink Supply Tank Assy
Folded end
Step4
Attach the tape on the
housing to leave any gap.
Step3
Carriage UnitAdapter Cover
Folded end
Ink Supply Tank Assy Top Cover
Decoration Plate RightStrong tape Strong tape
To Next Page
