Epson L1800 Service Manual

L1800 Revision A
Disassembly And Assembly Overview 39
Confidential
5. Close the choke valve, then connect the tube connected with the injector to the
Ink Supply Tank Tube.
6. Open the choke valve again, and suck up the remaining ink in the Ink Supply
Tank into the injector.

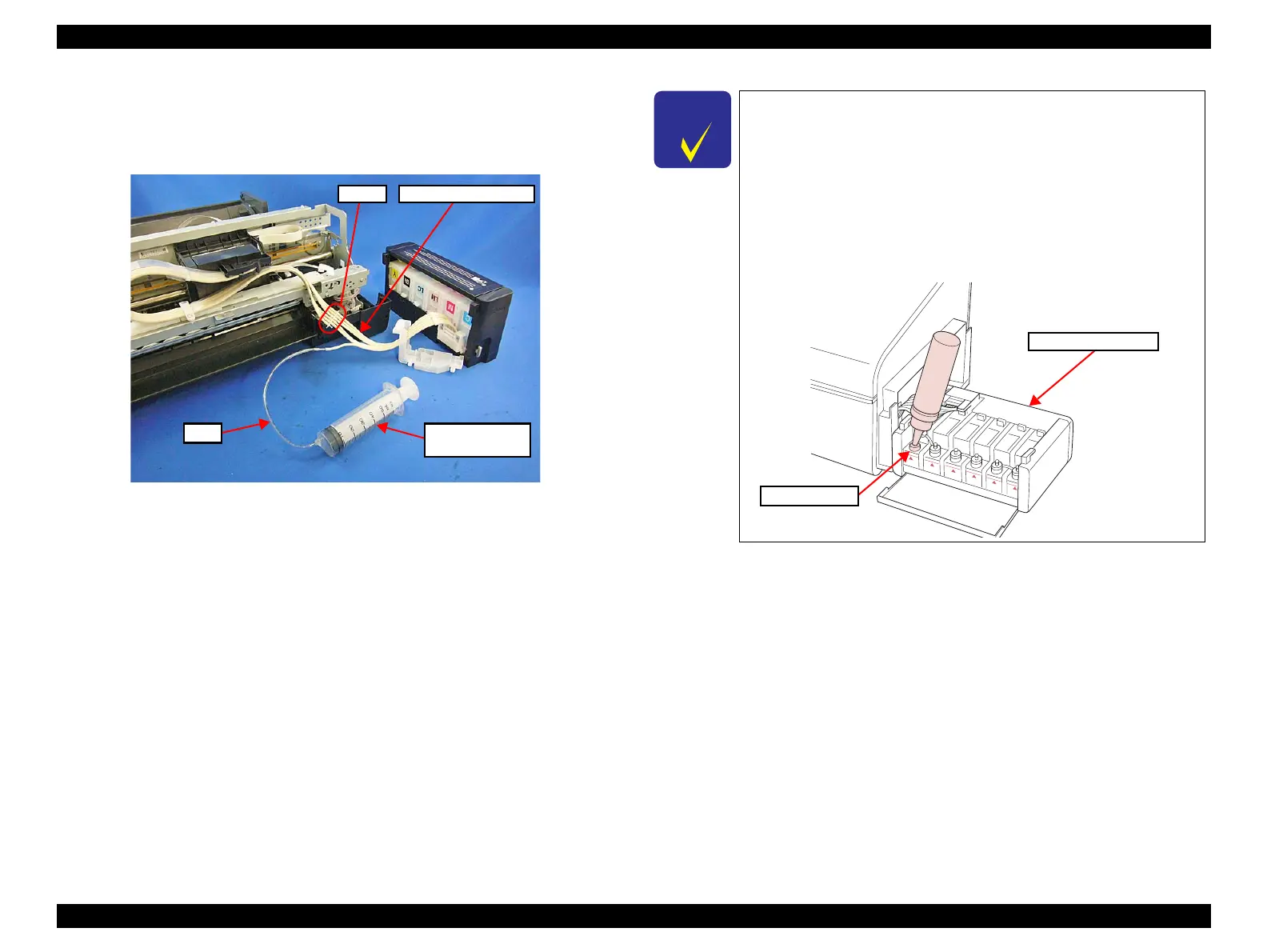

Figure 3-5. Discharging Ink (2)
7. Repeat Step 3 to Step 7 for all ink tanks to discharge all ink in the Ink Supply
Tank.
Injector
(tip of
 3.2 mm)
Tube
Joint Ink Supply Tank Tube
C H E C K
P O I N T
 It is recommended that the ink in the Ink Supply Tank should
be discharged completely before proceeding to disassembling/
reassembling.
 After all the reassembling work is complete, the discharged ink
of each color should be refilled back to the Ink Supply Tank
before performing the adjustment. Confirm the colors
indicated on the film of the Ink Supply Tank so as not to
mistake them, and make sure to refill each ink back to the
correct tank from the corresponding ink supply hole.
Ink supply hole
Ink Supply Tank Assy

Epson L1800 Specifications

General

Style	Inkjet
Color	Black
Control Panel	-
Noise Level
Interface Connectors	10/100/1000BaseTX
Wireless Connectivity	Wireless LAN/WiFi Direct
Apple Macintosh OS X 10.5 or later; Linux	Windows 7
Mac OS® X 10.6.8 – 10.10.x8	Windows 7
MPT: Min. A6R - Max. A4R (Legal)	DL (Envelope)
MPT: Min. A6R – Max. A4 (Legal)	5 in x 7 in
Duplex Printing: A4 / Letter / Oficio / Folio / Legal / JIS B5 / ISO B5 / Executive / Statement	C6 (Envelope)
Manual Feed Slot: Letter	A6
Functions	Scan
Features	Creative Print mobile app
Printing Method	Monochrome
Nozzles	-
Print Resolution	Up to 5760 x 1440 dpi (mono) / up to 5760 x 1440 dpi (color)
Scanner Type	-
Scan Formats	-
Copy Modes	-
Max Copies	-
Copy Size	-
Copy Scale	-
Power Consumption	6 Watt (Ready)
Battery Life	-
Battery Capacity	-

Weight and Dimensions

Depth	322 mm
Height	215 mm
Width	705 mm
Net Weight	24.62 kg
