Align the four tabs and guide pin on the PE Sensor Holder with the
positioning holes on the Main Frame correctly so that there is no
gap between the PE Sensor Holder and the Main Frame.

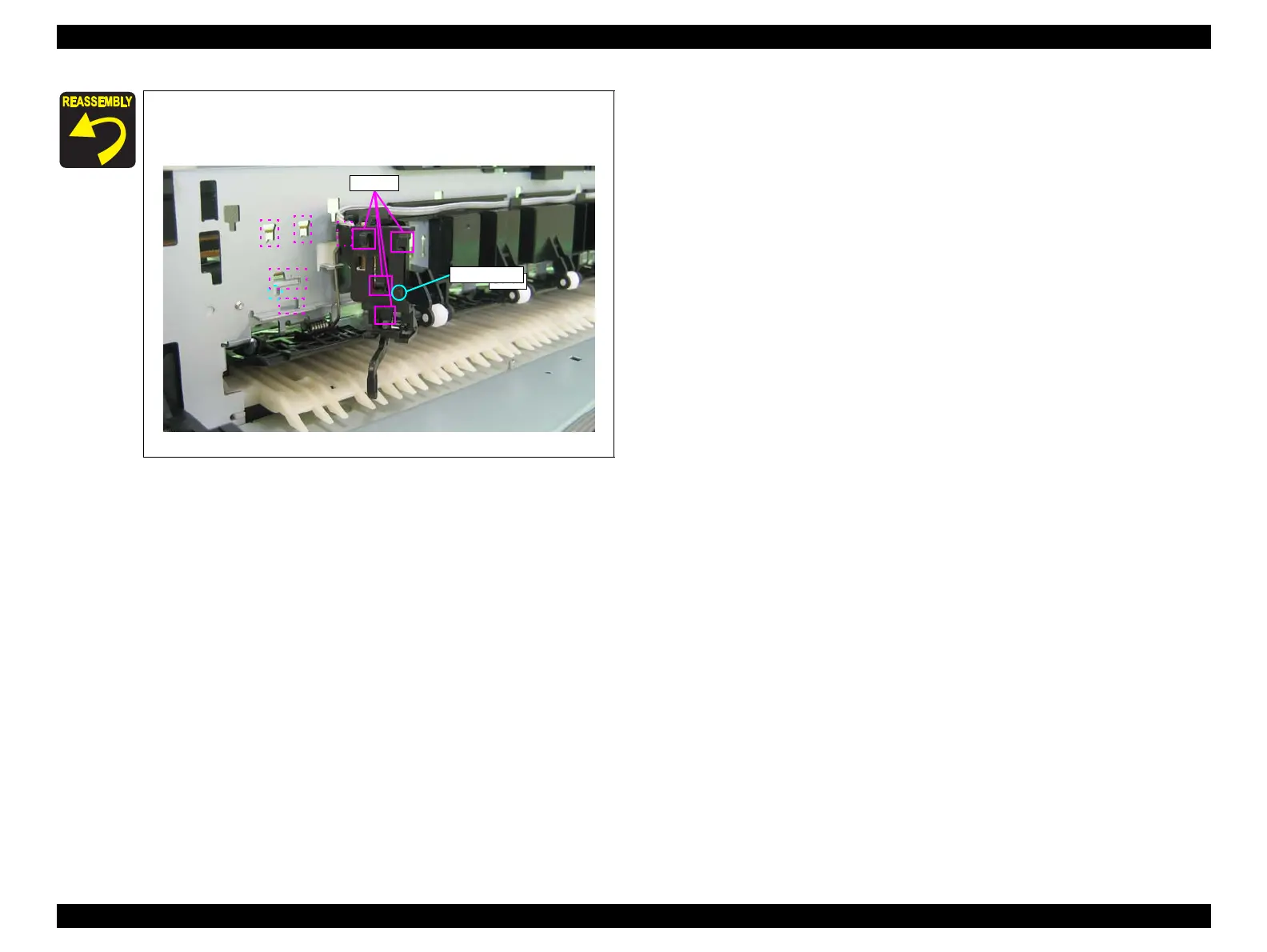

Figure 3-157. Reinstalling the PE Sensor
Guide
Guide pin
Tabs
