Epson L1800 Service Manual

L1800 Revision A
Disassembly And Assembly Disassembling the Printer Mechanism 75
Confidential
5. Release the two tabs that secure the ASF Sensor Flag from the inside of the ASF
Assy, and remove the ASF Sensor Flag from the LD Roller Shaft.

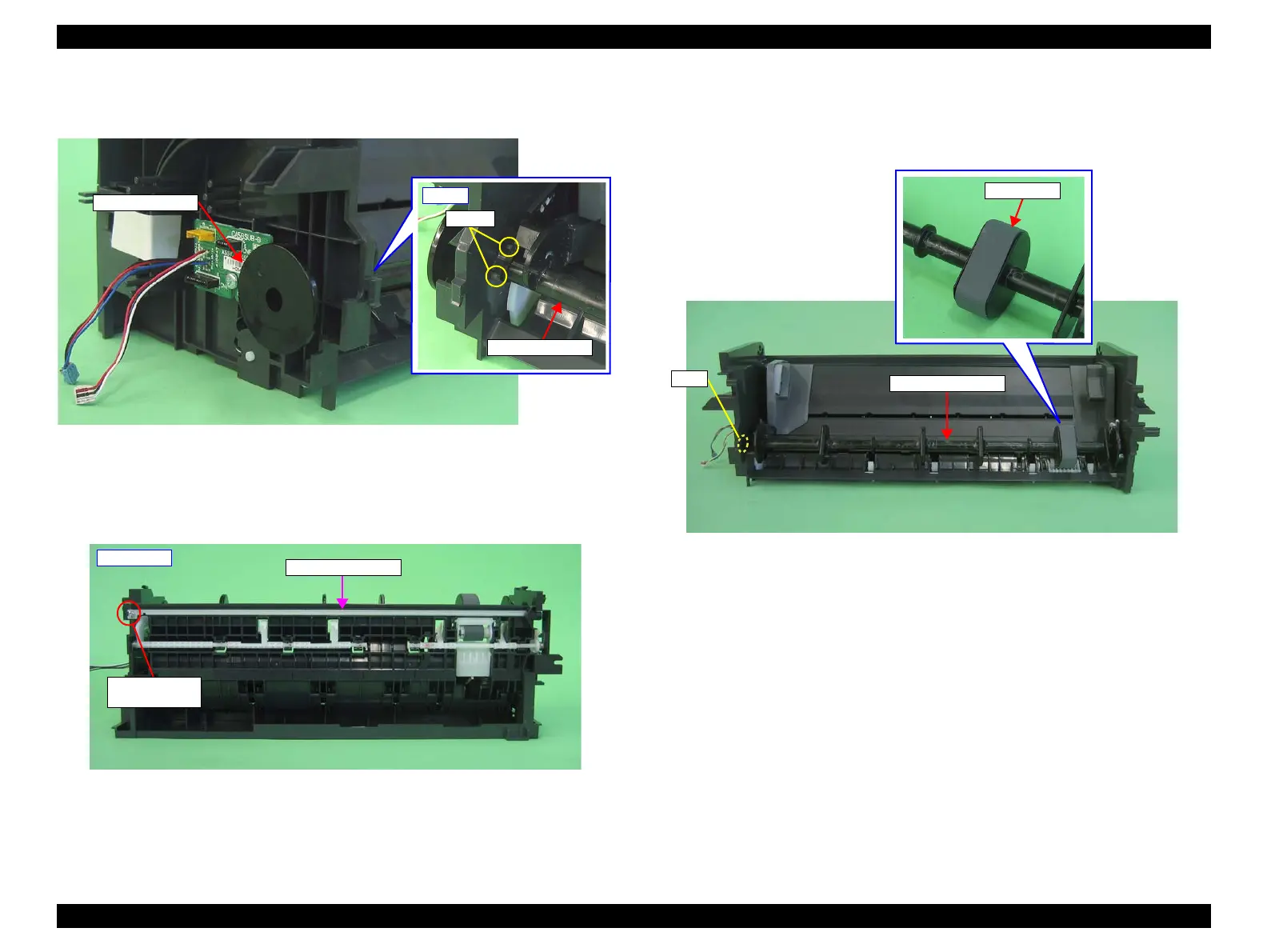

Figure 3-90. Removing the LD Roller (2)
6. Remove the C.B.P. M3 x 8 screw that secure the ASF Support Plate from the
bottom side of the ASF Assy, and remove the ASF Support Plate from the ASF
Assy.
Figure 3-91. Removing the LD Roller (3)
7. While bending the LD Roller Shaft slightly, detach it from the shaft hole on the
left side of the ASF Assy, and remove the LD Roller Shaft.
8. Remove the LD Roller from the LD Roller Shaft.
Figure 3-92. Removing the LD Roller (4)
Inside
LD Roller Shaft
Tabs
ASF Sensor Flag
ASF Support Plate
4) C.B.P. M3x8
(6±1 kgf.cm)
Bottom side
LD Roller
LD Roller Shaft
Hole
