Epson L1800 Service Manual

L1800 Revision A
Disassembly And Assembly Disassembling the Printer Mechanism 59
Confidential

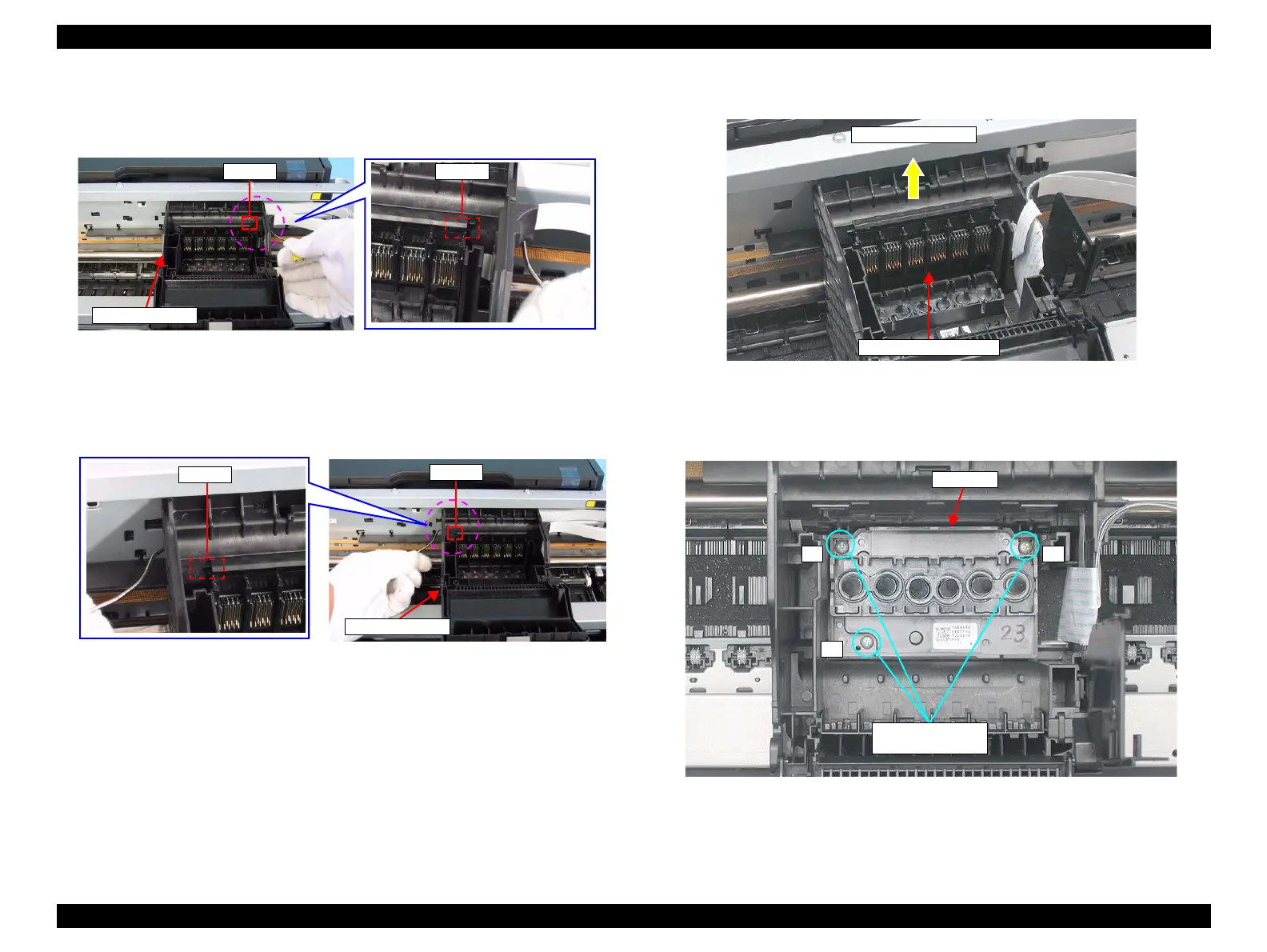

5. Using the special tool (refer to Method for making Adapter Guide Holder removal
tool (p42)), disengage tab A of the Adapter Guide Holder on the right rear side of
the Carriage Unit.
Figure 3-47. Removing the Adapter Guide Holder (2)
6. Using the special tool (refer to Method for making Adapter Guide Holder removal
tool (p42)), disengage tab B of the Adapter Guide Holder on the right rear side of
the Carriage Unit.
Figure 3-48. Removing the Adapter Guide Holder (3)
7. Lift the Adapter Guide Holder and remove it.
Figure 3-49. Removing the Adapter Guide Holder (4)
8. Remove the three C.B.P. M2.6 x 8 screws that secure the Printhead using the
Phillips Screw Driver, No.1, and vertically lift the Printhead to remove it.
Figure 3-50. Removing the Printhead (1)
Tab A
Carriage Unit
Tab A
Tab B
Carriage Unit
Tab B
Removal Direction
Adapter Guide Holder
7) C.B.P. M2.6x8
(3.5±0.5 kgf.cm)
1
2
3
Printhead
