Epson L1800 Service Manual

L1800 Revision A
Troubleshooting Overview 9
Confidential

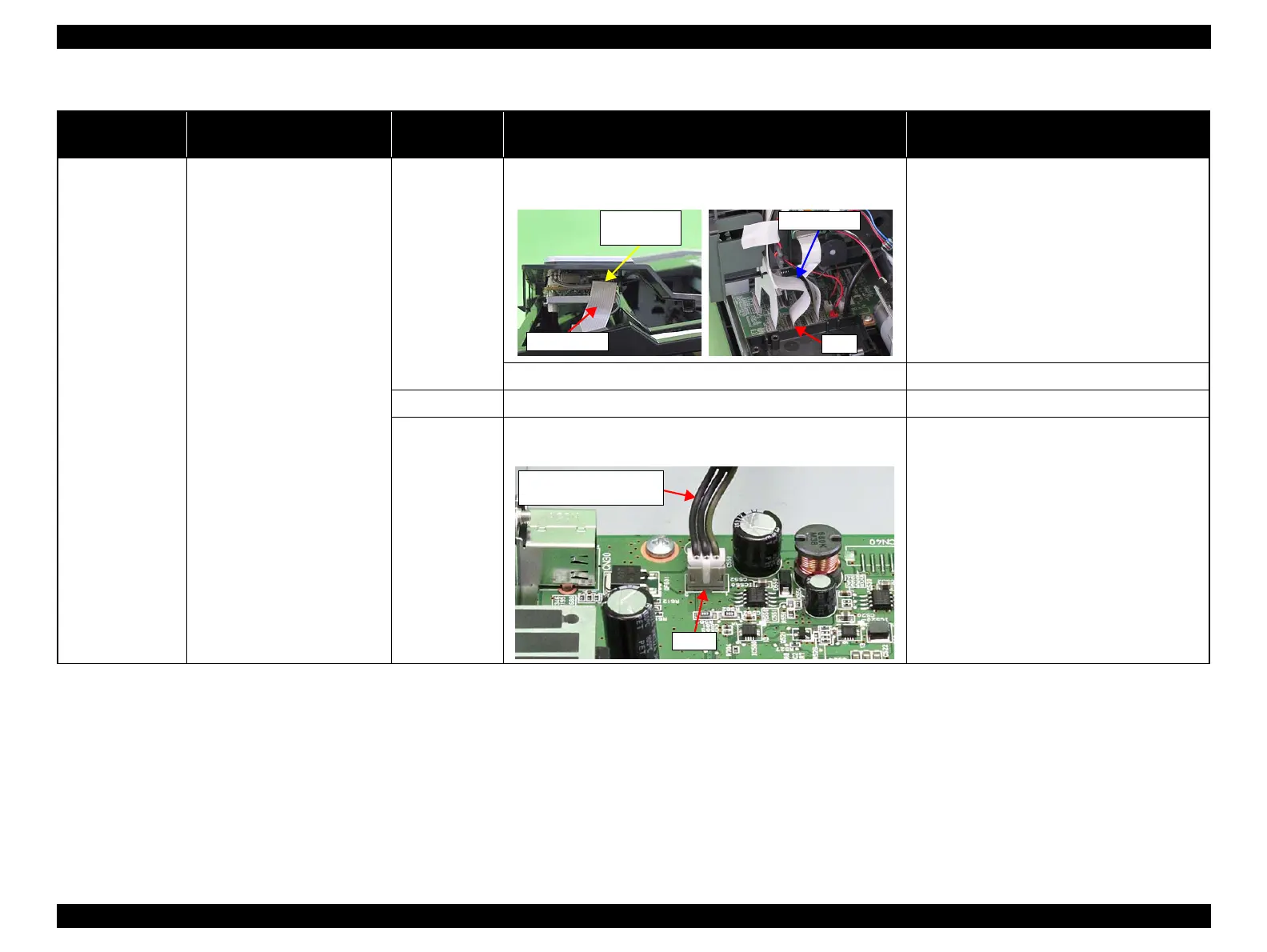

Table 2-2. Troubleshooting of Communication Error
Occurrence
Timing
Phenomenon Detail
Faulty Part/
Part Name
Check Point Remedy
At power-on The printer does not operate at all. Panel FFC 1. Check that the Panel FFC is connected to the Panel Board
connector and Main Board connector CN4.
1. Connect the Panel FFC to the Panel Board and
Main Board connectors.
2. Check the Panel FFC for damages. 2. Replace the Panel FFC with a new one.
Panel Board 1. Check the Panel Board for damages. 1. Replace the Panel Board with a new one.
Power Supply
Board
1. Check that the connector cable of the Power Supply Board is
connected to the Main Board connector CN60.
1. Connect the connector cable of the Power
Supply Board to the Main Board connector
CN60.
Panel FFC
CN4
Panel Board
connector
Panel FFC
Connector cable of the
Power Supply Board
CN60

Epson L1800 Specifications

General

Style	Inkjet
Color	Black
Control Panel	-
Noise Level
Interface Connectors	10/100/1000BaseTX
Wireless Connectivity	Wireless LAN/WiFi Direct
Apple Macintosh OS X 10.5 or later; Linux	Windows 7
Mac OS® X 10.6.8 – 10.10.x8	Windows 7
MPT: Min. A6R - Max. A4R (Legal)	DL (Envelope)
MPT: Min. A6R – Max. A4 (Legal)	5 in x 7 in
Duplex Printing: A4 / Letter / Oficio / Folio / Legal / JIS B5 / ISO B5 / Executive / Statement	C6 (Envelope)
Manual Feed Slot: Letter	A6
Functions	Scan
Features	Creative Print mobile app
Printing Method	Monochrome
Nozzles	-
Print Resolution	Up to 5760 x 1440 dpi (mono) / up to 5760 x 1440 dpi (color)
Scanner Type	-
Scan Formats	-
Copy Modes	-
Max Copies	-
Copy Size	-
Copy Scale	-
Power Consumption	6 Watt (Ready)
Battery Life	-
Battery Capacity	-

Weight and Dimensions

Depth	322 mm
Height	215 mm
Width	705 mm
Net Weight	24.62 kg
