L1800 Revision A
Troubleshooting Overview 13
Confidential

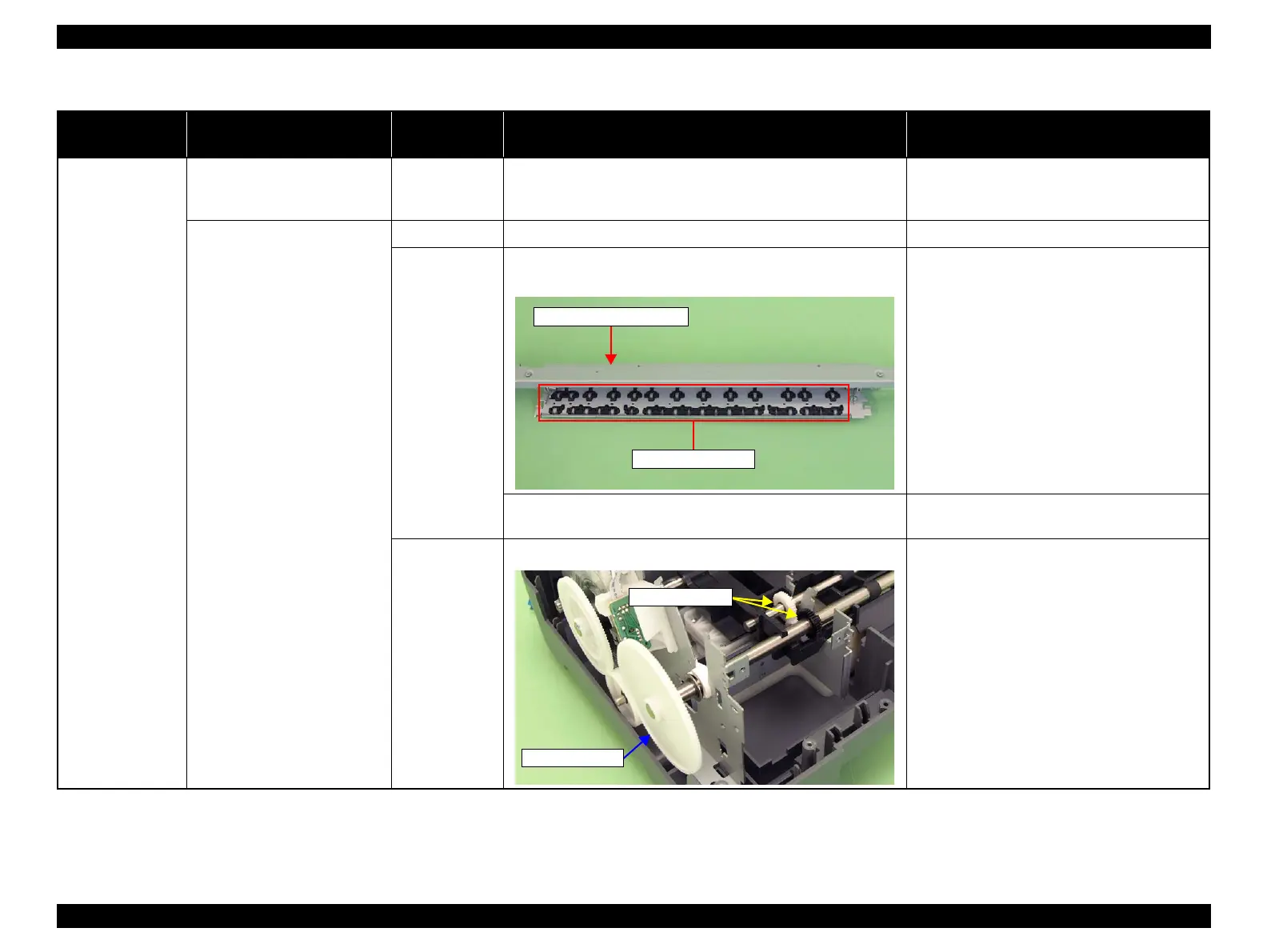

Table 2-4. Troubleshooting of Paper Jam Error
Occurrence
Timing
Phenomenon Detail
Faulty Part/
Part Name
Check Point Remedy
At operation At the time of paper ejection, the
PF Roller advances the paper but
cannot eject it completely.
– 1. Check that the size of the fed paper is not larger than that of the
paper specified by the driver.
1. Tell the user that the paper size specified by the
driver is not available for the printer.
Paper is not ejected completely
and causes a jam near the Paper
Eject Frame.
ASF Assy. 1. Check that the paper is fed along the Right Edge Guide. 1. Feed the paper along the Right Edge Guide.
Paper EJ Frame
Assy.
1. Check that the Star Wheel Units have not come off the Paper EJ
Frame Assy.
1. Securely install the Star Wheel Units to the
Paper EJ Frame Assy.
2. Check the Paper EJ Frame Assy for deformation or damages. 2. Replace the Paper EJ Frame Assy with a new
one.
Spur Gear 68
Spur Gear 16; B
Paper EJ Roller
Assy.(front/rear)
1. Check the Spur Gear 68 or Spur Gear 16; B for damages. 1. Replace the Front (or Rear) Paper EJ Roller
Assy with a new one.
Paper EJ Frame Assy.
Star Wheel Units
Spur Gear 68
Spur Gear 16; B
To Next Page
