Epson L1800 Service Manual

L1800 Revision A
Troubleshooting Overview 22
Confidential
At power-on At power-on, the PF Roller
rotates fast about a half turn.
PF Scale 1. Check that the PF Scale is inserted in the slit of the PF Encoder
Sensor.
1. Install the PF Scale in the slit of the PF
Encoder Sensor correctly.
2. Check the PF Scale for damages and dirt. 2. Replace the PF Scale with a new one.
During printing After receiving a print data, an
error is displayed on the LED
and STM3.
Head FFC
Sensor FFC
1. Check that the Head FFC and the Sensor FFC are securely
connected to the Main Board connectors CN9, CN12, CN13,
and CN14.
1. Connect the Head FFC and the Sensor FFC to
the Main Board connectors CN9, CN12,
CN13, and CN14.

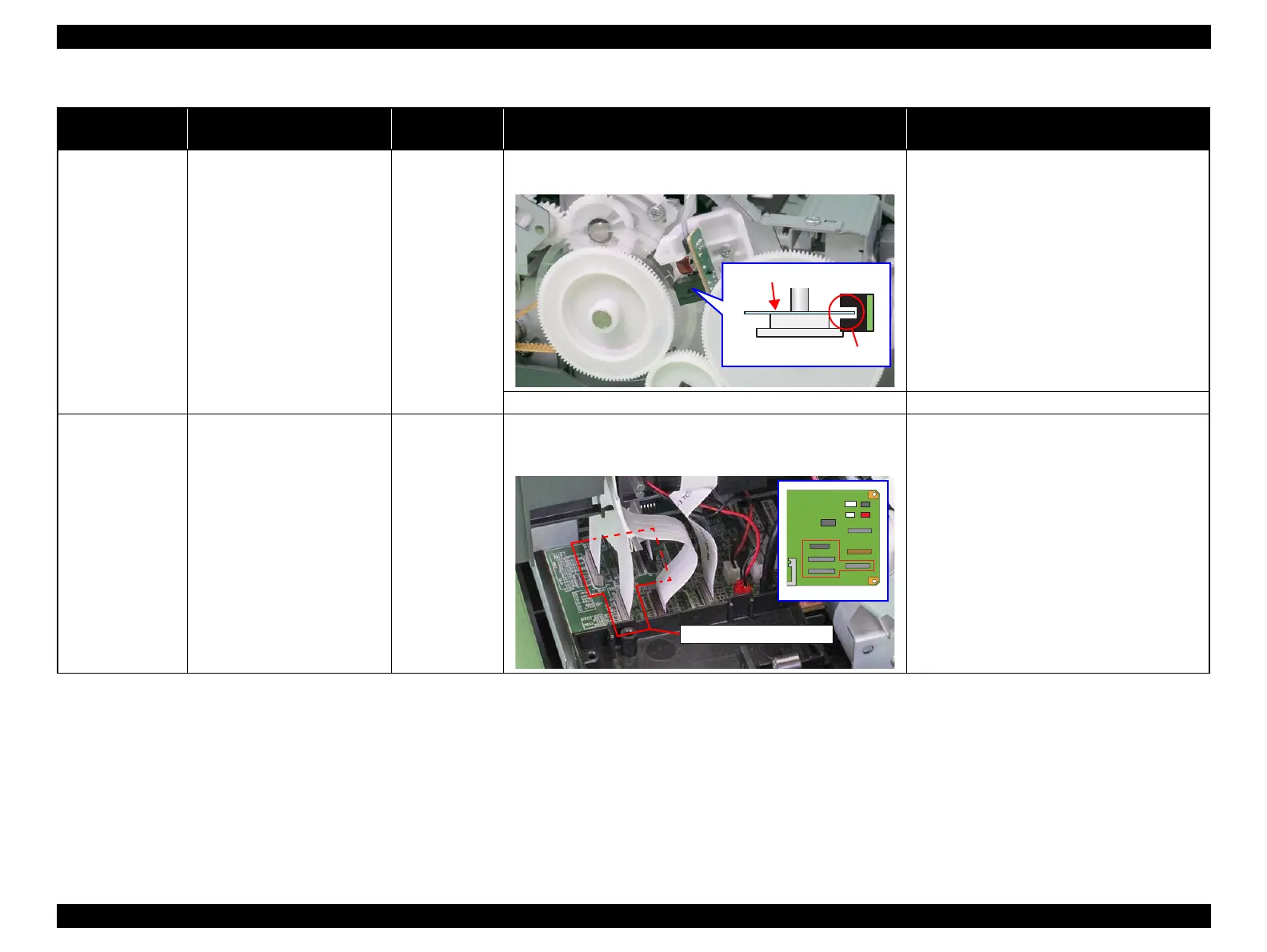

Table 2-7. Troubleshooting of Fatal Error
Occurrence
Timing
Phenomenon Detail
Faulty Part/
Part Name
Check Point Remedy
Slit
PF Scale
CN9, CN12, CN13, CN14

Epson L1800 Specifications

General

Style	Inkjet
Color	Black
Control Panel	-
Noise Level
Interface Connectors	10/100/1000BaseTX
Wireless Connectivity	Wireless LAN/WiFi Direct
Apple Macintosh OS X 10.5 or later; Linux	Windows 7
Mac OS® X 10.6.8 – 10.10.x8	Windows 7
MPT: Min. A6R - Max. A4R (Legal)	DL (Envelope)
MPT: Min. A6R – Max. A4 (Legal)	5 in x 7 in
Duplex Printing: A4 / Letter / Oficio / Folio / Legal / JIS B5 / ISO B5 / Executive / Statement	C6 (Envelope)
Manual Feed Slot: Letter	A6
Functions	Scan
Features	Creative Print mobile app
Printing Method	Monochrome
Nozzles	-
Print Resolution	Up to 5760 x 1440 dpi (mono) / up to 5760 x 1440 dpi (color)
Scanner Type	-
Scan Formats	-
Copy Modes	-
Max Copies	-
Copy Size	-
Copy Scale	-
Power Consumption	6 Watt (Ready)
Battery Life	-
Battery Capacity	-

Weight and Dimensions

Depth	322 mm
Height	215 mm
Width	705 mm
Net Weight	24.62 kg
