Epson L1800 Service Manual

L1800 Revision A
Disassembly And Assembly Disassembling the Printer Mechanism 77
Confidential
4. Detach the extension spring from the tab of the Retard Roller Assy, and remove
the Retard Roller Assy from the ASF Assy.

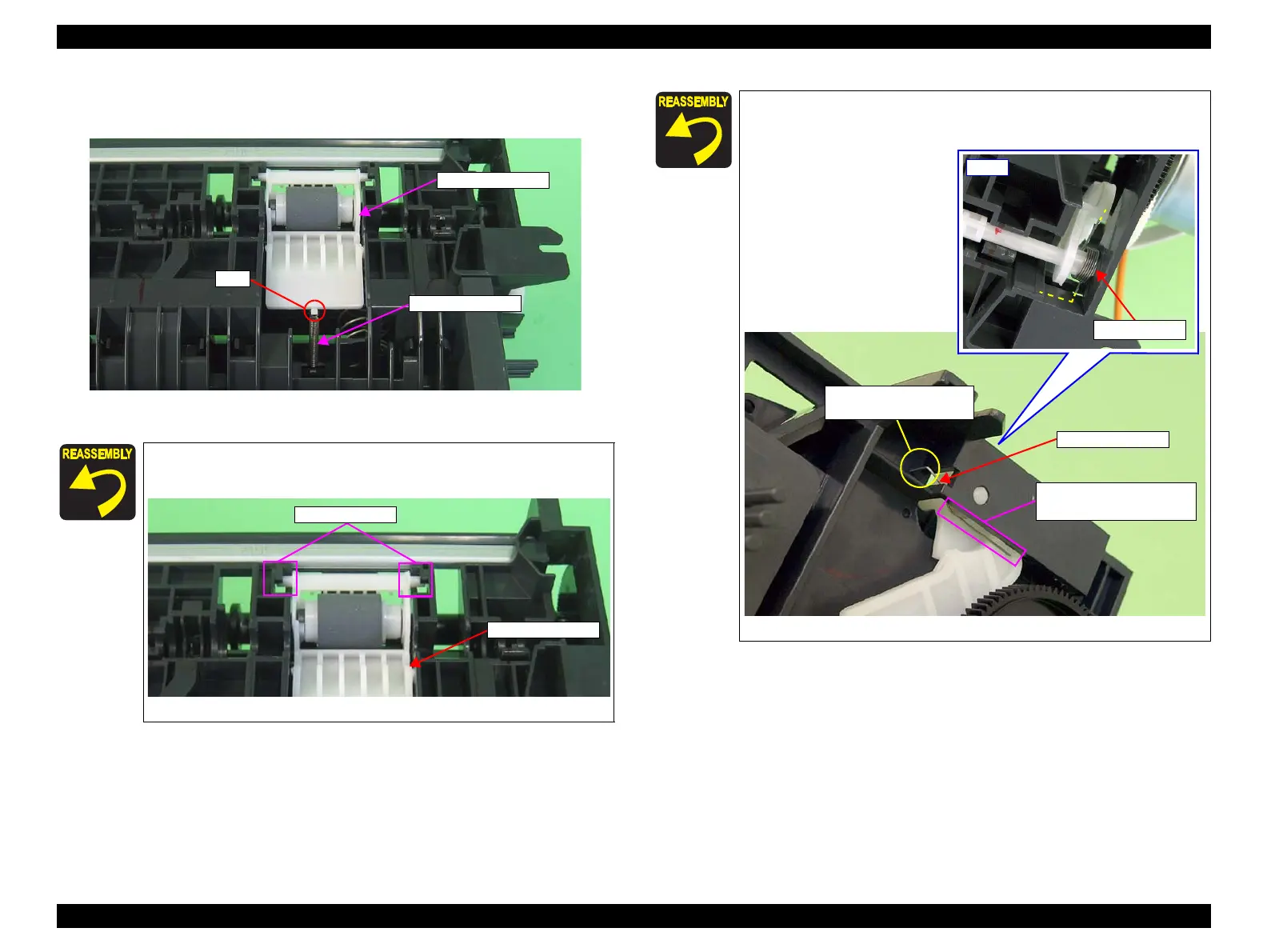

Figure 3-96. Removing the Retard Roller Assy (2)
 Insert the two shafts of the Retard Roller Assy to the two holes
of the ASF Assy.
Figure 3-97. Reinstalling the Retard Roller Assy
Extension spring
Retard Roller Assy
Tab
Retard Roller Assy
Shafts and Holes
 See below for installing the torsion spring of the Paper Back
Lever Right.
Figure 3-98. Reinstalling the Torsion Spring
Put the spring leg through
the hole of ASF Assy.
Attach the spring leg on the
Paper Back Lever Right.
Torsion spring
Inside
Torsion spring
