Epson L1800 Service Manual

L1800 Revision A
Disassembly And Assembly Disassembling the Printer Mechanism 86
Confidential
8. Return the Carriage Unit to its home position.
9. Remove the C.B.S. M3 x 6 screw that secure the Left Front Frame.
10. Release the tab that secures the Front Paper Guide from the Main Frame and slide
the Front Paper Guide to the left, and turn it until the front side faces up to remove
the Front Paper Guide together with the Paper EJ Roller.

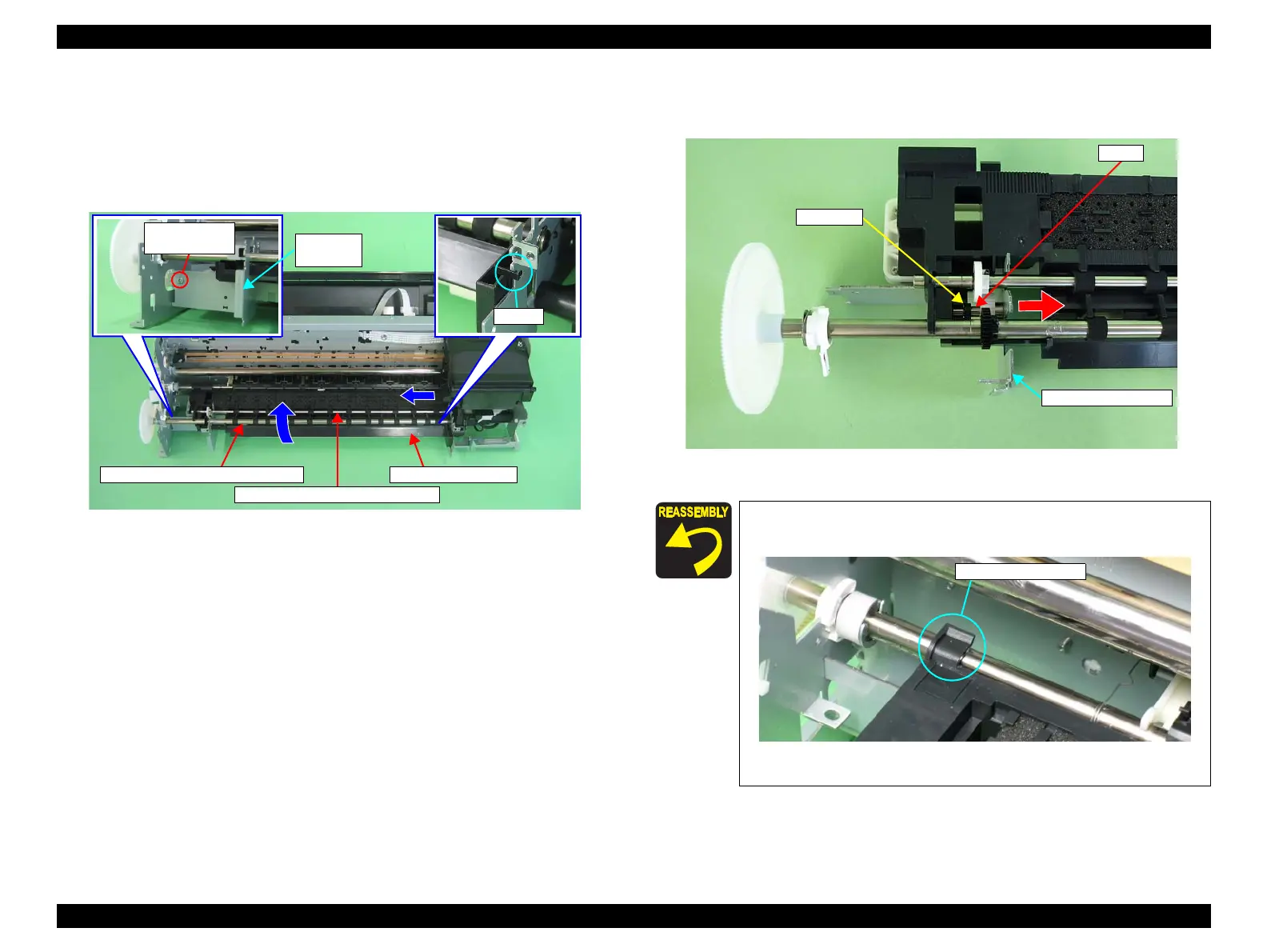

Figure 3-121. Removing the Front Paper Guide/Paper EJ Rollers (1)
11. Pull out the Shaft of the Left Front Frame from the bushing of the Front Paper
Guide and remove the Left Front Frame.
Figure 3-122. Removing the Front Paper Guide/Paper EJ Rollers (2)
Tab
Paper EJ Rollers (Front side)
Front Paper Guide
Paper EJ Rollers (Back side)
2) C.B.S. M3x6
2) C.B.S. M3x6
(8±1 kgf.cm)
Left Front
Frame
 Align the bushing of the Front Paper Guide with the PF Roller
Shaft.
Figure 3-123. The PF Roller Shaft and the bushing of the Front
Paper Guide
Left Front Frame
Shaft
Bushing
Shaft and bushing
