Epson LX-810

Interface Boards
9. Tilt the upper case backward; then remove it from the printer.

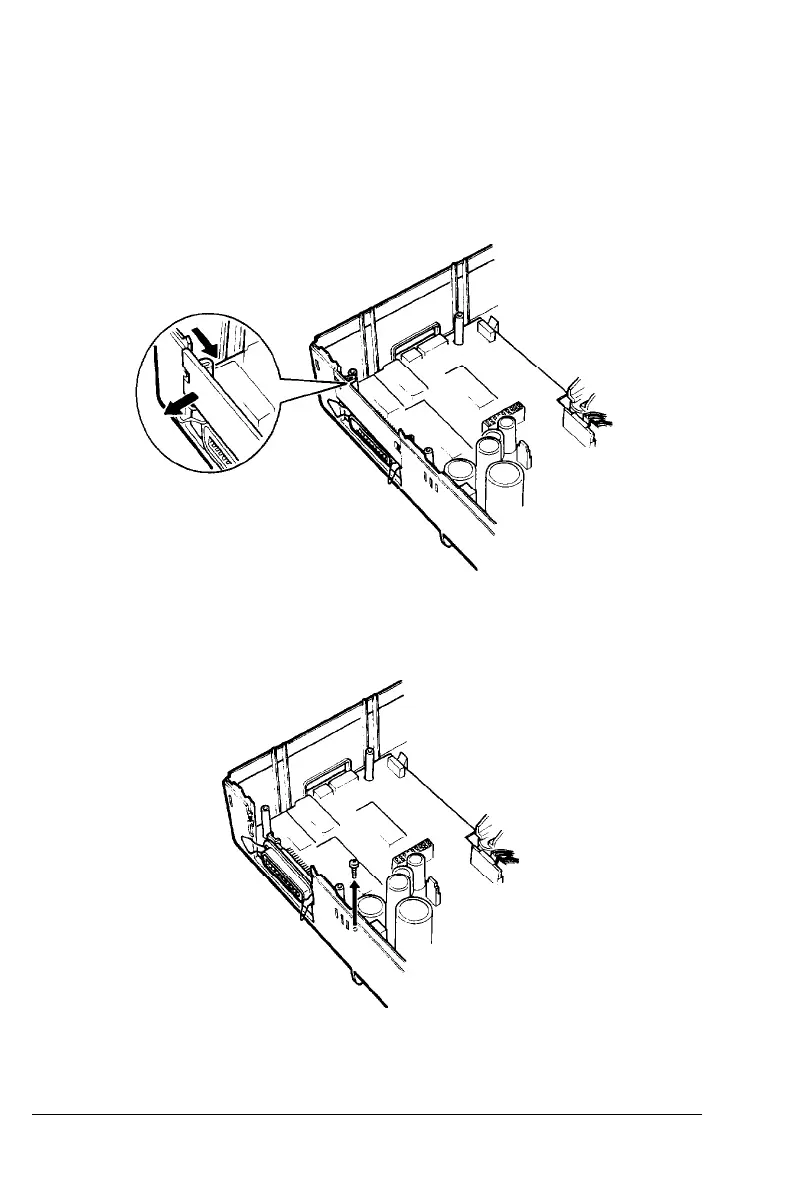

10. Remove the shield plate by pressing in on the plastic clips
located at the back of the plate.
11.
Using a cross-head screwdriver, remove the screw labelled CG
from the main board.
4-20
Using the Printer Options
