Epson LX-810 User Guide

Interface Boards
Installing the board
There are two basic interface board designs, which differ with
respect to how the frame ground (FG) wire is attached. This slight
difference changes the way the boards are installed in the printer,
but does not affect the operation of the interface in any way.
Check below to see which type of interface board you have.

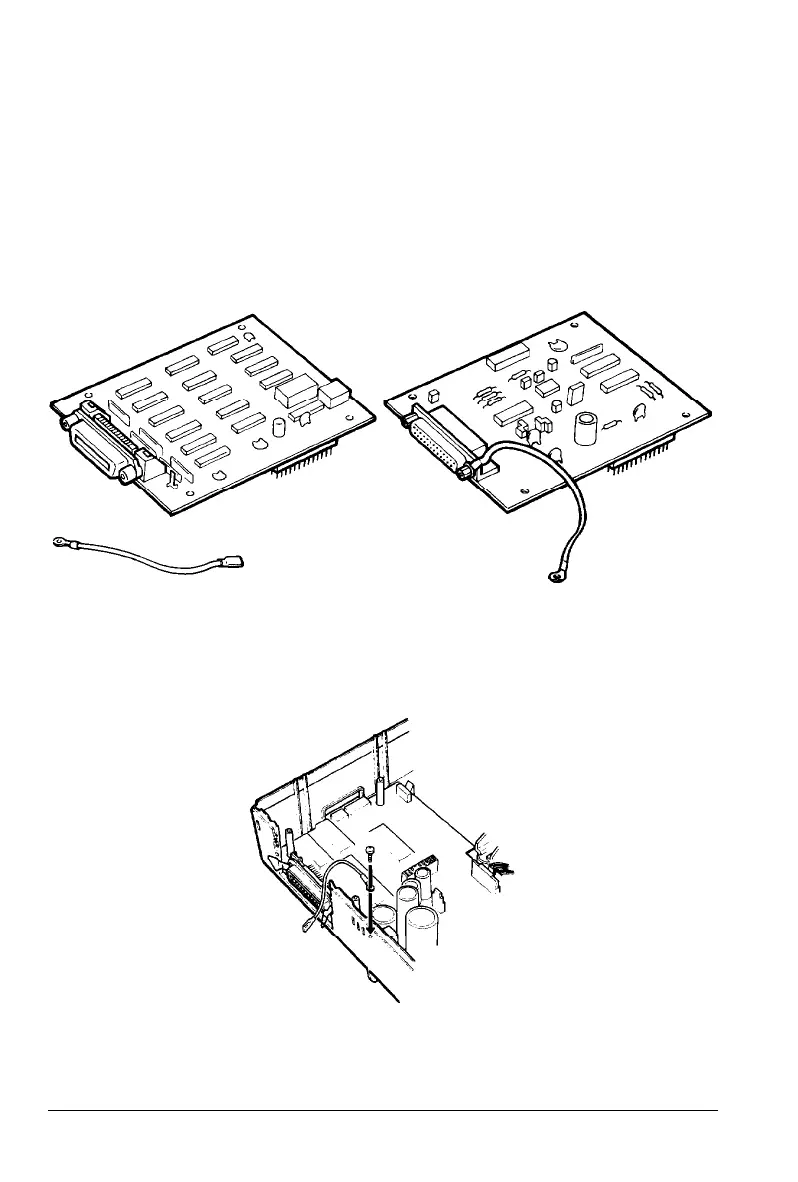

FG wire not attached
FG wire attached
1. Use the CG screw to attach the round end of the FG (frame
ground) wire to the main board.
Using the Printer Options
4-21

Epson LX-810 Specifications

General

Print Method	Impact dot matrix
Number of Pins	9
Character Sets	96 characters (USASCII)
Line Spacing	1/6 inch
Paper Path	Rear
Interface	Centronics parallel
Noise Level	55 dB (A)
