Epson LX-810 User Guide

Interface Boards

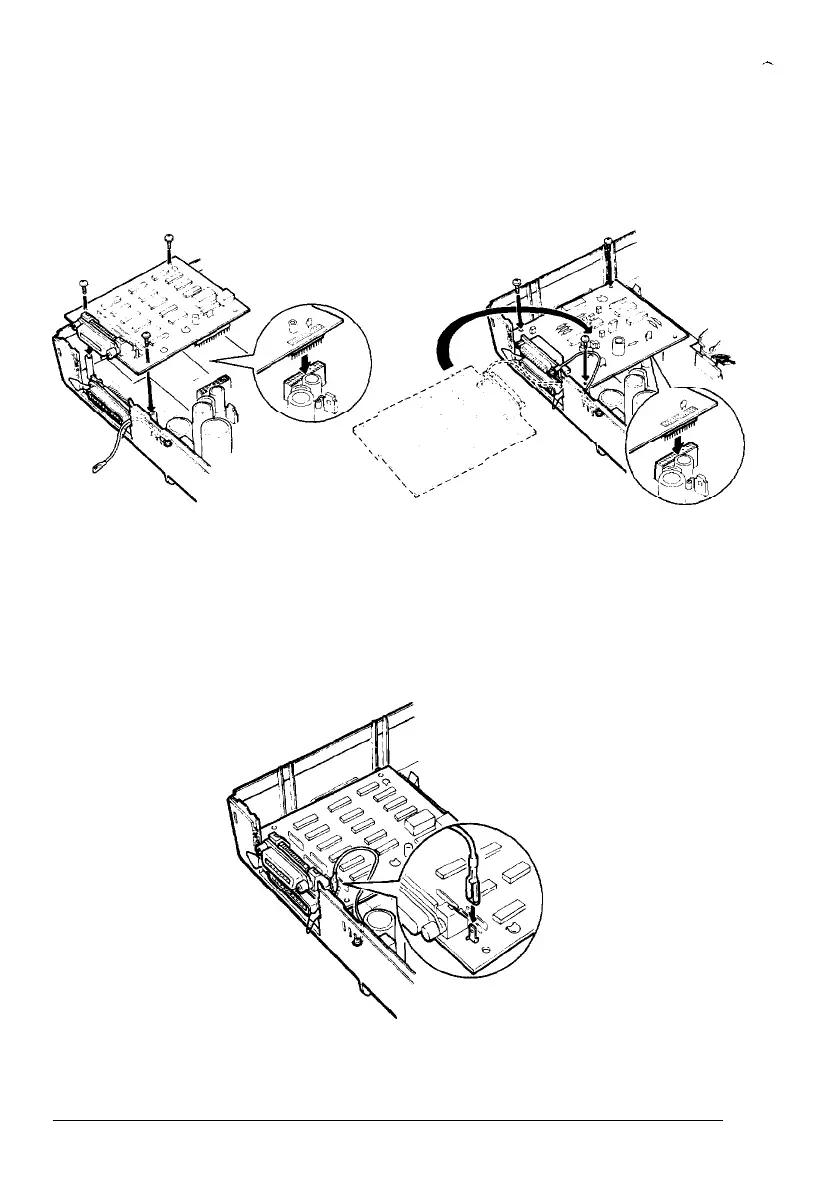

2. Carefully insert the pins on the optional interface board into
the mating connector on the main board; then secure the board
with the three screws provided.
FG wire not attached
FG wire attached
3.
If the FG wire is not attached to the interface board, attach the
plug end of the FG wire onto the FG pin located on top of the
interface board.
4-22
Using the Printer Options

Epson LX-810 Specifications

General

Print Method	Impact dot matrix
Number of Pins	9
Character Sets	96 characters (USASCII)
Line Spacing	1/6 inch
Paper Path	Rear
Interface	Centronics parallel
Noise Level	55 dB (A)
