5. Drive Unit Setup

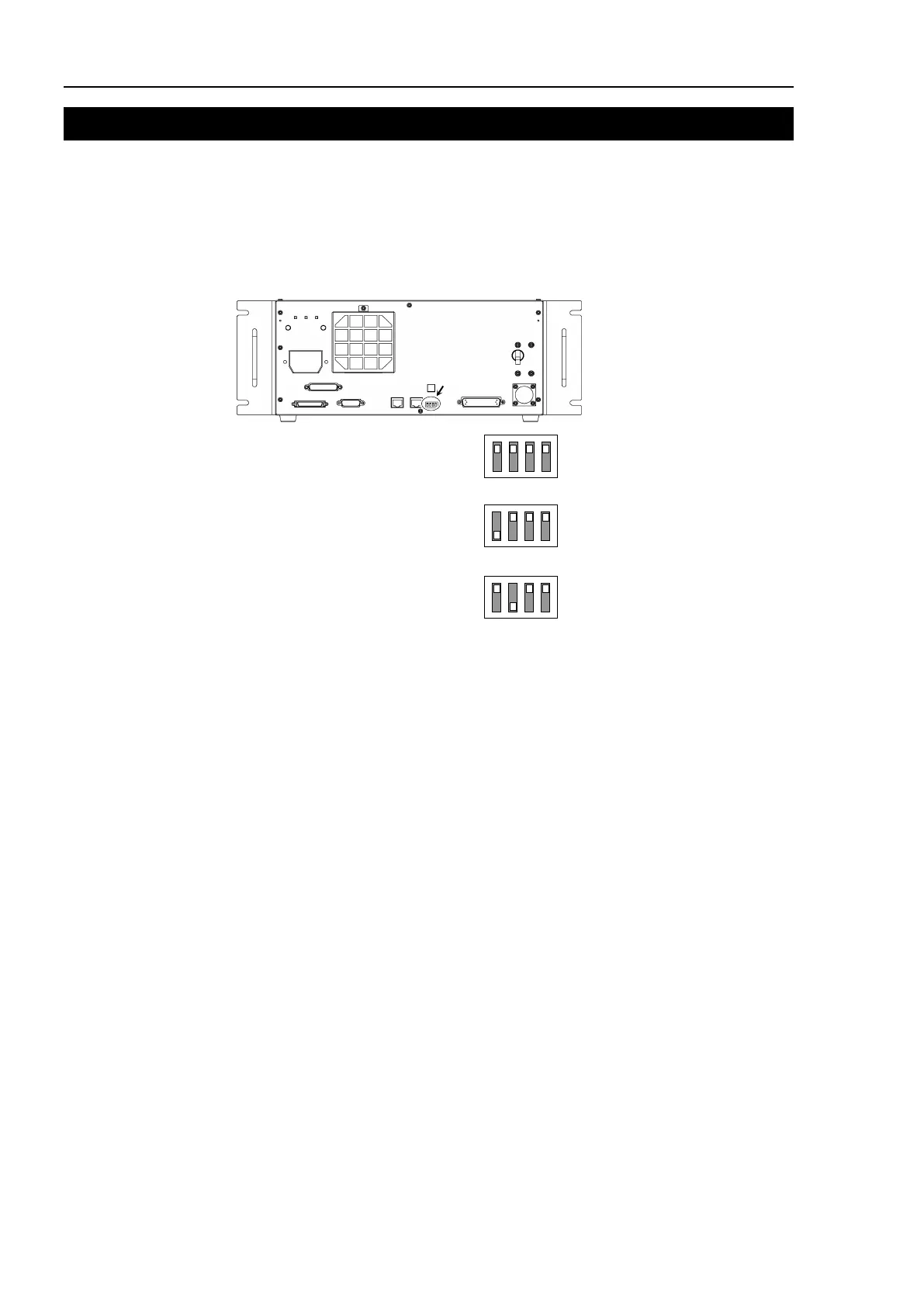

The DIP switch is equipped on the front side to configure 1
st
, 2
nd
, and 3
rd
Drive Unit.
Follow the steps below to set up the Drive Unit.
(
1)
Turn OFF the Drive Unit.
(
2)
Change the DIP
switch.
DIP switch
1
st
Drive Unit
1 2 3 4
ON
OFF
A
LL OFF
2
nd
Drive Unit
1 2 3 4
ON
OFF
ON : 1
OFF : 2, 3, 4
3
rd
Drive Unit
1 2 3 4
ON
OFF
ON : 2
OFF : 1, 3, 4
(
3)
A
ttach the DU number label on Drive Unit.
DU1 : 1
st
Drive Unit
DU2 : 2
nd
Drive Unit
DU3 : 3
rd
Drive Unit
(4)
Plug in
the power connector. Turn ON the Drive Unit.
