140 Appendix
Die Cut Label
Allow 2.8 mm or more from the left and right edges, and 1.5 mm or more from the top and
bottom edges for the printable area.
Printable Area (for die cut label)
Note:
If the margins are not set, the printing may be off the label due to paper misalignment or the part
tolerance.
The label must be positioned in the center of the liner. Numeric values used above table are center values in
designing. Paper width is only for nominal dimension. The values in parenthesis are the maximum value for the paper
tolerance.
Continuous Label Roll Paper
Allow the left and right margins of 2.8 mm or more outside the printable area.
Liner width (mm) (80) (70) (60) (50) (45) (38)
Label (face stock) width
(mm)
76 66 56 46 41 34
Printable area (mm) 70 60 50 40 35 28
Left margin (mm) 2.9 2.9 2.9 2.9 2.9 2.9
Right margin (mm)3.13.13.13.13.13.1
Positioning dot number 17 - 576 17 - 496 17 - 416 17 - 336 17 - 296 17 - 240
Total number of dots 560 480 400 320 280 224

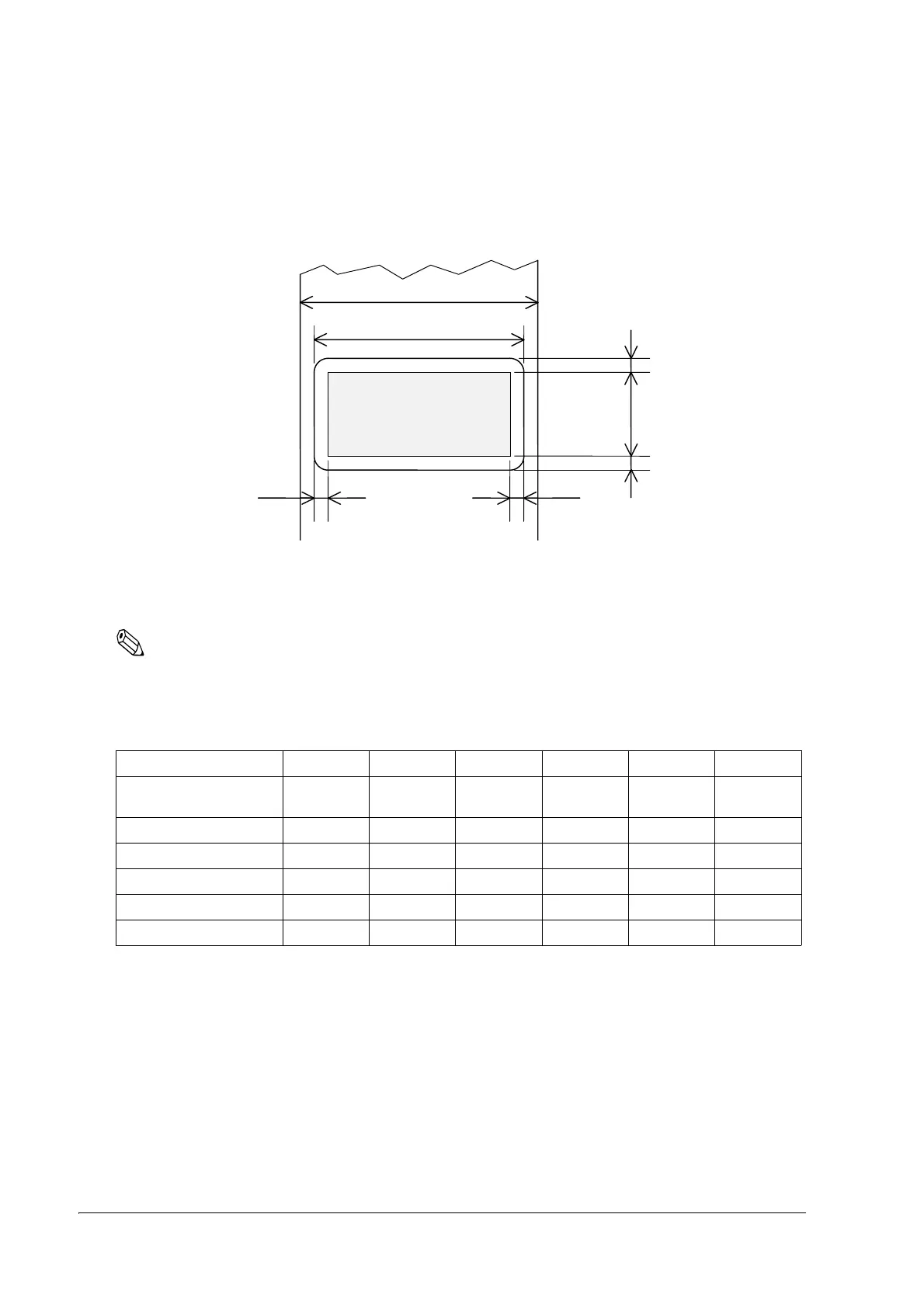

Label (face stock)
1.5 or more
Printable area
2.8 or more
[Units: mm]
2.8 or more
Liner width
1.5 or more
