Epson TM L90 Technical Reference Guide

56 Setup
2.9.2 With the TM-L90 Peeler Model
With the TM-L90 Peeler, the paper loading method differs depending on whether peeling
issuing or continuous issuing is used. They are explained as follows.
Paper setting with peeling issuing
1. Pull the peeler open lever forward, and open the peeler cover.
2. Pull the cover open lever, and open the roll paper cover.
3. If there is a roll paper with little paper remaining inside the printer, take it out.
4. Check that the printer is on. If it is not on, turn it on.

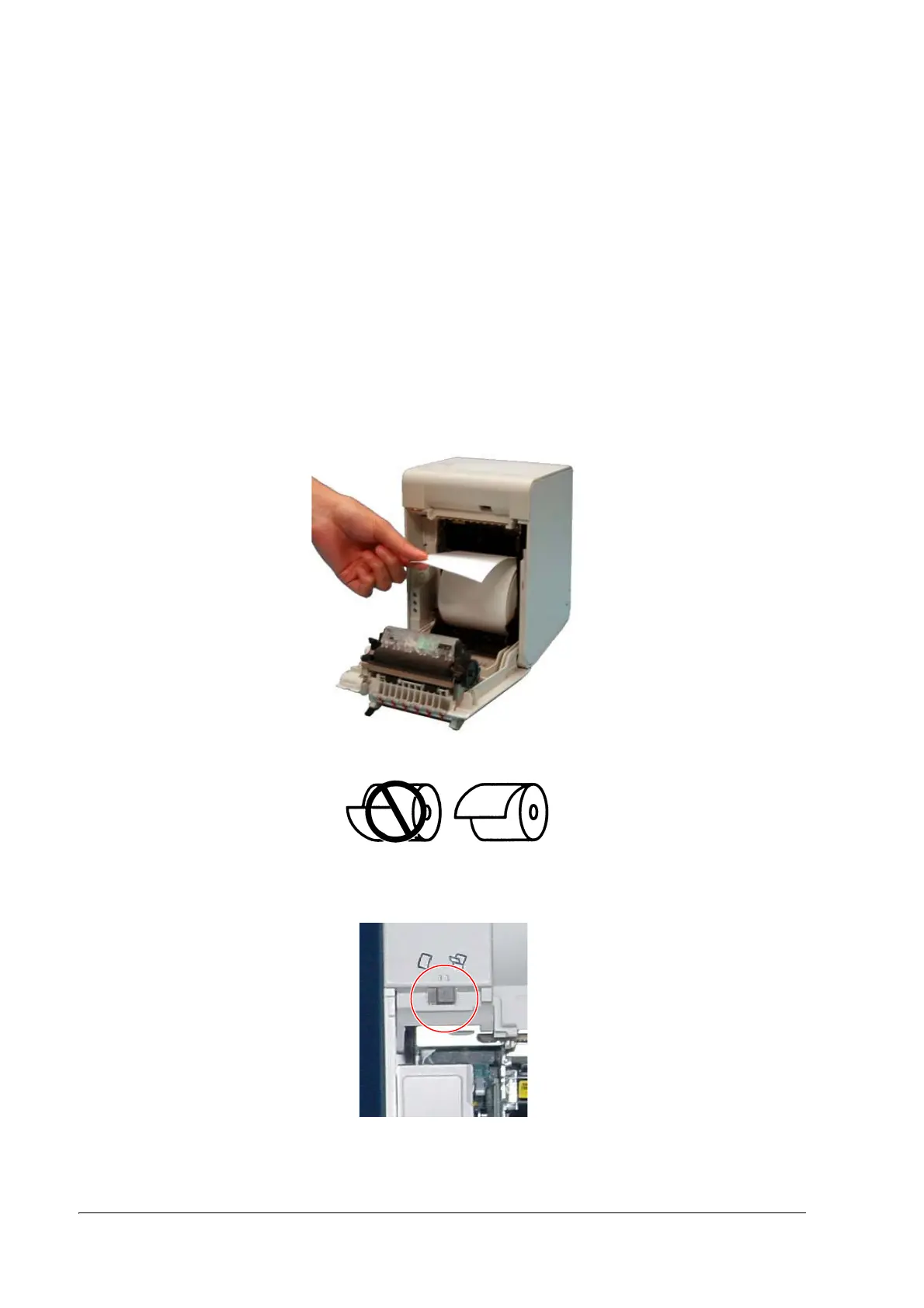

5. Put a new roll paper in the printer. Make sure that the roll paper is oriented as shown in the
following figure.
6. Slide the mode switch to the right (peeling issuing mode).

Epson TM L90 Specifications

General

Maximum resolution	203 x 203 DPI
Maximum roll diameter	90 mm
Supported paper width	37.5, 79 mm
RS-232 ports	1
Standard interfaces	RS-232
Connectivity technology	Wired
Country of origin	China
Dimensions (WxDxH)	140 x 203 x 148 mm
Flash memory	0.384 MB
Operating temperature (T-T)	5 - 45 °C
Pallet width	800 mm
Pallet height	2600 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	112 pc(s)
Quantity per pallet (UK)	168 pc(s)
Quantity per pallet layer	16 pc(s)
Quantity per pallet layer (UK)	24 pc(s)
Package depth	257 mm
Package width	193 mm
Package height	241 mm
Package weight	2560 g
Quantity per pack	1 pc(s)
