Epson TM L90 Technical Reference Guide

Setup 27
TM-L90/TM-L90 Peeler Model Technical Reference Guide
2.3 Adjusting Roll Paper Near-End Detection Position
2.3.1 With TM-L90
Below are three situations when roll paper N.E. detector adjustment is required.
❏ When changing the way of installation. (VerticallyHorizontally)
❏ To adjust the location of detection to suit the diameter of the roll paper core used.
❏ To adjust the amount of remaining paper desired.
Note:
Roll paper centers are manufactured according to various specifications, making it impossible to exactly
detect the remaining amount of paper.

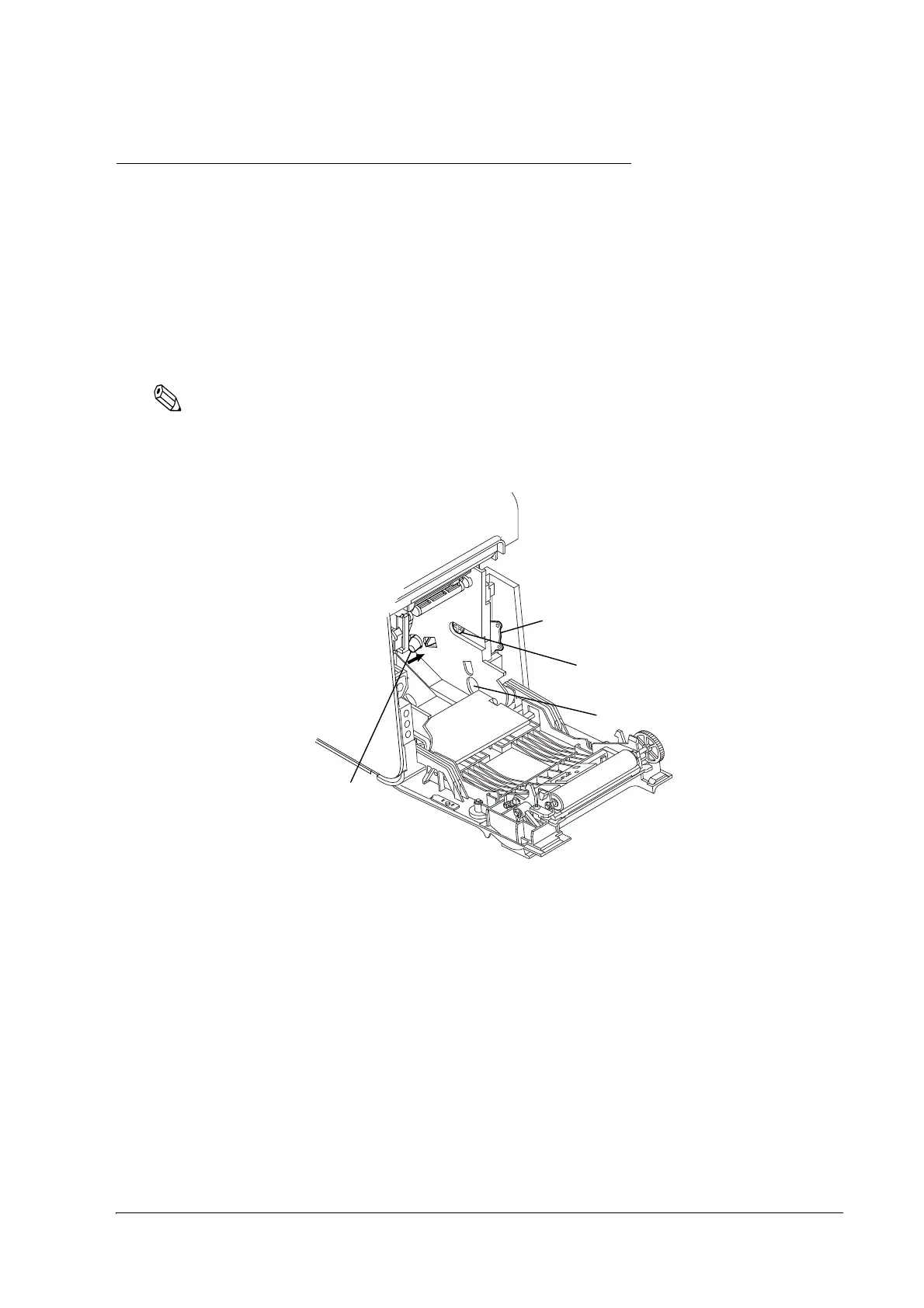

Part names and the locations of N.E. detector components
1. Open the roll paper cover.
2. Remove the roll paper.
Detector adjustment screw
N.E. detector holder
N.E. detector
(location when
installing horizontally)
N.E. detector window
when installing vertically

Epson TM L90 Specifications

General

Maximum resolution	203 x 203 DPI
Maximum roll diameter	90 mm
Supported paper width	37.5, 79 mm
RS-232 ports	1
Standard interfaces	RS-232
Connectivity technology	Wired
Country of origin	China
Dimensions (WxDxH)	140 x 203 x 148 mm
Flash memory	0.384 MB
Operating temperature (T-T)	5 - 45 °C
Pallet width	800 mm
Pallet height	2600 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	112 pc(s)
Quantity per pallet (UK)	168 pc(s)
Quantity per pallet layer	16 pc(s)
Quantity per pallet layer (UK)	24 pc(s)
Package depth	257 mm
Package width	193 mm
Package height	241 mm
Package weight	2560 g
Quantity per pack	1 pc(s)
