Epson TM L90 Technical Reference Guide

Connecting to the Host Computer and Options 65
TM-L90/TM-L90 Peeler Model Technical Reference Guide
Chapter 3
Connecting to the Host Computer and Options
3.1 Connecting the Cable
This printer has 5 types of interface, serial, parallel, USB, Ethernet, and wireless LAN. The
method of connecting such options as a customer display varies depending on the interface
type. Note that some interfaces do not accept specific connection methods.
All cables are connected to the connector panel located on the lower rear side of the printer.

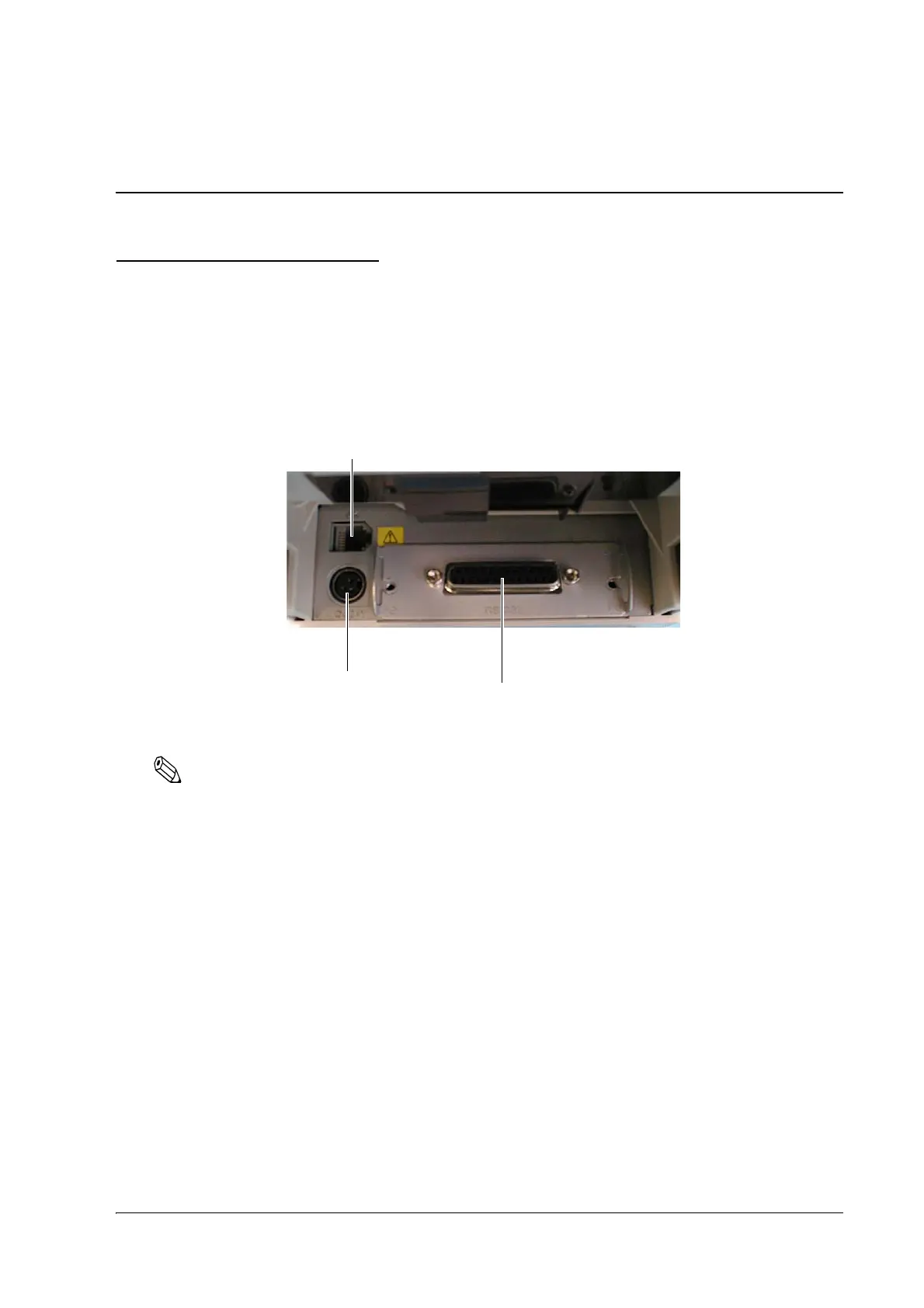

Connector Panel
Note:
The figure above shows the connector panel for RS-232 interface model printer (TM-L90 other than 4**
models, TM-L90 Peeler other than 39* models). The shape of the interface connector varies according to
the type of interface used.
Be sure to turn off the power supply for both the printer and the host computer unit before connecting the
various cables.
Be sure to unplug the power cord before inserting or removing the interface board.
Interface connector
Drawer kick connector
Power supply connector

Epson TM L90 Specifications

General

Maximum resolution	203 x 203 DPI
Maximum roll diameter	90 mm
Supported paper width	37.5, 79 mm
RS-232 ports	1
Standard interfaces	RS-232
Connectivity technology	Wired
Country of origin	China
Dimensions (WxDxH)	140 x 203 x 148 mm
Flash memory	0.384 MB
Operating temperature (T-T)	5 - 45 °C
Pallet width	800 mm
Pallet height	2600 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	112 pc(s)
Quantity per pallet (UK)	168 pc(s)
Quantity per pallet layer	16 pc(s)
Quantity per pallet layer (UK)	24 pc(s)
Package depth	257 mm
Package width	193 mm
Package height	241 mm
Package weight	2560 g
Quantity per pack	1 pc(s)
