Printing Position, Peeling Position, Manual Cutter Position (TM-L90 Peeler Model)

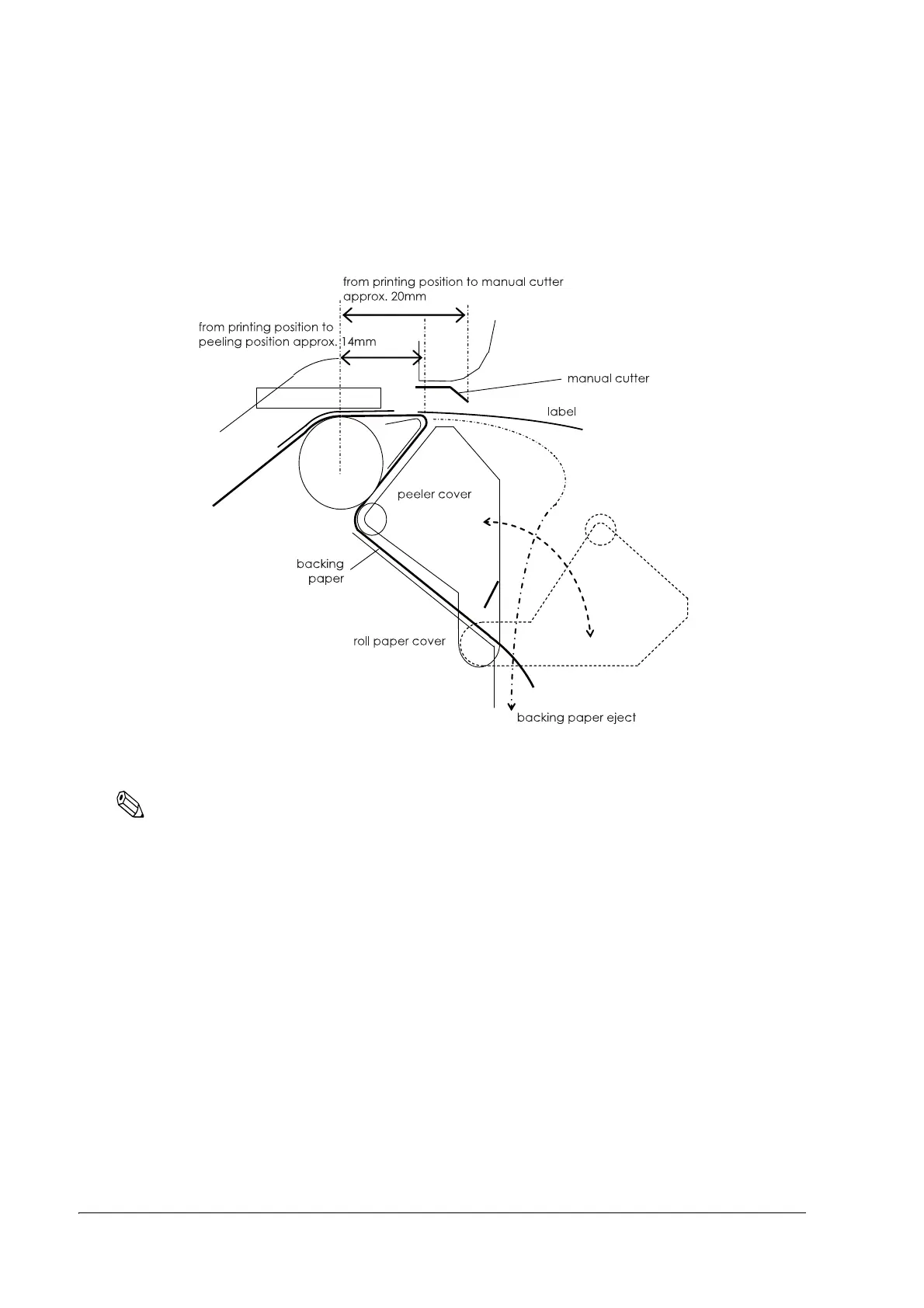

The TM-L90 Peeler Model printing position, peeling position and manual cutter positions are
shown in the following figure.
Printing Position in Relation to Cutter Position
Note:
The values in the figure above are design center values, and since the paper may be warped or irregular,
allow a sufficient margin when setting the cutting position of the manual cutter.
