Epson TM L90 Technical Reference Guide

22 Product Overview
1.2.8 Connectors

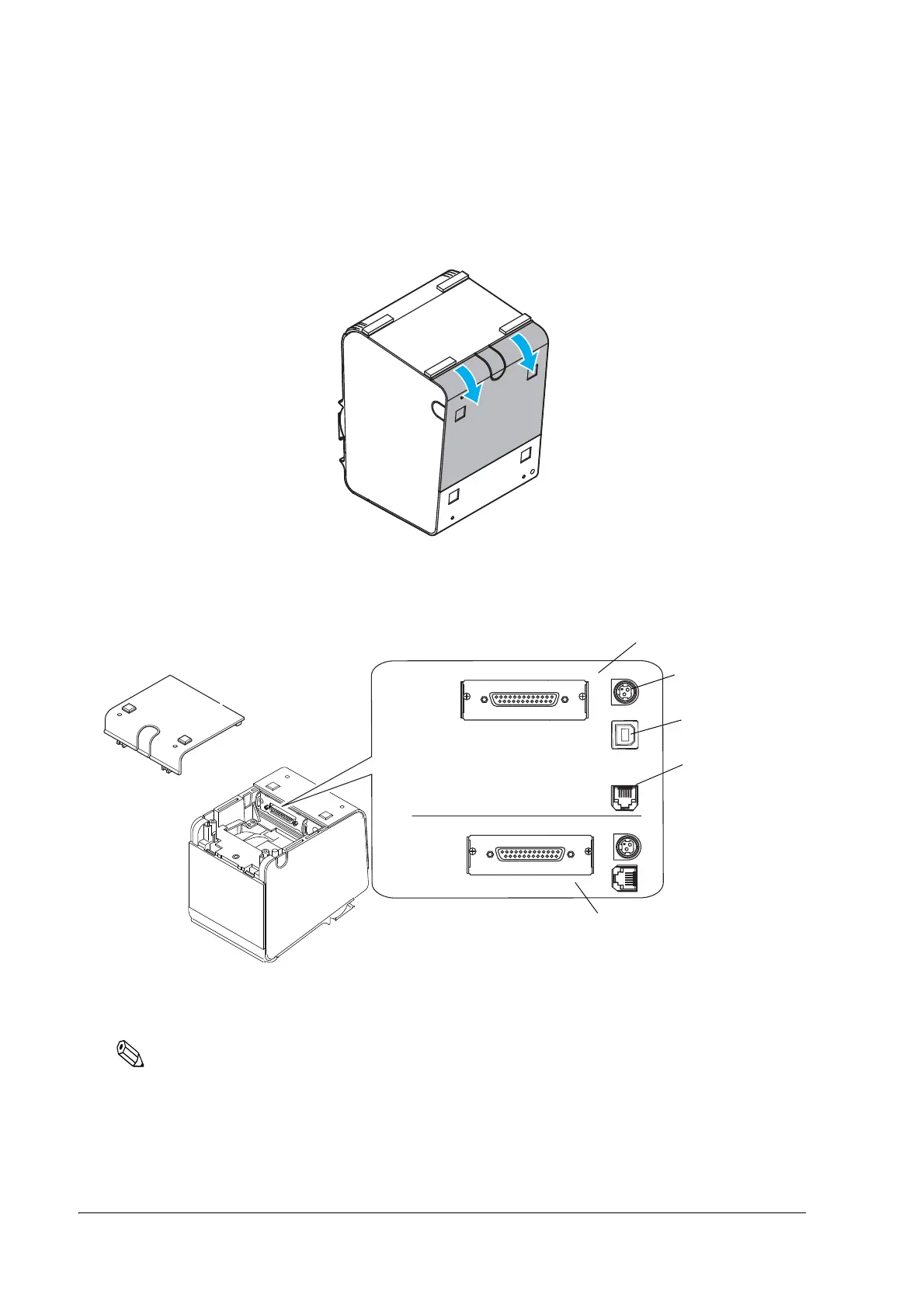

Remove the bottom of the cover as shown in the illustration below. All cables are connected to
the connector panel located on the lower rear side of the printer.
The connector panel differs, depending on the models.
Connector Panel
Note:
The model pictured is a serial interface model. For other information on interfaces and connectors, refer to
"Connecting the Cable" on page 65.
drawer kick
connector
power supply
connector
TM-L90 4** models,
TM-L90 Peeler 39* models
TM-L90 other than
4** models,
TM-L90 Peeler other
than 39* models
USB interface

Epson TM L90 Specifications

General

Maximum resolution	203 x 203 DPI
Maximum roll diameter	90 mm
Supported paper width	37.5, 79 mm
RS-232 ports	1
Standard interfaces	RS-232
Connectivity technology	Wired
Country of origin	China
Dimensions (WxDxH)	140 x 203 x 148 mm
Flash memory	0.384 MB
Operating temperature (T-T)	5 - 45 °C
Pallet width	800 mm
Pallet height	2600 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	112 pc(s)
Quantity per pallet (UK)	168 pc(s)
Quantity per pallet layer	16 pc(s)
Quantity per pallet layer (UK)	24 pc(s)
Package depth	257 mm
Package width	193 mm
Package height	241 mm
Package weight	2560 g
Quantity per pack	1 pc(s)
