Epson TM L90 Technical Reference Guide

Setup 35
TM-L90/TM-L90 Peeler Model Technical Reference Guide
2.4 Connecting AC adapter (PS-180)
Be sure to use the PS-180 or the equivalent product as the AC adapter.
CAUTION:
Be sure to remove the AC cable from the wall outlet whenever connecting or
disconnecting the AC adapter to the printer. Failure to do so may result in damage to
the AC adapter or the printer.
Be sure to confirm that the wall outlet power supply satisfies the rated voltage
requirements of the AC adapter. Never insert the AC cable plug into a socket that does
not meet the rated voltage requirements of the AC adapter. Doing so may result in
damage to both the AC adapter and the printer.
2.4.1 Attaching AC adapter
The following is an explanation of the procedure for attaching the power unit to the TM-L90.
1. Confirm that the printer's power supply is turned off and the AC adapter's AC cable has
been removed from the wall outlet.

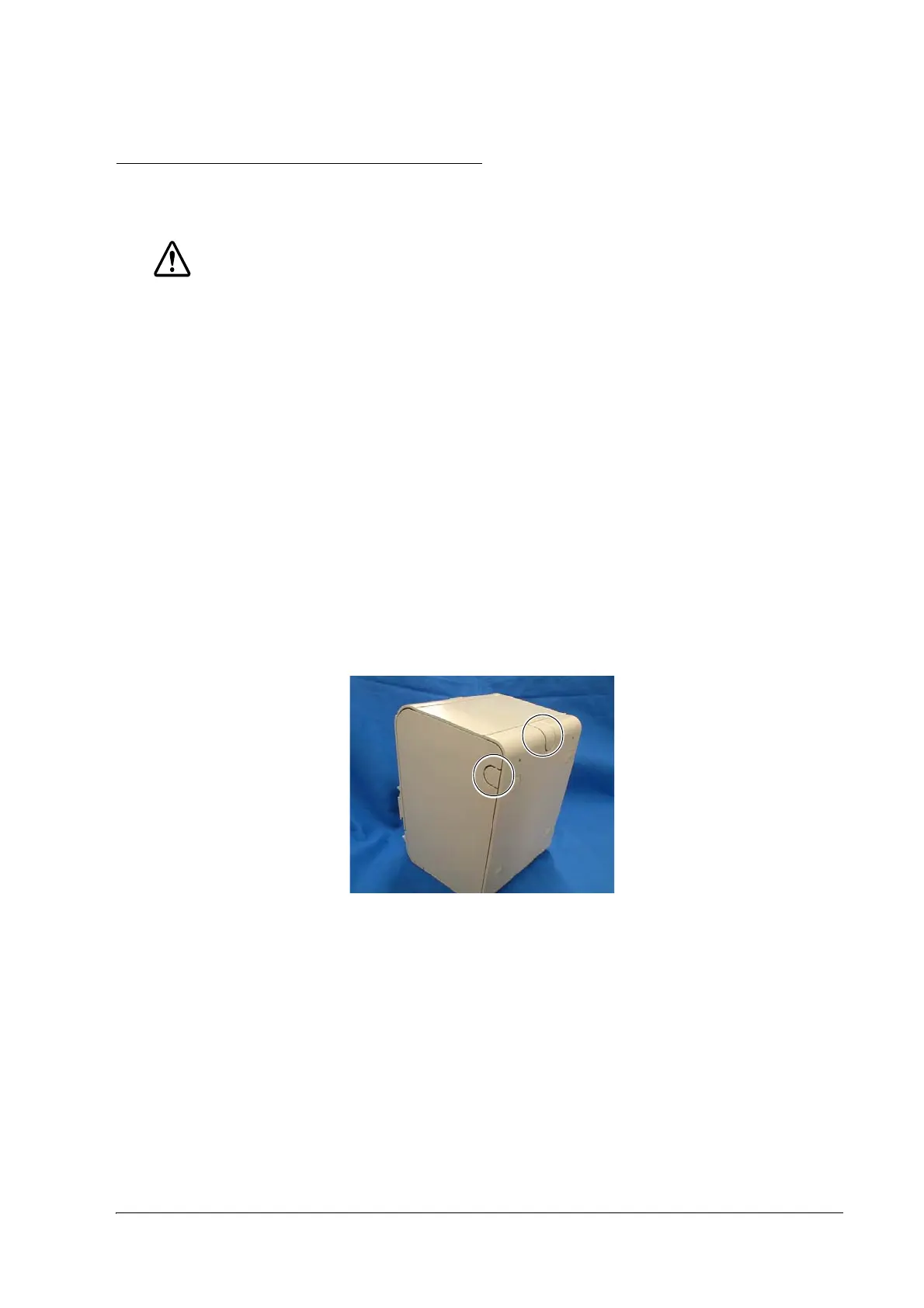

2. To place cables, first break off by hand any of the three perforations to pass the cables
through indicated by circles in the illustration (the other one is on the right). Then put the
cables through the holes and replace the bottom of the cover.

Epson TM L90 Specifications

General

Maximum resolution	203 x 203 DPI
Maximum roll diameter	90 mm
Supported paper width	37.5, 79 mm
RS-232 ports	1
Standard interfaces	RS-232
Connectivity technology	Wired
Country of origin	China
Dimensions (WxDxH)	140 x 203 x 148 mm
Flash memory	0.384 MB
Operating temperature (T-T)	5 - 45 °C
Pallet width	800 mm
Pallet height	2600 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	112 pc(s)
Quantity per pallet (UK)	168 pc(s)
Quantity per pallet layer	16 pc(s)
Quantity per pallet layer (UK)	24 pc(s)
Package depth	257 mm
Package width	193 mm
Package height	241 mm
Package weight	2560 g
Quantity per pack	1 pc(s)
