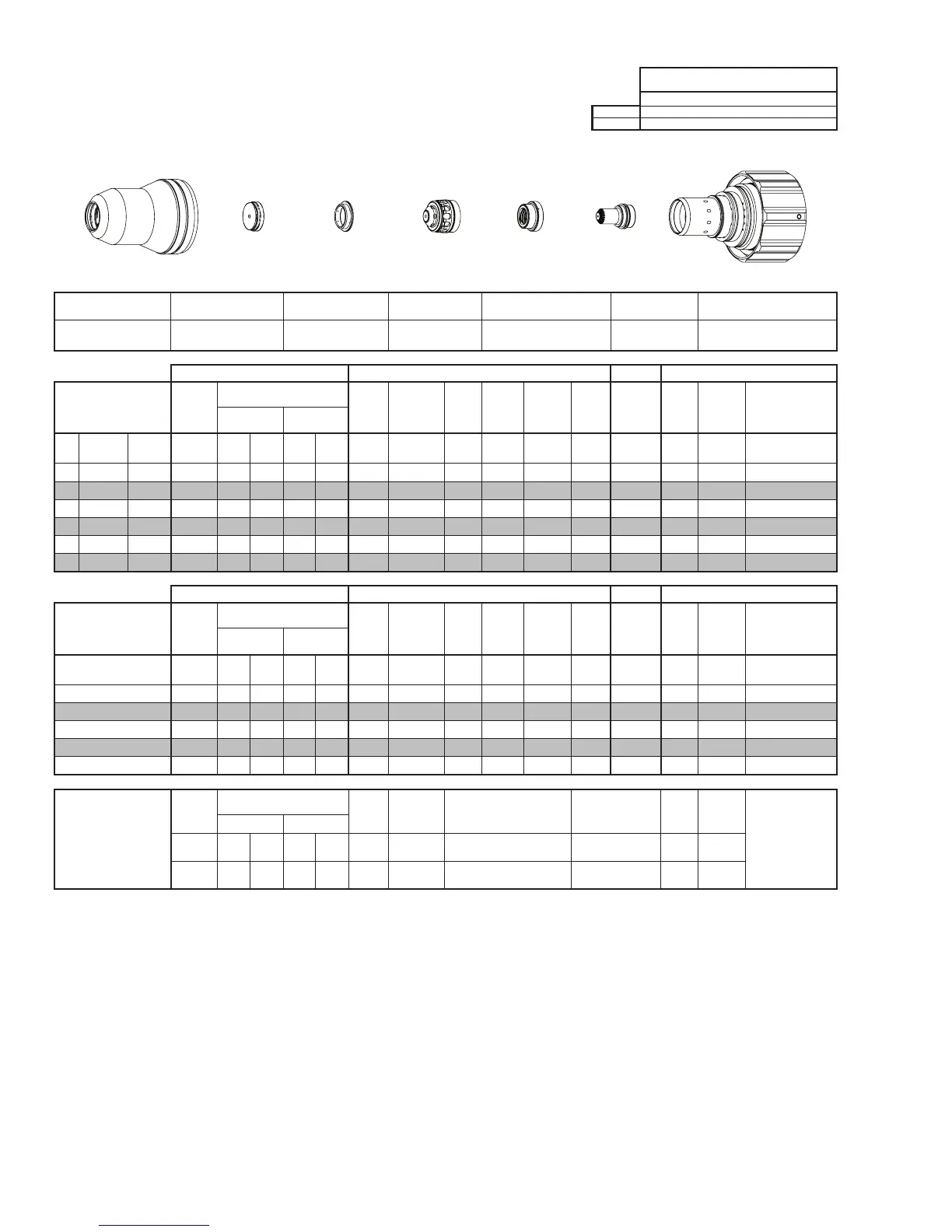

ESAB 100i - Page 126

TORCH DATA 100i-400i 126 Manual 0560956430
Stainless Steel
Flow Rates (SLPM / SCFH)
30A
Air
Preow
22 / 47
Air Plasma / Air Shield
Culow
40 / 85
Electrode
Shield Cap
Tip
Shield Gas
Distributor
Plasma Gas
Distributor
Cartridge
Shield Cup
This Art Is For Reference ONLY
Art # A-07958_AB
Shield Cup Shield Cap
Shield Gas
Distributor
Tip Plasma Gas Distributor Electrode Cartridge
0559211201 0559210141 0559210080 0559210121 0559210064 0559210101 0559211200
Manual Gas Control Advanced Torch Height Control (THC) Basic THC CNC Control
Material
Thickness
Pre Flow
Pressure
(Air)
Cut Flow Rates / Pressures
Arc
Voltage
Cut Height
THC
Pierce
Delay
Pierce
Ignion
Height
Elevaon
Height
Control
Delay
Pierce
Height
without
Elevaon
Travel
Speed
CNC
Moon
Delay
Max Kerf Width
@ Rec. Speed
Plasma (Air) Shield (Air)
ga (in) inch (psi) Ball (psi) Ball (psi) (Volts) (in) ±0.005 (sec) (in) (in) (sec) (in) (ipm) (sec) (in)
26 - 0.019 60 64 120 20 120 87 0.020 0.0 0.040 0.030 0.7 0.040 350 0.0 0.029
24 - 0.025 60 64 120 20 120 85 0.020 0.0 0.040 0.030 0.7 0.040 320 0.0 0.028
22 - 0.031 60 64 120 20 120 80 0.020 0.0 0.040 0.030 0.7 0.040 310 0.0 0.034
20 - 0.038 60 64 120 20 120 75 0.020 0.1 0.060 0.040 0.6 0.060 300 0.1 0.025
18 - 0.050 60 64 120 20 120 78 0.020 0.2 0.070 0.040 0.5 0.080 150 0.2 0.032
16 - 0.063 60 64 120 20 120 76 0.020 0.2 0.070 0.040 0.5 0.080 110 0.2 0.030
Manual Gas Control Advanced Torch Height Control (THC) Basic THC CNC Control
Material
Thickness
Pre Flow
Pressure
(Air)
Cut Flow Rates / Pressures
Arc
Voltage
Cut Height
THC
Pierce
Delay
Pierce
Ignion
Height
Elevaon
Height
Control
Delay
Pierce
Height
without
Elevaon
Travel
Speed
CNC
Moon
Delay
Max Kerf Width
@ Rec. Speed
Plasma (Air) Shield (Air)
(mm) (Bar) Ball (Bar) Ball (Bar) (Volts) (mm) ±0.1 (sec) (mm) (mm) (sec) (mm)
(mm/
min)
(sec) (mm)
0.6 4.1 64 8.3 20 8.3 85 0.5 0.0 1.0 0.8 0.7 1.0 8300 0.0 0.7
0.8 4.1 64 8.3 20 8.3 80 0.5 0.0 1.1 0.8 0.7 1.1 7860 0.0 0.8
1 4.1 64 8.3 20 8.3 75 0.5 0.1 1.6 1.0 0.6 1.6 7190 0.1 0.7
1.5 4.1 64 8.3 20 8.3 77 0.5 0.2 1.8 1.0 0.5 2.0 3100 0.2 0.8
2 4.1 64 8.3 20 8.3 74 0.5 0.2 1.8 1.0 0.5 2.0 2600 0.2 0.7
Marking
Pre Flow
Pressure
(N₂)
Marking Flow Rates /
Pressures
Arc
Voltage
Marking
Height
Pierce Ignion Height
THC and CNC
Delay
Control
Delay
Travel
Speed
Marking quality
degrades as
thickness
decreases.
16A Arc Current
Plasma (N₂) Shield (N₂)
Burn-through may
happen for thicknesses
< 1/16” (0.063”) /
1.6 mm.
(psi) /
(Bar)
Ball
(psi) /
(Bar)
Ball
(psi) /
(Bar)
(Volts)
(in) ±0.005 /
(mm) ±0.1
(in) ±0.005 / (mm) ±0.1 (sec) (sec)
(ipm) /
(mm/ min)
20 / 1.4 20
40 /
2.8
70
80 /
5.5
93 0.100 / 2.5 0.100 / 2.5 0 0.4
300 /
7620
BOLD TYPE indicates maximum piercing parameters.
