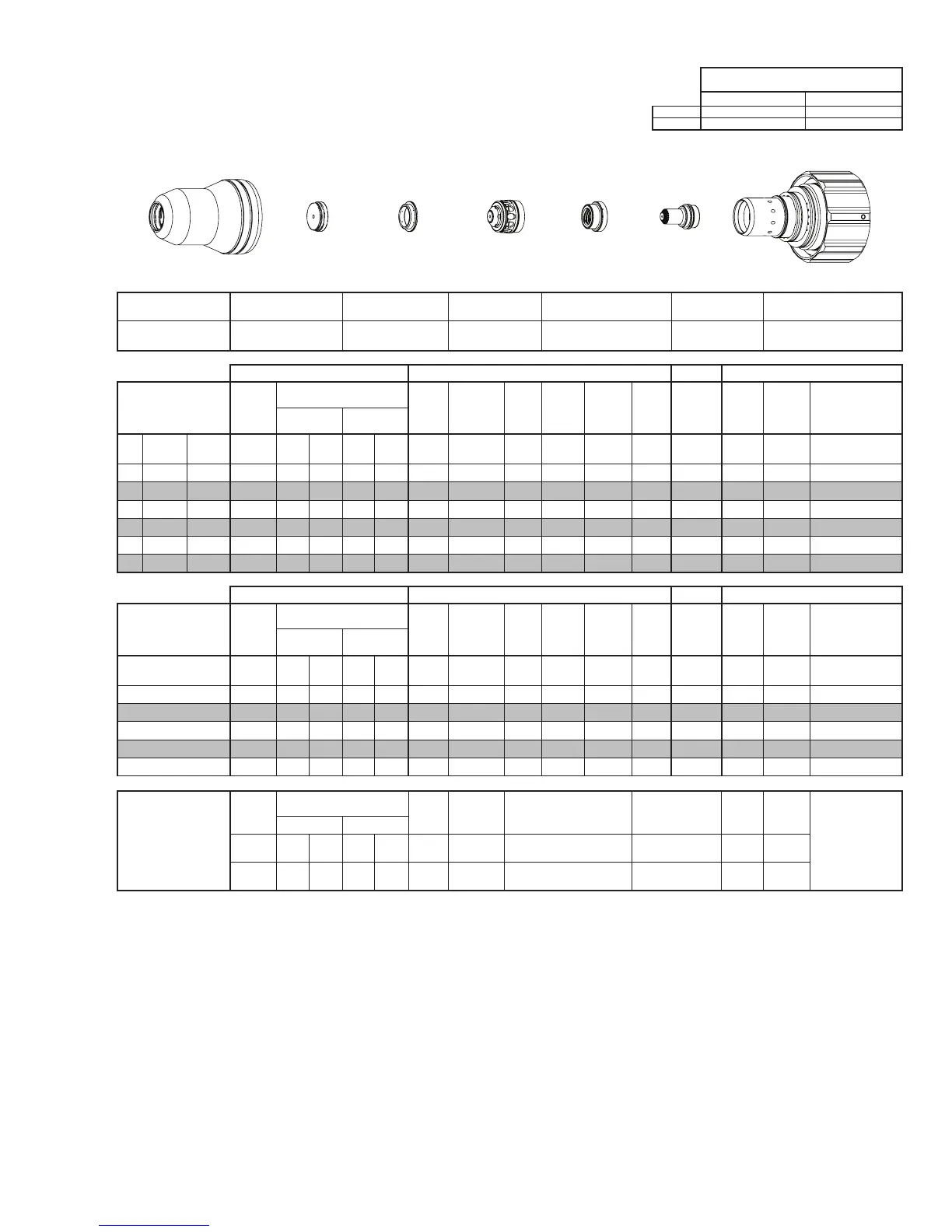

Manual 0560956430 127 TORCH DATA 100i-400i
Stainless Steel
Flow Rates
30A
N₂ (SLPM / SCFH) H₂O (GPH / LPH)
Preow
9 / 19 5 / 19
N₂ Plasma / H₂O Shield
Culow
28 / 59 5 / 19
Electrode
Shield Cap
Tip
Shield Gas
Distributor
Plasma Gas
Distributor
Cartridge
Shield Cup
This Art Is For Reference ONLY
Art # A-07958_AB
Shield Cup Shield Cap
Shield Gas
Distributor
Tip Plasma Gas Distributor Electrode Cartridge
0559211201 0559210141 0559210080 0559210121 0559210064 0559210101 0559211200
Manual Gas Control Advanced Torch Height Control (THC) Basic THC CNC Control
Material
Thickness
Pre Flow
Pressure
(N₂)
Cut Flow Rates / Pressures
Arc
Voltage
Cut Height
THC
Pierce
Delay
Pierce
Ignion
Height
Elevaon
Height
Control
Delay
Pierce
Height
without
Elevaon
Travel
Speed
CNC
Moon
Delay
Max Kerf Width
@ Rec. Speed
Plasma (N₂) Shield (H₂O)
ga (in) inch (psi) Ball (psi) Ball (psi)* (Volts) (in) ±0.005 (sec) (in) (in) (sec) (in) (ipm) (sec) (in)
26 - 0.019 90 75 120 4 55 91 0.020 0.0 0.040 0.030 0.5 0.040 600 0.0 0.047
24 - 0.025 90 64 120 4 55 97 0.020 0.0 0.040 0.030 0.5 0.040 440 0.0 0.045
22 - 0.031 90 50 120 4 55 95 0.020 0.0 0.040 0.030 0.5 0.040 420 0.0 0.045
20 - 0.038 90 60 120 5 55 105 0.020 0.1 0.050 0.040 0.4 0.050 300 0.1 0.044
18 - 0.050 90 60 120 5 55 78 0.030 0.1 0.050 0.040 0.4 0.050 250 0.1 0.035
16 - 0.063 90 60 120 5 55 85 0.050 0.2 0.060 0.040 0.4 0.060 205 0.2 0.044
Manual Gas Control Advanced Torch Height Control (THC) Basic THC CNC Control
Material
Thickness
Pre Flow
Pressure
(N₂)
Cut Flow Rates / Pressures
Arc
Voltage
Cut Height
THC
Pierce
Delay
Pierce
Ignion
Height
Elevaon
Height
Control
Delay
Pierce
Height
without
Elevaon
Travel
Speed
CNC
Moon
Delay
Max Kerf Width
@ Rec. Speed
Plasma (N₂) Shield (H₂O)
(mm) (Bar) Ball (Bar) Ball (Bar)* (Volts) (mm) ±0.1 (sec) (mm) (mm) (sec) (mm)
(mm/
min)
(sec) (mm)
0.6 6.2 67 8.3 4 3.8 96 0.5 0.0 1.0 0.8 0.5 1.0 12110 0.0 1.2
0.8 6.2 51 8.3 4 3.8 96 0.5 0.0 1.0 0.8 0.5 1.0 10450 0.0 1.1
1 6.2 60 8.3 5 3.8 102 0.5 0.1 1.3 1.0 0.4 1.3 7480 0.1 1.1
1.5 6.2 60 8.3 5 3.8 83 1.1 0.2 1.4 1.0 0.4 1.4 5550 0.2 1.0
2 6.2 60 8.3 5 3.8 93 1.9 0.3 1.8 1.0 0.4 1.8 3820 0.3 1.4
Marking
Pre Flow
Pressure
(N₂)
Marking Flow Rates /
Pressures
Arc
Voltage
Marking
Height
Pierce Ignion Height
THC and CNC
Delay
Control
Delay
Travel
Speed
Marking quality
degrades as
thickness
decreases.
16A Arc Current
Plasma (N₂) Shield (N₂)
Burn-through may
happen for thicknesses
< 1/16” (0.063”) /
1.6 mm.
(psi) /
(Bar)
Ball
(psi) /
(Bar)
Ball
(psi) /
(Bar)
(Volts)
(in) ±0.005 /
(mm) ±0.1
(in) ±0.005 / (mm) ±0.1 (sec) (sec)
(ipm) /
(mm/ min)
20 / 1.4 20
40 /
2.8
70
80 /
5.5
93 0.100 / 2.5 0.100 / 2.5 0 0.4
300 /
7620
BOLD TYPE indicates maximum piercing parameters.
* Pressure of the water supply line should be regulated by customer pressure regulator.
Note 1: Ohmic height sensing is not recommended with water shield. Water on the plate interferes electrically with the ohmic sensing circuit.
Note 2: Water source used for shield must be demineralized.
