ESAB 100i - Page 149

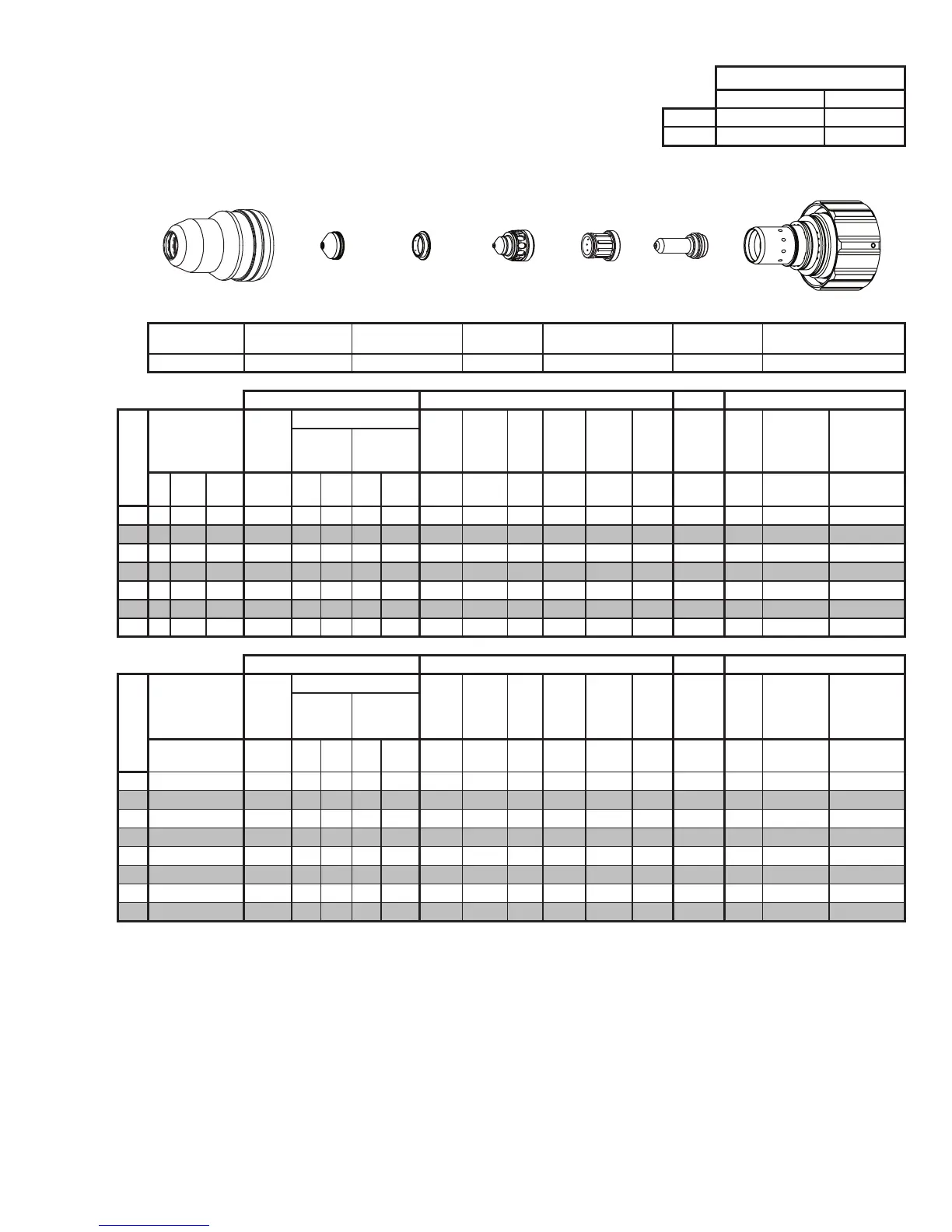

Manual 0560956430 149 TORCH DATA 100i-400i
Electrode
Shield Cap
Tip
Shield Gas
Distributor
Plasma Gas
Distributor
Cartridge
Shield Cup
This Art Is For Reference ONLY
Art # A-10272
Mild Steel
20-30A ROBOTIC COMPATIBLE
O
2
Plasma / O
2
Shield
Flow Rates (SLPM / SCFH)
O
2
Air
Preow
5 / 10 16 / 34
Culow 15 / 32 0 / 0
Shield Retainer Shield Cap
Shield Gas
Distributor
Tip Plasma Gas Distributor Electrode Cartridge
0559211201 0559210051 0559210091 0559210032 0559210090 0559210011 0559211200
Manual Gas Control Advanced Torch Height Control (THC) Basic THC CNC Control
Cut Current
Material
Thickness
Pre Flow
Pressure
(Air)
Cut Flow Rates / Pressures
Arc
Voltage
Cut
Height
THC
Pierce
Delay
Pierce
Ignion
Height
Elevaon
Height
Control
Delay
Pierce
Height
without
Elevaon
Travel
Speed
CNC
Moon
Delay
Max Kerf Width
@ Rec. Speed
Plasma (O
2
) Shield (O
2
)
ga (in) inch (psi) Ball (psi) Ball (psi) (Volts)
(in)
±0.005
(sec) (in) (in) (sec) (in) (ipm) (sec) (in)
20A
16 - 0.060 70 35 100 20 40 114 0.080 0.0 0.100 0.050 1.5 0.150 125 1.0 0.054
20A 14 - 0.075 70 35 100 20 40 114 0.080 0.0 0.100 0.050 1.5 0.150 100 0.0 0.058
30A 13 - 0.090 70 35 100 20 40 108 0.060 0.1 0.100 0.050 1.4 0.150 100 0.1 0.065
30A 12 - 0.105 70 35 100 20 40 110 0.060 0.2 0.100 0.050 1.3 0.150 80 0.2 0.066
30A 10 - 0.135 70 35 100 20 40 118 0.090 0.2 0.125 0.075 1.3 0.200 45 0.2 0.077
30A - 16/85 0.188 70 35 100 20 40 125 0.120 0.4 0.150 0.100 1.1 0.250 35 0.4 0.080
30A - 1/4 0.250 70 35 100 20 40 128 0.150 0.5 0.150 0.100 1.0 0.250 25 0.5 0.090
Manual Gas Control Advanced Torch Height Control (THC) Basic THC CNC Control
Cut Current
Material
Thickness
Pre Flow
Pressure
(Air)
Cut Flow Rates / Pressures
Arc
Voltage
Cut
Height
THC
Pierce
Delay
Pierce
Ignion
Height
Elevaon
Height
Control
Delay
Pierce
Height
without
Elevaon
Travel
Speed
CNC
Moon Delay
Max Kerf Width
@ Rec. Speed
Plasma (O
2
) Shield (O
2
)
(mm) (Bar) Ball (Bar) Ball (Bar) (Volts)
(mm)
±0.1
(sec) (mm) (mm) (sec) (mm)
(mm/
min)
(sec) (mm)
20A
1.5 4.8 35 6.9 20 2.8 114 2.0 0.0 2.5 1.3 1.5 3.8 3200 0.0 1.4
20A 2 4.8 35 6.9 20 2.8 114 2.0 0.1 2.5 1.3 1.4 3.8 2300 0.1 1.5
30A 2 4.8 35 6.9 20 2.8 107 1.5 0.0 2.5 1.3 1.5 3.8 2800 0.0 1.6
30A 2.5 4.8 35 6.9 20 2.8 109 1.5 0.1 2.5 1.3 1.4 3.8 2200 0.1 1.7
30A 3 4.8 35 6.9 20 2.8 114 2.0 0.2 2.5 1.3 1.3 3.8 1600 0.2 1.8
30A 4 4.8 35 6.9 20 2.8 121 2.5 0.3 3.2 1.9 1.2 5.1 1000 0.3 2.0
30A 5 4.8 35 6.9 20 2.8 125 3.0 0.4 3.8 2.5 1.1 6.4 860 0.4 2.1
30A 6 4.8 35 6.9 20 2.8 127 3.8 0.5 3.8 2.5 1.0 6.4 690 0.5 2.2
Note 1: Recommended with DFC-3000 automated gas console to improve cut quality at the start.
Note 2: Recommended for at plate, bevel and roboc cung applicaons
