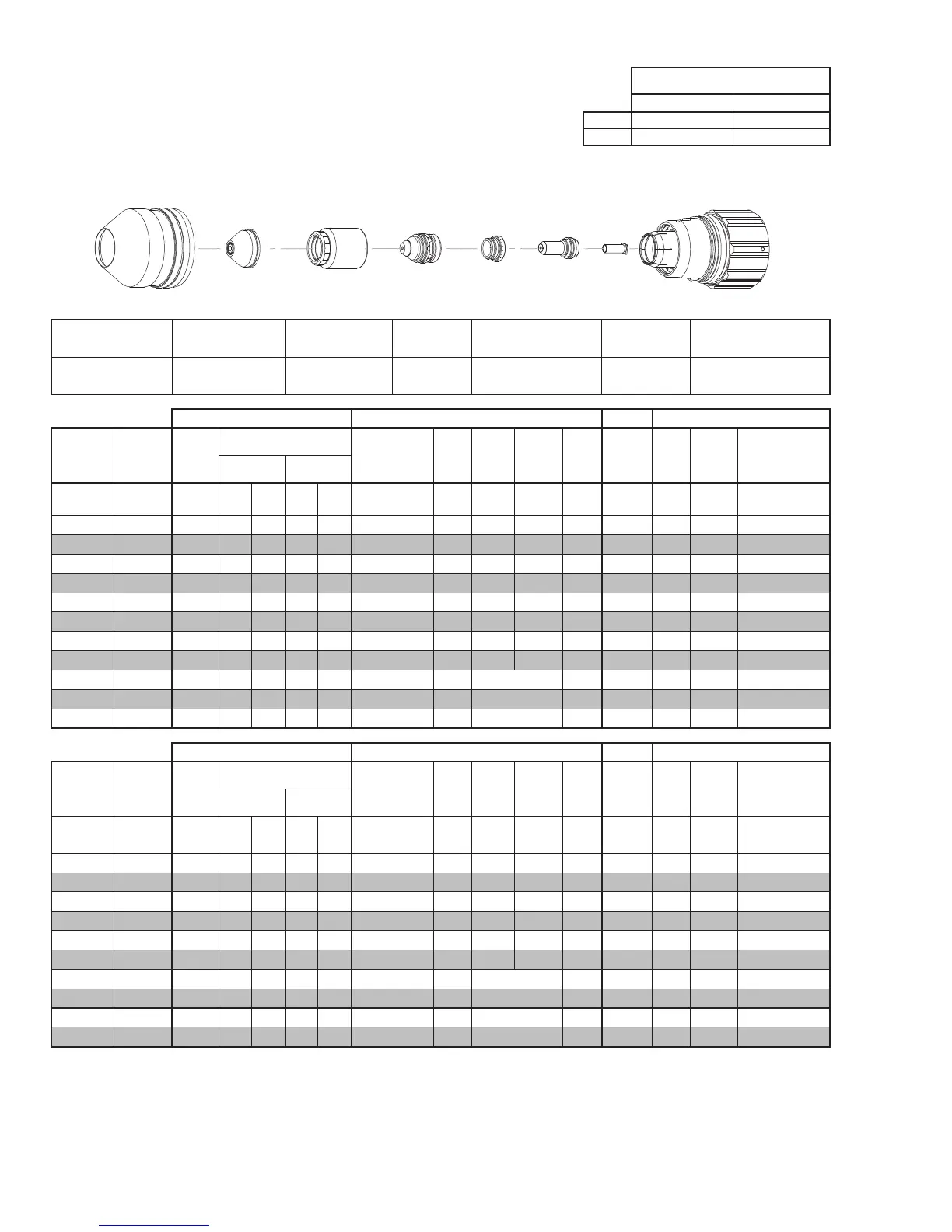

ESAB 100i - Page 186

TORCH DATA 100i-400i 186 Manual 0560956430
Mild Steel
Flow Rates (SLPM / SCFH)
300A XTL Bevel Cut
O₂ Air
Preow - / - 194 / 412
O₂ Plasma / Air Shield
Culow 27 / 58 160 / 340
This Art Is For Reference Only
Art# A-10270_AB
Shield Cup
Shield Cap
Shield Gas
Distributor
Tip
Gas
Distributor
Electrode
Tube
Cartridge Assembly
Shield Cup Shield Cap
Shield Gas
Distributor
Tip Plasma Gas Distributor Electrode Cartridge
0559211401 0559210048
0559210074
0559210028 0559210062
0559210006
9-7921
0559211400
Manual Gas Control Advanced Torch Height Control (THC) Basic THC CNC Control
Eecve
Material
Thickness
Min.
Clearance
Pre Flow
Pressure
(Air)
Cut Flow Rates / Pressures
Eecve Cut
Height
THC
Pierce
Delay
Pierce
Ignion
Height
Elevaon
Height
Control
Delay
Pierce
Height
without
Elevaon
Travel
Speed
CNC
Moon
Delay
Max Kerf Width
@ Rec. Speed
Plasma (O₂) Shield (Air)
inch (in) (psi) Ball (psi) Ball (psi) (in) (sec) (in) (in) (sec) (in) (ipm) (sec) (in)
0.500 0.080 20 100 100 NA 100 0.200 - 0.550 0.3 0.400 0.200 0.5 0.450 140 0.2 0.149
0.625 0.080 20 100 100 NA 100 0.200 - 0.550 0.4 0.400 0.200 0.5 0.450 115 0.3 0.179
0.750 0.080 20 100 100 NA 100 0.200 - 0.550 0.6 0.400 0.200 0.5 0.450 100 0.4 0.185
0.875 0.080 20 100 100 NA 100 0.200 - 0.550 0.8 0.400 0.200 0.5 0.450 85 0.6 0.182
1.000 0.080 20 100 100 NA 100 0.200 - 0.550 1.1 0.400 0.250 0.5 0.450 70 0.9 0.183
1.250 0.080 20 100 100 NA 100 0.200 - 0.550 1.5 0.400 0.300 0.5 0.500 50 1.2 0.193
1.500 0.080 20 100 100 NA 100 0.200 - 0.550 2.9 0.400 0.350 0.5 0.500 35 2.7 0.208
1.750 0.080 20 100 100 NA 100 0.200 - 0.550 5.3 0.400 0.400 0.5 Edge 25 5.2 0.250
2.000 0.080 20 100 100 NA 100 0.200 - 0.550 1.0 Edge Start 0.5 Edge 18 1.0 0.245
2.500 0.080 20 100 100 NA 100 0.200 - 0.550 1.0 Edge Start 0.5 Edge 10 1.0 0.416
3.000 0.080 20 100 100 NA 100 0.200 - 0.550 1.0 Edge Start 0.5 Edge 7 1.0 0.500
Manual Gas Control Advanced Torch Height Control (THC) Basic THC CNC Control
Eecve
Material
Thickness
Min.
Clearance
Pre Flow
Pressure
(Air)
Cut Flow Rates / Pressures
Eecve Cut
Height
THC
Pierce
Delay
Pierce
Ignion
Height
Elevaon
Height
Control
Delay
Pierce
Height
without
Elevaon
Travel
Speed
CNC
Moon
Delay
Max Kerf Width
@ Rec. Speed
Plasma (O₂) Shield (Air)
(mm) (mm) (Bar) Ball (Bar) Ball (Bar) (mm) (sec) (mm) (mm) (sec) (mm)
(mm/
min)
(sec) (mm)
12 2.0 1.4 100 6.9 NA 6.9 5.1 - 14 0.3 10.2 5.1 0.5 11.4 3700 0.2 3.6
15 2.0 1.4 100 6.9 NA 6.9 5.1 - 14 0.4 10.2 5.1 0.5 11.4 3100 0.3 4.3
20 2.0 1.4 100 6.9 NA 6.9 5.1 - 14 0.7 10.2 5.1 0.5 11.4 2430 0.5 4.7
25 2.0 1.4 100 6.9 NA 6.9 5.1 - 14 1.1 10.2 6.2 0.5 11.4 1830 0.9 4.6
30 2.0 1.4 100 6.9 NA 6.9 5.1 - 14 1.4 10.2 7.3 0.5 12.4 1410 1.1 4.8
35 2.0 1.4 100 6.9 NA 6.9 5.1 - 14 2.2 10.2 8.3 0.5 12.7 1080 2.0 5.1
40 2.0 1.4 100 6.9 NA 6.9 5.1 - 14 3.6 10.2 0.5 Edge 810 3.4 5.6
50 2.0 1.4 100 6.9 NA 6.9 5.1 - 14 1.0 Edge Start 0.5 Edge 470 1.0 5.9
60 2.0 1.4 100 6.9 NA 6.9 5.1 - 14 1.0 Edge Start 0.5 Edge 310 1.0 9.4
70 2.0 1.4 100 6.9 NA 6.9 5.1 - 14 1.0 Edge Start 0.5 Edge 220 1.0 11.7
BOLD TYPE indicates maximum piercing parameters. BOLD ITALIC indicates edge starts only.
Use CCM 4.5.0 or later and Electronic Cut Chart 2.4.0 or later
