100i / 200i / 300i / 400i
Manual PN: 0560956430 INSTALLATION 57

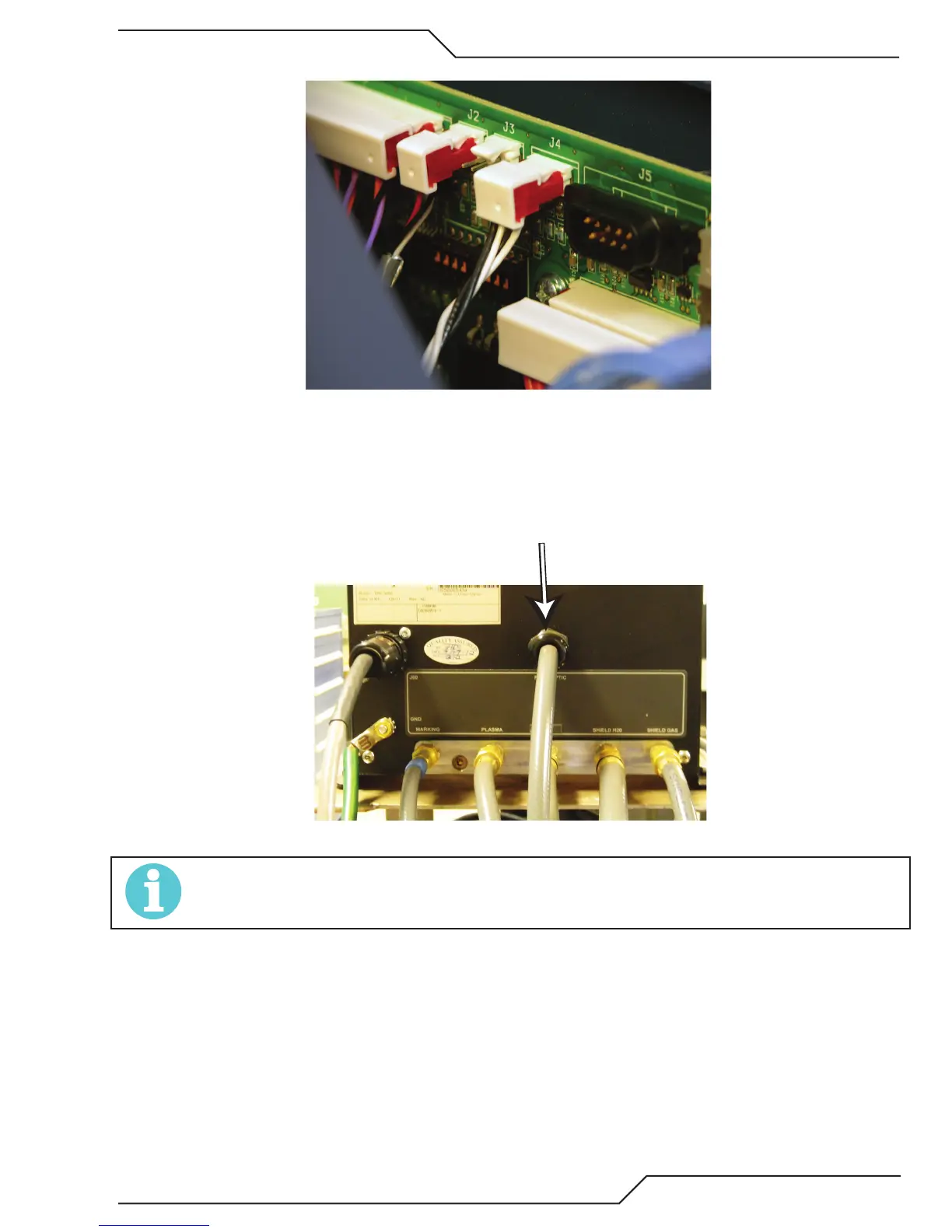

3. Attach all hoses and cables to the back of the Gas Control Unit except the Fiber Optic cable which will be covered a little
later. Avoid turning any fittings already mounted in the unit by placing a wrench on it before tightening the hose fitting to
it.
Do not connect Fiber Optic cable until later
Art # A-09146_AB
4. Connect hoses from the front of the Gas Control Unit where shown below to the torch.
NOTE!
One fitting with the notches is left hand thread and the other is standard right hand thread.
To Next Page
