100i / 200i / 300i / 400i

Manual PN: 0560956430 INSTALLATION 69

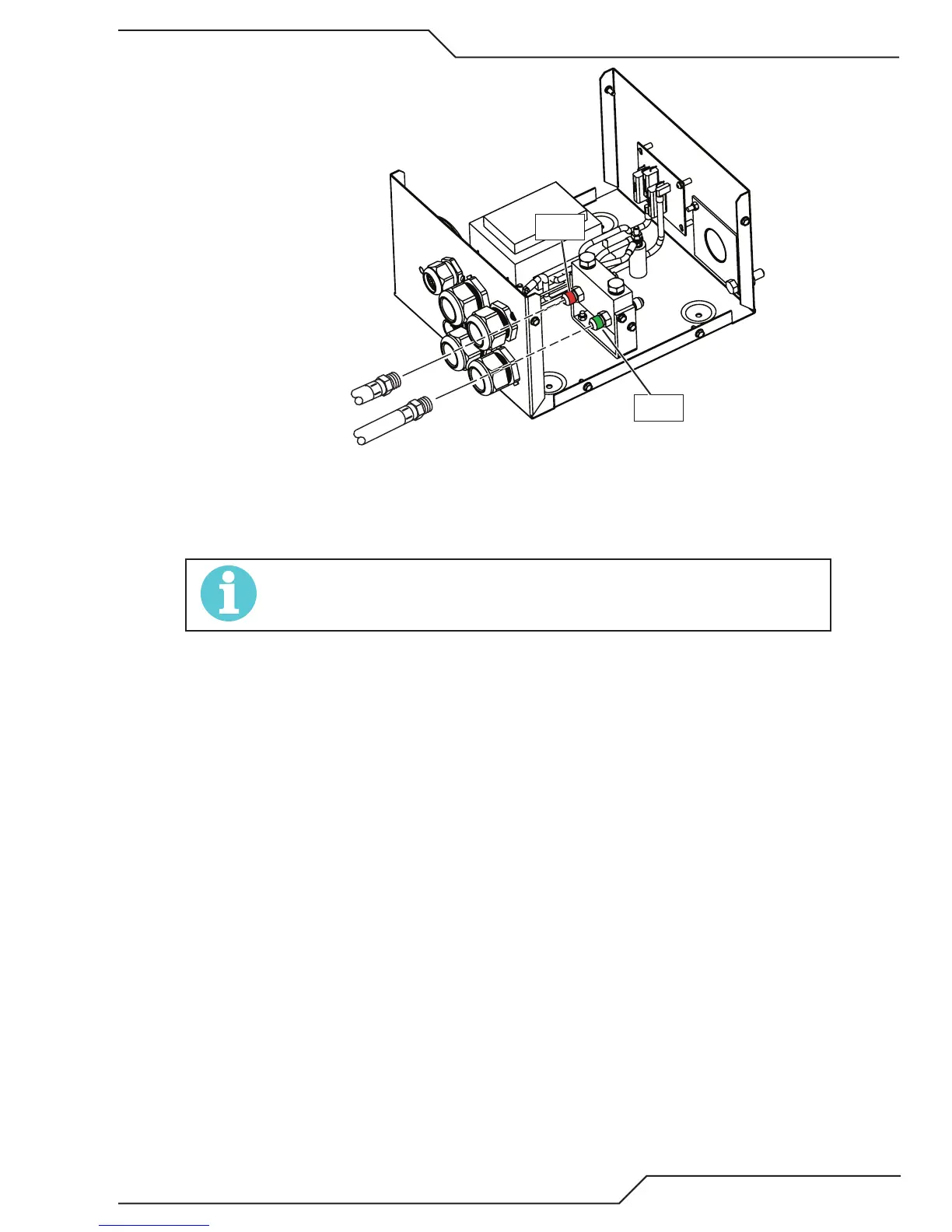

Coolant Return (Red)

Coolant Supply (Green)

Art # A-12062

Green

Red

2. Refer to illustration. Connect the Pilot wire and Negative cables using a star washer on each.

NOTE!

* Slave and Master refer to only those set ups using two power supplies in parrallel.

Slave is not used in single system operations.
