100i / 200i / 300i / 400i
Manual PN: 0560956430 INSTALLATION 71

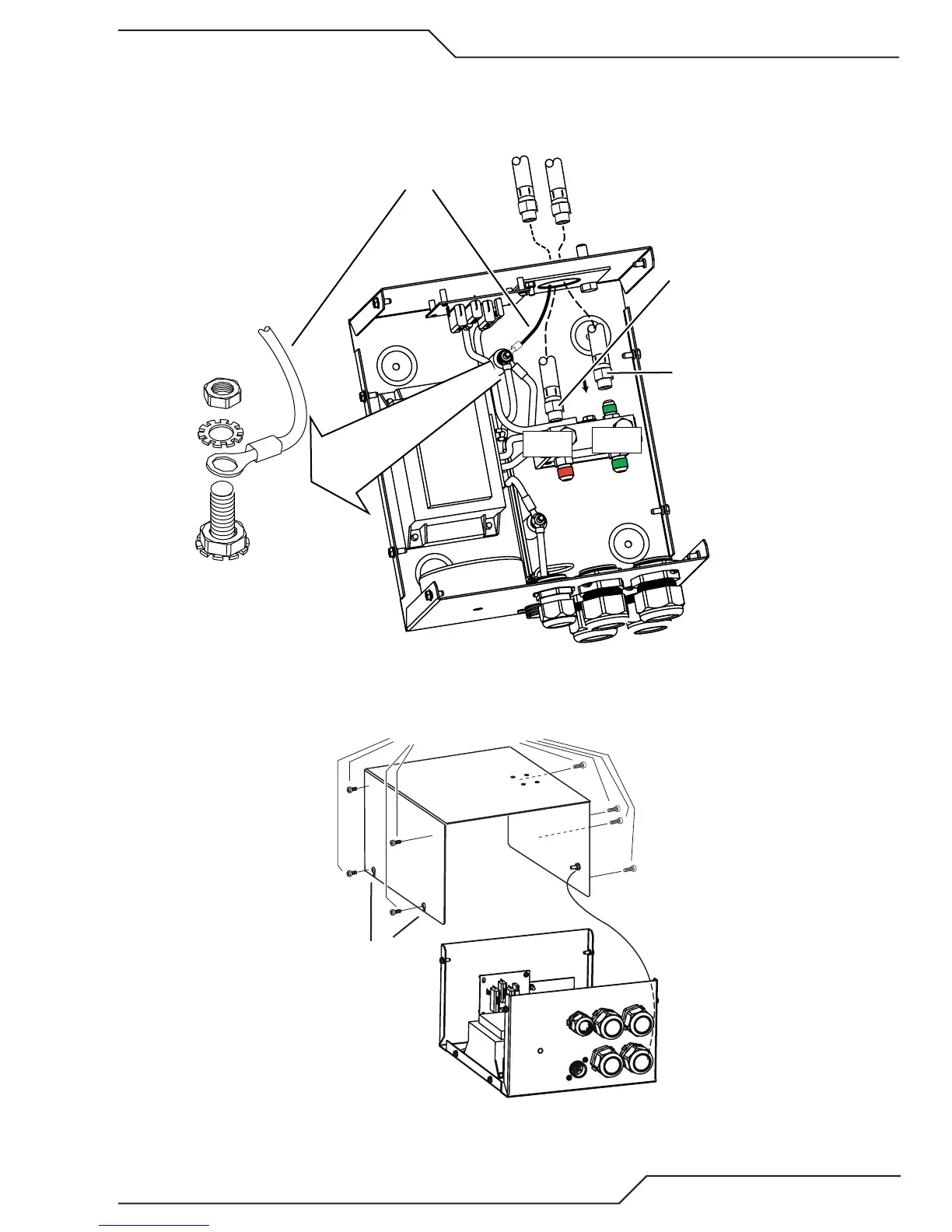

Output Connections
1. Refer to the illustrations. Make the following output connections to the Arc Starter.
Pilot Lead
Art # A-12065
Green
Red
Coolant Return (Red)
Coolant Supply (Green)
Pilot Return Cable, Coolant Supply and Return Hoses (from Torch)
2. Reinstall the Arc Starter Cover. Ensure that the ground wire is not crimped between the cover and the base.
Art # A-12059
Lower screws
(2 per side)
Upper screws (2 per side)
Cover
Ground Wire
To Next Page
