100i / 200i / 300i / 400i
72 INSTALLATION Manual PN: 0560956430

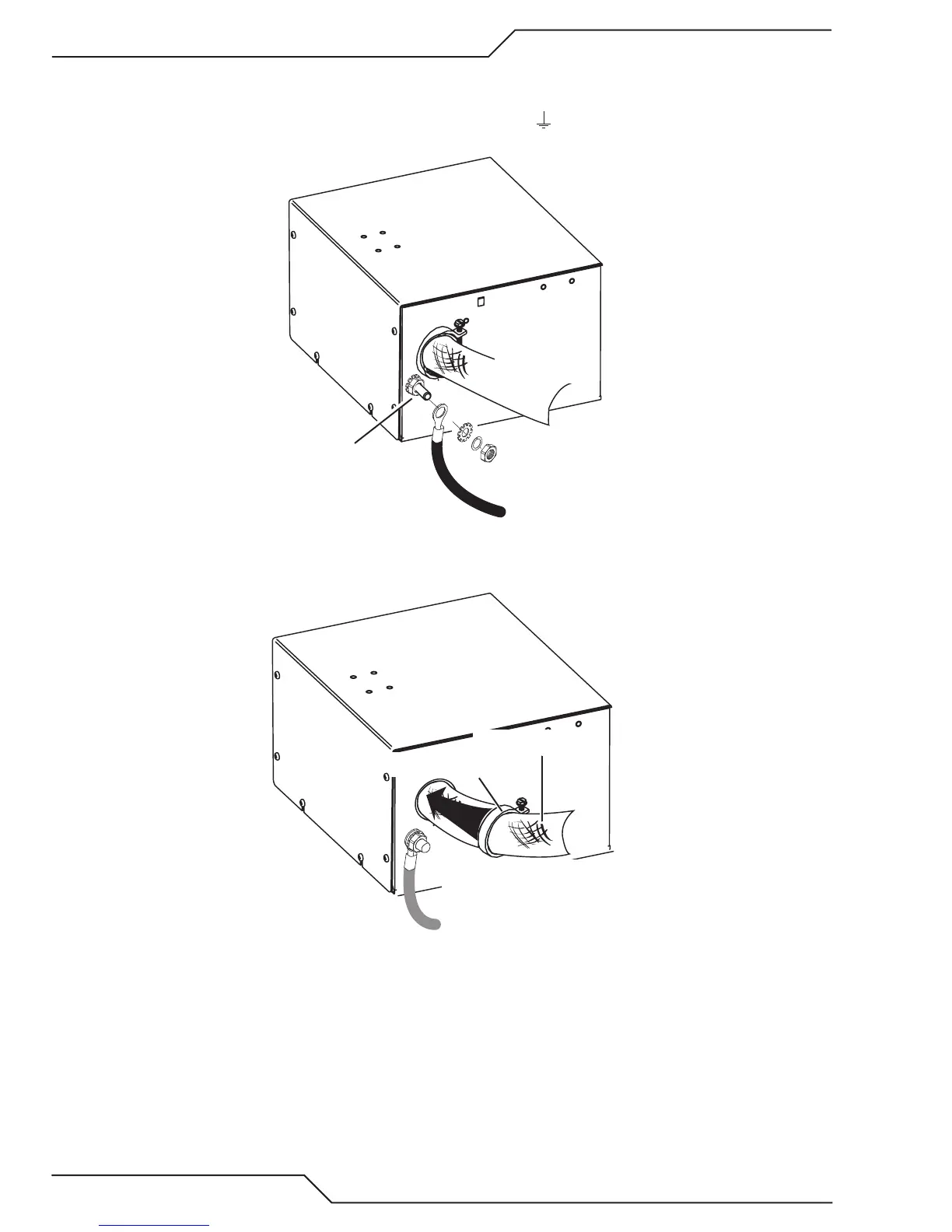

3. The Arc Starter must be grounded; the grounding terminal is marked . Refer to the previous section for grounding
details.
Ground Cable
Art # A-04758
1 Nut and 1 Washer
Remain in Place
To rch Leads
4. Use a clamp to secure the Torch Lead Shield braid brass ring to the port on the Remote Arc Starter as shown.
Art # A-04759
Coolant and Pilot Leads
to Torch Valve Assembly
Torch Leads Shield
Shield Clamp
Connect Control Cable
1. Connect the Remote Arc Starter cable to the Remote Arc Starter receptacle.
