DISCARDING THE SOLID AND
LIQUID RESIDUES
Where possible, you should empty the solid
residues into a bucket and connect the
liquid residue tray to a standpipe.
liquiD rEsiDuEs
Connect the liquid residue tray to a stand-
pipe using the drain tting that inserts into
the liquid residue tray.
When this is not possible, it is preferable to
use a bucket to collect the residues from
the tray.
To connect the liquid residue tray to the
drain tting, drill the liquid residue tray into
the drain tting area.
Make sure that the liquid ows from the tray
without any obstacles.
soliD rEsiDuEs
The solid residues can be emptied directly
into a bucket using the solid residue chute
supplied as standard, by inserting it into the
drain hole.
The solid residue bucket must be housed
inside a closed cabinet.
2
1
3

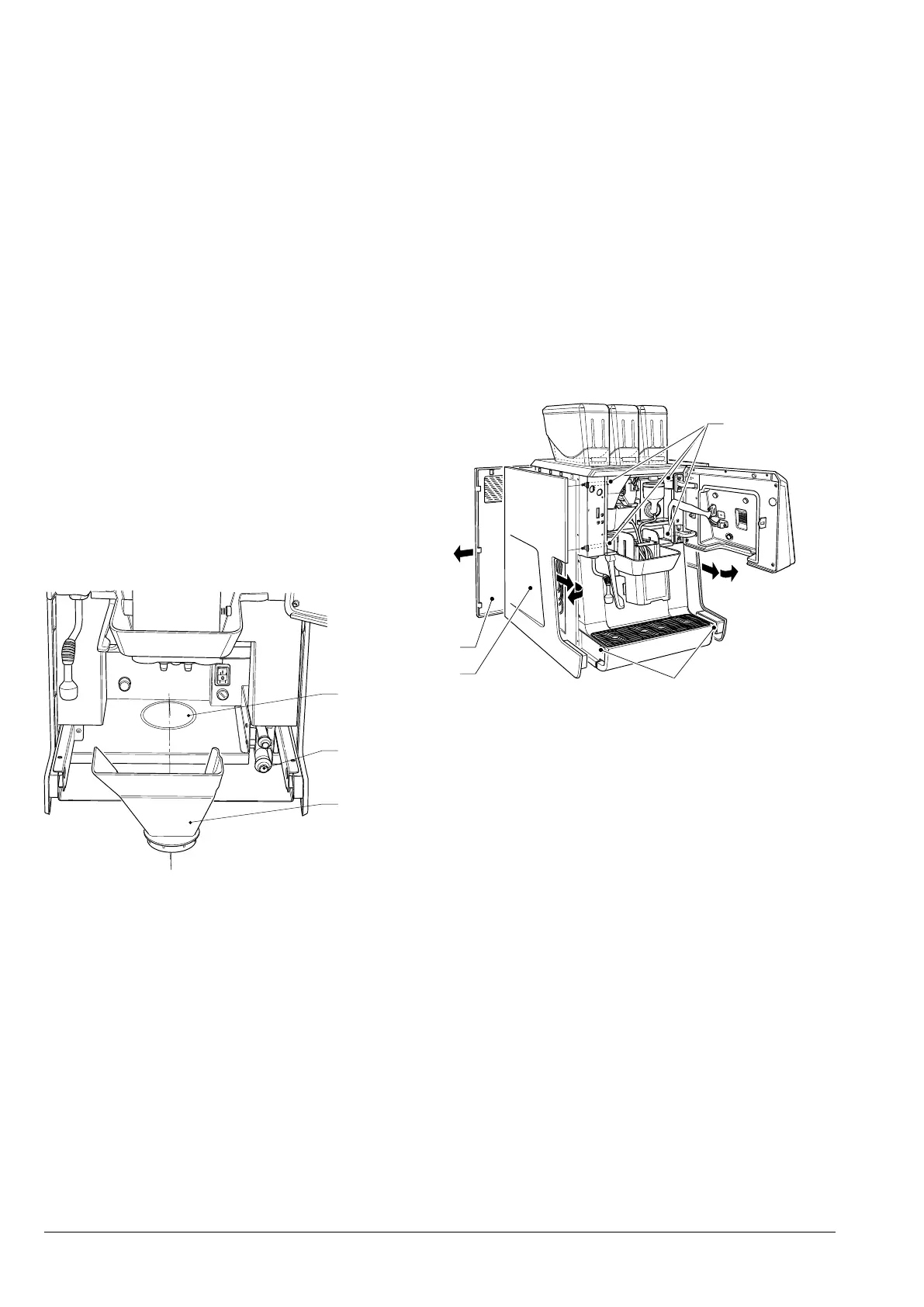

Fig. 23
1. Solid residue discharge set-up
2. Liquid residue drain fitting
3. Solid residue chute
REMOVING THE SIDE AND REAR
PANELS
To gain access to the internal components,
the panels must be removed.
1. Remove the liquid residue tray.
2. Remove the fixing screws of the side
panels.
3. Remove the fixing knurls on the side
panels.
4. Slide the side panels forward to release
them.
5. To remove the rear panel, slide it to the
left.
To reassemble the panels, repeat the pro-
cess in reverse order.
1
2
3
4
Fig. 24
1. Side panel fixing knurls
2. Rear panel
3. Side panel
4. Side panel fixing screws
