EVOCA La Radiosa - Activation Board

05-2019 0073 00 77
ACTIVATION BOARD
The board is powered at 24 V and controls
the activation of various users and sensor
signals.
The LED indicators signal the following:
-DL1 (38)
rEsEt LED;
-DL2 (19)
run LED: it flashes during normal
operation;
-DL3 (15) yellow
powEr LED: indicates the
presence of +5 V DC;
-DL4 (17) yellow LED - flow meter impuls-
es;
-DL5 (15) not used;
-DL6 (21) red LED indicates that the coffee
heating unit heating element is working;
-DL7 (20) not used.
rElay fuNctioN
RL1: Grinder
RL2: Coee-releasing electromagnet
RL3: Grinder 2*
RL4: Coee-releasing electromagnet 2*
RL5: not used
RL6: Motor mixer
RL7: 230 V safety relay
RL9: 24 V safety relay
RL11: Grinder reverse rotation relay
* models with double coee beans
The RL7 safety relay interrupts the neutral
(230 V) when the door is opened.
The RL9 safety relay interrupts the 24V
when the door is opened.
RL1
J8
J19
J21
J12
J10
J5
J7
J2 J1
J13
J4
J20
J17
J11
J14
J16
J22
J6
J23
J18
J15
J9
RL3
RL2
RL4
RL9
RL11
RL6
RL5
RL7
1
2
3
4
5
6
7
8
9
10
11 12
13 14
15
16
17
18
19
22
20
21
23
24
25
26
27
28
29
30
31

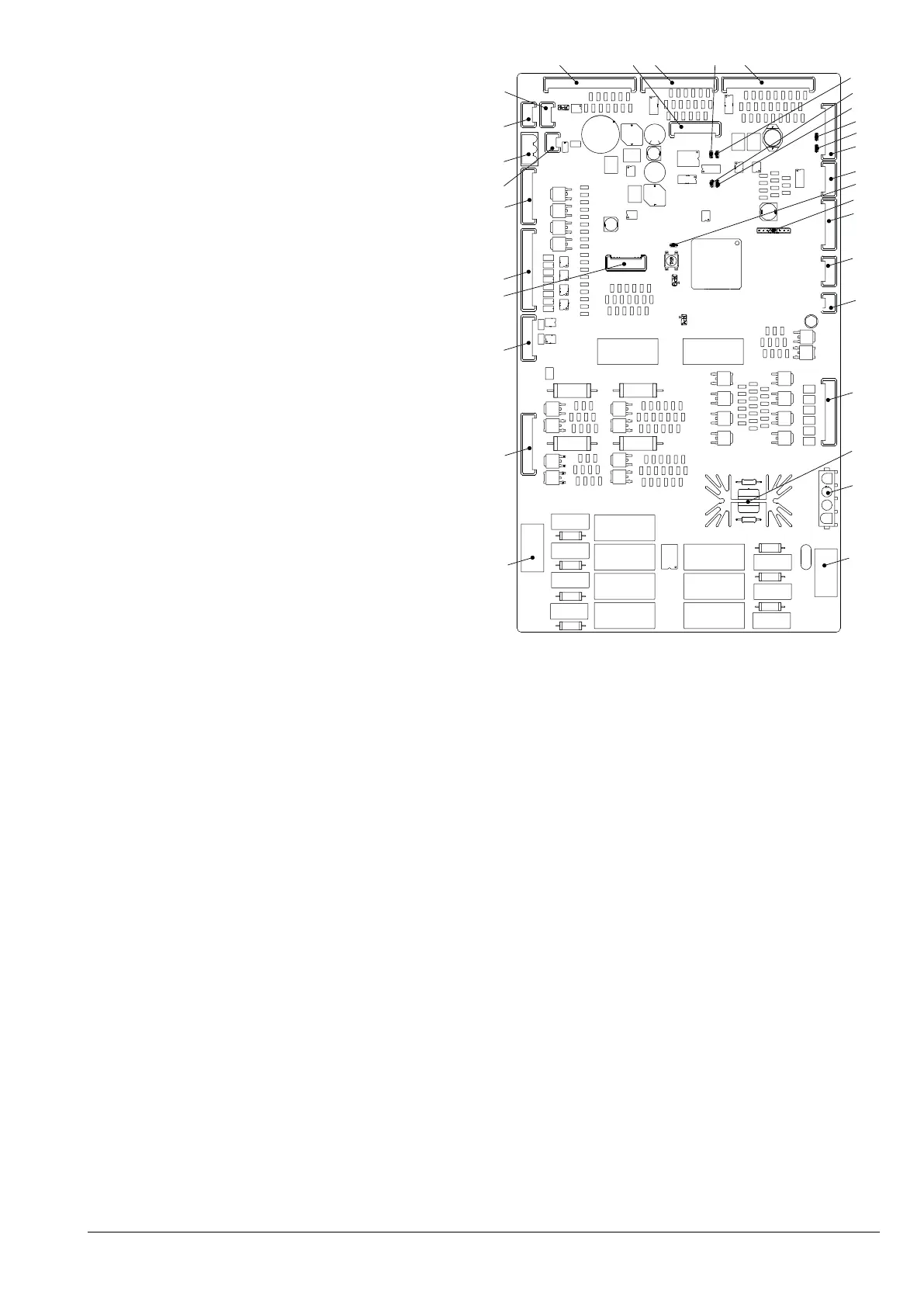

Fig. 59
1. (J8) Grinders, coffee-releasing electromagnets,
AC relay
2. (J19) Brewing unit motor, brewing unit control
microswitch
3. (J21) Brewing unit heater*
4. (J3) Water pump control board
5. (J12) Solenoid valves
6. (J10) Not used
7. (J7) Not used
8. (J5) 24 VDC board power supply
9. (J2) CAN bus
10. (J1) CAN bus
11. (J13) Digital inputs
12. (J4) Serial programmer
13. J20
14. DL5 “Pulse flow meter” LED
15. (J17) Digital inputs
16. DL4 “Pulse flow meter” LED
17. DL1 “RESET” LED
18. DL2 “RUN” LED
19. DL7 Heating unit operation LED
20. (DL6) Not used
21. (J11) Heating unit probes
22. (J14) Containers present
23. DL3 “POWER” LED
24. (J22) Payment module board
25. (J16) Not used
26. (J6) Steam suction fans
27. (J23) Liquid residue tray full
28. (J18) Grinder adjustment*, motor-doser
29. Heating unit Triac heating element(s)
30. (J15) Heating unit heating element
31. (J9) Motor-grinder, water pump, AC relay
* If present
