CLEANING THE NOZZLES AND
SPOUTS
Weekly or more frequently, depending on
how often the appliance is used and the
quality of incoming water, it is necessary
to sanitise the instant beverage dispensing
ducts and nozzles.
To clean the nozzles, proceed as follows:
1. Pull down the nozzle-moving handle.
2. Remove the cover and disconnect the
hoses from the nozzles.
3. Disconnect the coffee dispensing hose
from the flow divider nozzle.
4. Unhook the flow divider nozzle from the
nozzle support.
5. Remove the flow divider, milk frother noz-
zle (if present) and the instant beverage
nozzles.
6. Proceed to sanitise all the components,
whilst taking care to mechanically re-
move visible residues and films using
swabs or brushes, if necessary.
7. Clean the spouts (if present) with a cloth
that has been dampened with sanitising
solution.
DisassEmbliNg tHE milk NozzlE
Proceed as follows:
1. Disconnect the milk and wash hoses.
Turn the quick-release ring and pull out
the hose to remove it.
2. Turn the fixing wing screws to release the
milk nozzle.
3. Remove the milk nozzle in a downwards
direction.
4. To reassemble the parts, repeat the pro-
cess in reverse order.
1
3
4
2
5

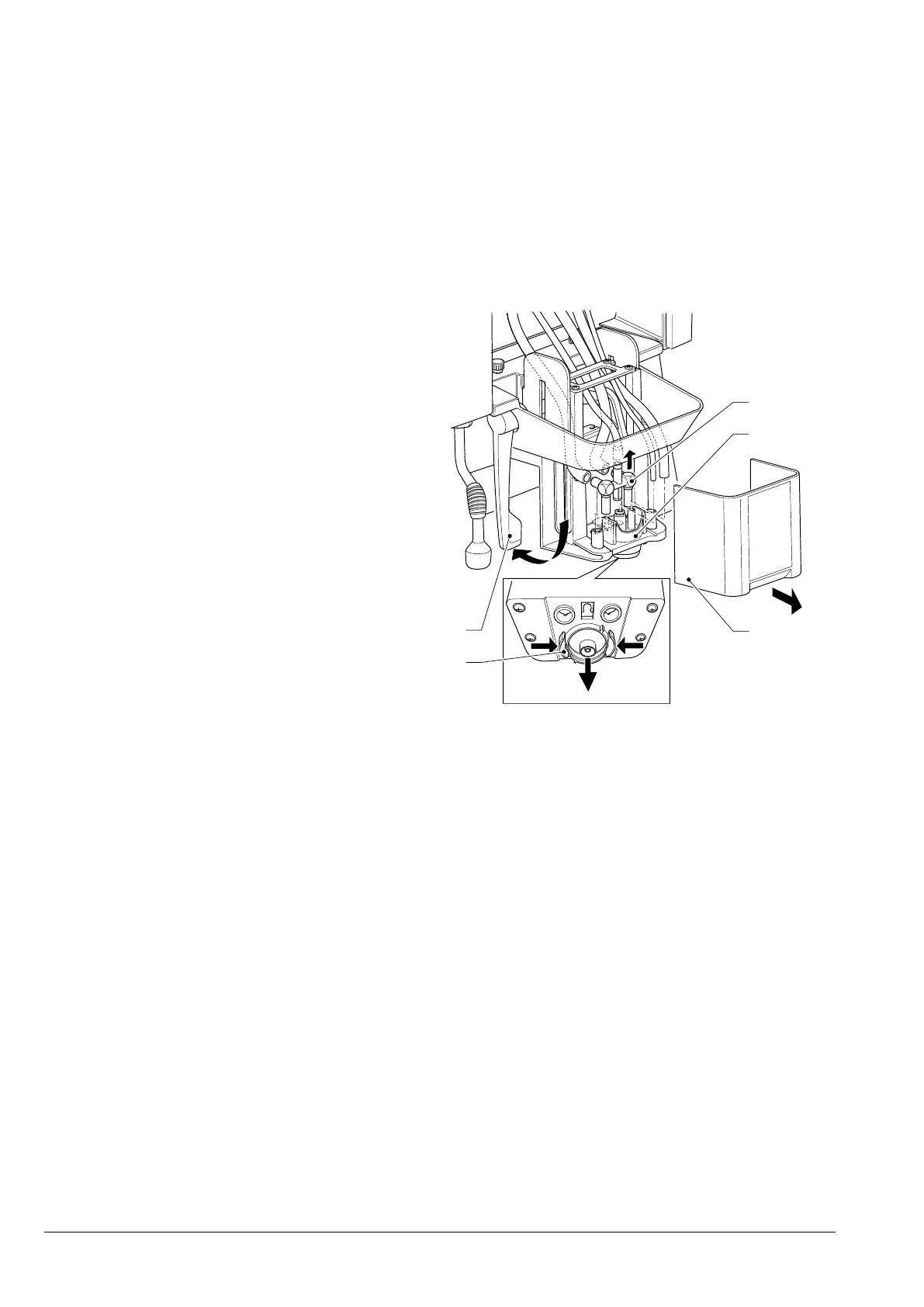

Fig. 53
1. Nozzle-moving handle
2. Removable nozzle cover
3. Flow divider nozzle
4. Milk frother nozzle
5. Milk frother nozzle fixing wing screws
