EVOMILK CAPPUCCINO MAKER
BOARD
The board controls and manages the
Evomilk milk module.
J7
J12
J11
J10
J9
J13
J100
J1
12
13

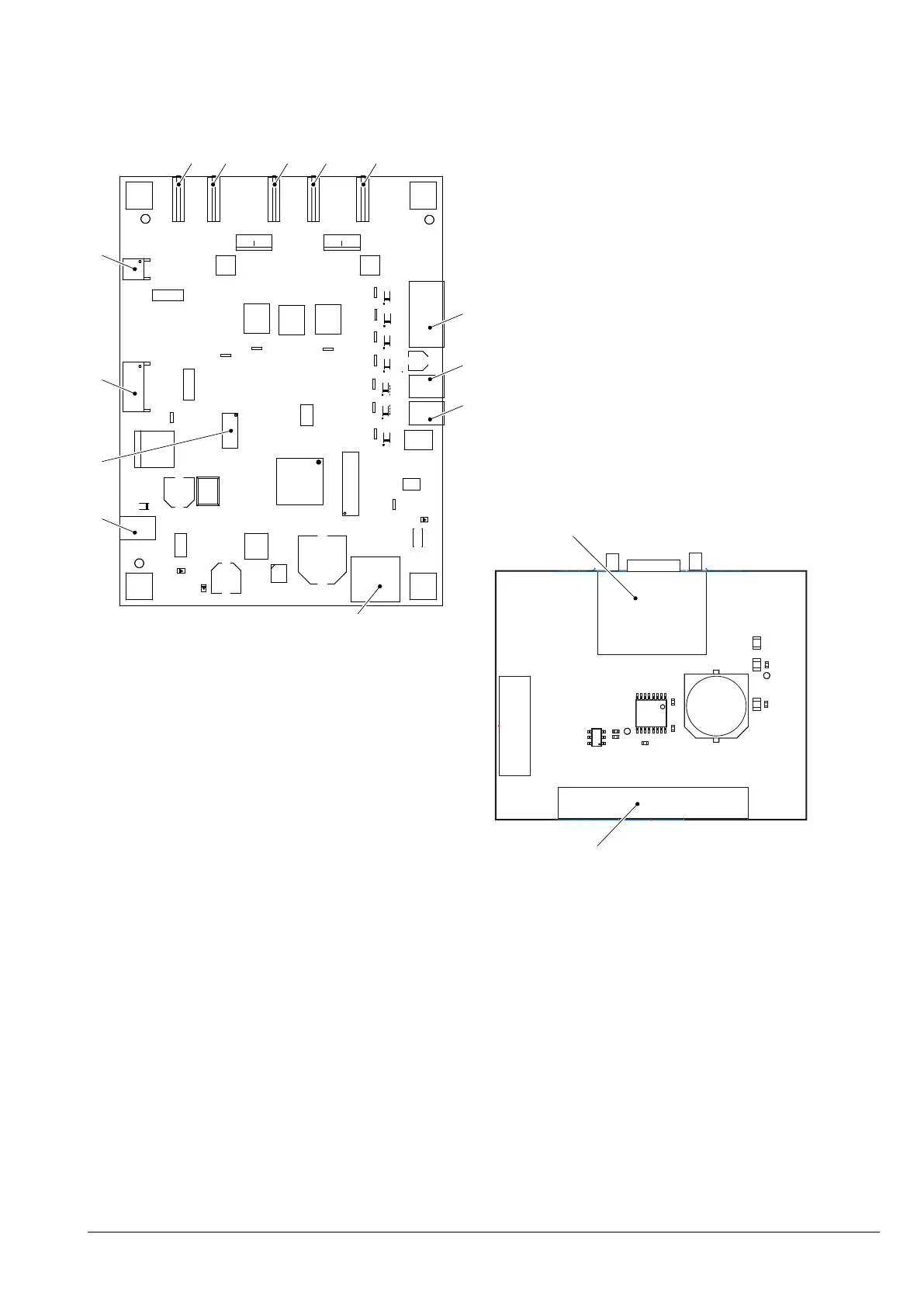

Fig. 61
1. (J6) 230 V heater heating element (neutral)
2. (J5) Neutral milk heater
3. (J3) Milk heater heating element 1
4. (J8) 230 V heater heating element (phase)
5. (J4) Milk heater heating element 2
6. (J9) Wash solenoid valve
7. (J10) Air solenoid valve
8. (J11) Not used
9. (J1) 24 V and CAN bus power supply
10. (J13) Milk pump
11. (J100) Flow sensor
12. (J12) Not used
13. (J7) Heater temperature sensor
POWER SUPPLY
The power supply provides a voltage of 24
VDC to the appliance’s electronics and the
24 VDC components.
The power supply does not require mainte-
nance and/or calibration.
If any work needs to be carried out on the
power supply, e.g. for replacement, always
disconnect the appliance from the electrical
mains.
When replacing the power supply,
power supply are the same as the pre-
vious one.
PAYMENT MODULE BOARD
Certain models only.
The board allows the MDB payment system
to be managed.
The board is located on the activation
board.
J2
J3
Fig. 62
1. To the touchscreen
2. Payment system
