ELECTRICAL CONNECTION
The appliance requires a single-phase
voltage of 230-240 V∿ and it is protected by
a 15 A fuse.
The appliance must be connected to a
power supply system that has a maxi-
For the connection, make sure that the
nameplate details correspond to those of
the mains and in particular, that the voltage
is within the recommended limits for the
connection points.
It is mandatory to use a main switch
that complies with the current installa-
it is located in an accessible position.
The switch must have the suitable char-
acteristics to withstand the maximum
required load and ensure a complete
disconnection from the power supply
under conditions of overvoltage cate-
gory III and, therefore, protect the cir-
cuit against ground faults, overloads
and short circuits.
The switch, socket and plug must all be
placed in an accessible position.
The appliance is to be considered electri-
cally safe only when it has been correctly
connected to an ecient earthing system,
in accordance with the current safety regu-
lations.
It is important to have this fundamental
-
The power supply cable is exible, has a
non-detachable plug and is supplied with
the appliance.
The cable connection should be made on
the appropriate terminal board on the right
side of the appliance, as shown on the wir-
ing diagram.
To connect the cable, the side panel must
be removed.
Any connection cable replacements must
solely be carried out by qualied person-
nel and using only the following types of
exible cables: H05RN-F, H05VV-F or
H07RN-F 3x1-1.5 mm² cross section.
The use of adapters, multiple plugs
The manufacturer shall not be held
responsible for any damage caused
due to the non-observance of the
above-mentioned precautions.
L
N
1 2 3

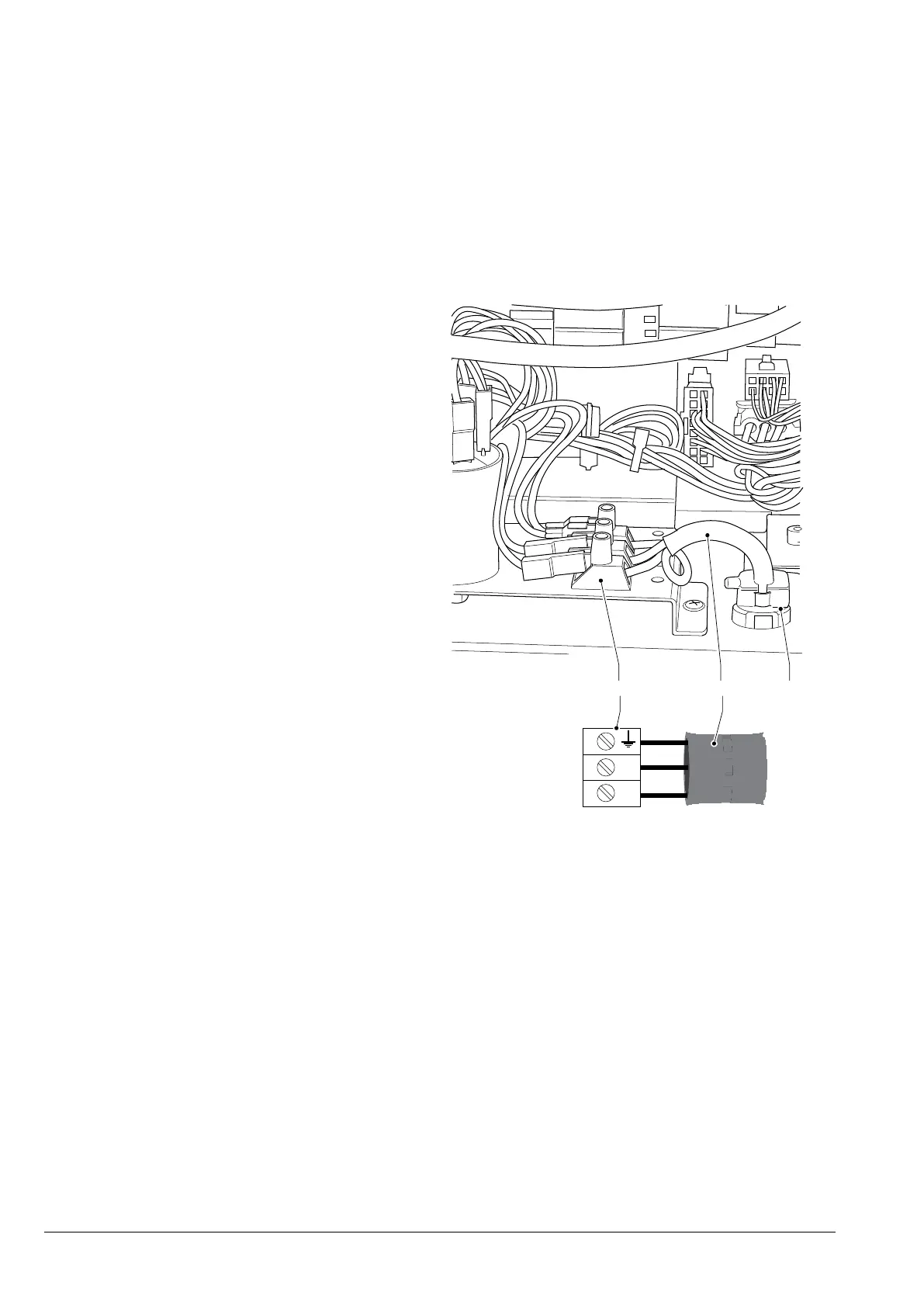

Fig. 26
1. Connection terminal board
2. Electric cable
3. Cable clamp
