EVOCA La Radiosa - Hydraulic Circuit Diagram

05-2019 0073 00
1. Mains water solenoid valve
2. Pressure switch
3. Milk tray
4. Evomilk module
5. Water pump
6. Flow meter
7. Milk/wash 3-way solenoid valve
8. Heating unit
9. Safety valve
10. Hot water spout
11. Milk frother nozzle
12. Coffee nozzles
13. Liquid residue tray
14. Pressure reducer
15. Check valve
16. Dispensing nozzles
17. Wash hose
18. Milk hose

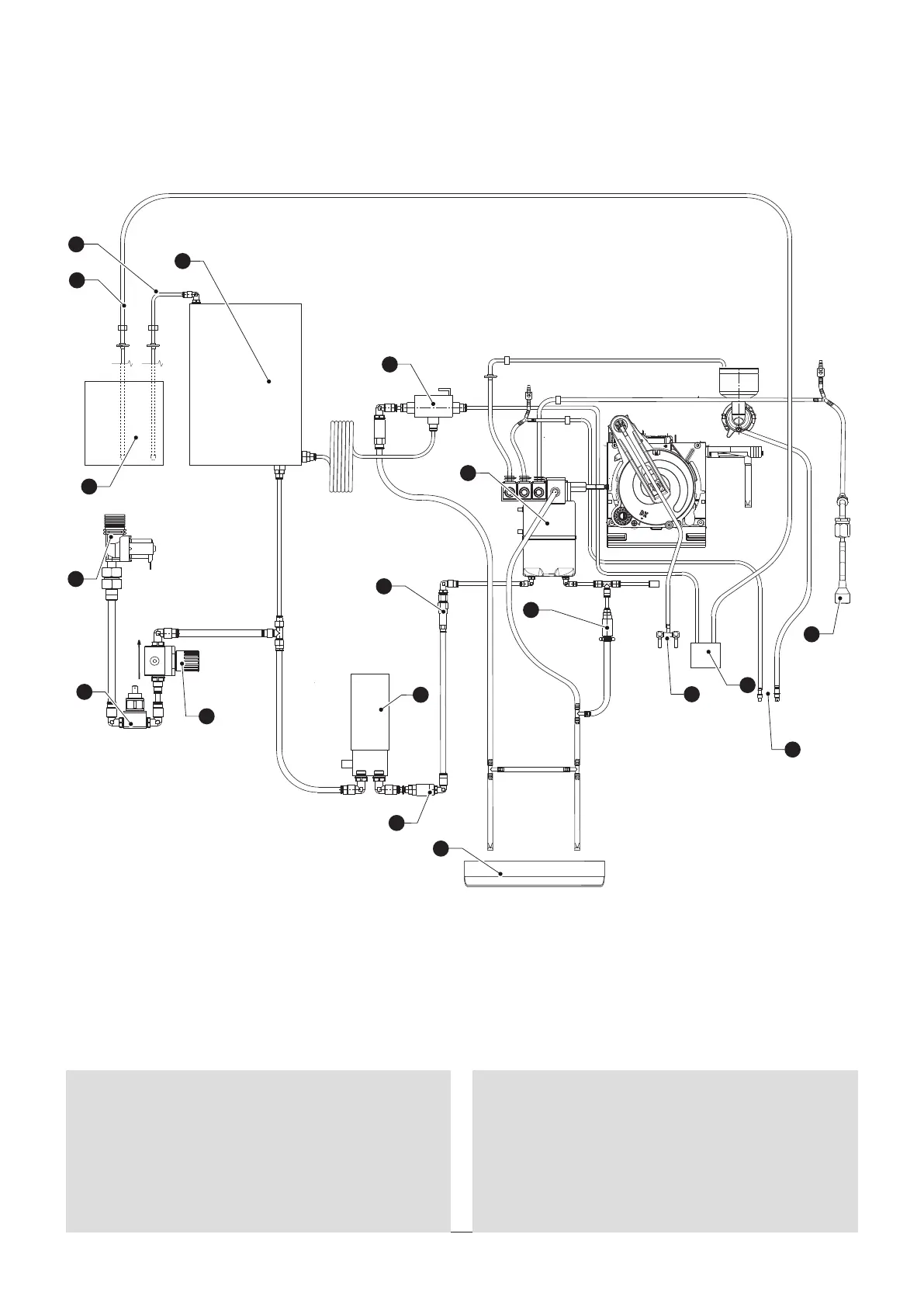

HYDRAULIC CIRCUIT
with a cappuccino maker
3
2
1
1
2
3
4
5
6
7
8
9
10
12
16
14
11
13
17
18
15
