Test Setup - Test Configurator, Timer, and System
74 MAX-800 Series
Modify Structure Button

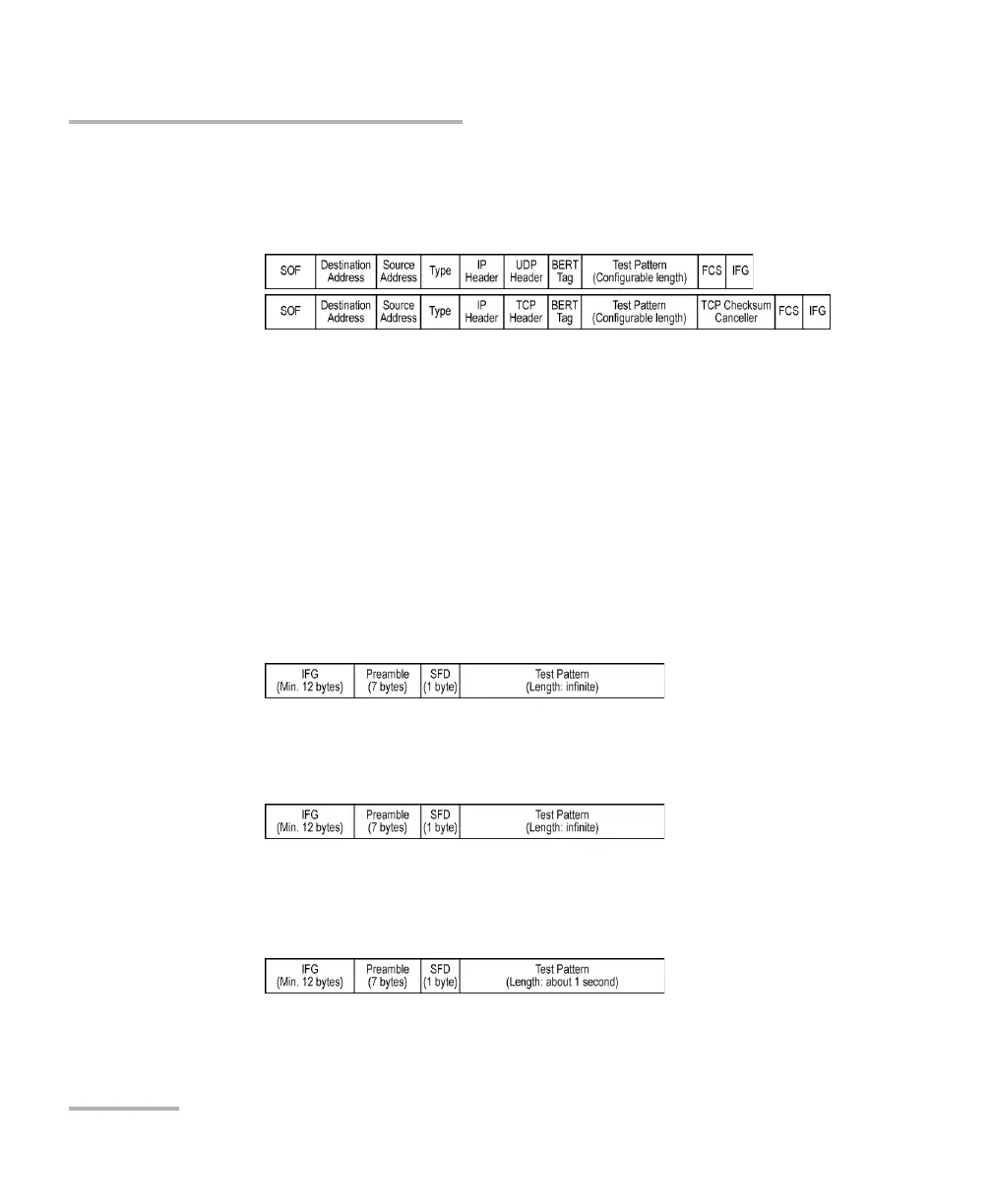

Framed Layer 3/4 (default): Frames of x
1
bytes with UDP (default)
or TCP network layer that complies with IEEE 802a Ethernet II
standard.
Unframed (Interop) is only available with optical interface up
to 10G LAN:
For Seed A and Seed B, available with 10G LAN, the pattern is
generated by the PCS scrambler from a specific seed. The pattern
is not encoded.
For PRBS31 Unscrambled, available with 10G LAN, the pattern is
generated at the PCS layer. The pattern is not encoded and not
scrambled.
For PRBS and User Pattern: Pattern generated by the PCS
scrambler. The pattern is encoded.
Unframed is only available with optical interface up to 10G LAN:
Encoded pattern generated by the PCS scrambler.
Unframed with Sync is only available with optical interface up to
10G LAN: Pattern of a length corresponding to the number of bytes
transmitted in 1 second.
