XTP CrossPoint Series • Installation 18
XTP CP 4o Fiber 4K (fiber optic output board)
OUTPUTS
SIGLINK
XTP OUT
LANLAN LANLAN
SIG LINK
XTP OUT
SIGLINK
XTP OUT
SIGLINK
XTP OUT
OVER FIBER
XTP CP 4o FIBER 4K
RS-232
IR
Tx Rx GTxRx
RS-232
IR
Tx Rx GTxRx
RS-232
IR
Tx Rx GTxRx
RS-232
IR
Tx Rx GTxRx
11 1111 1122 2222 22 33

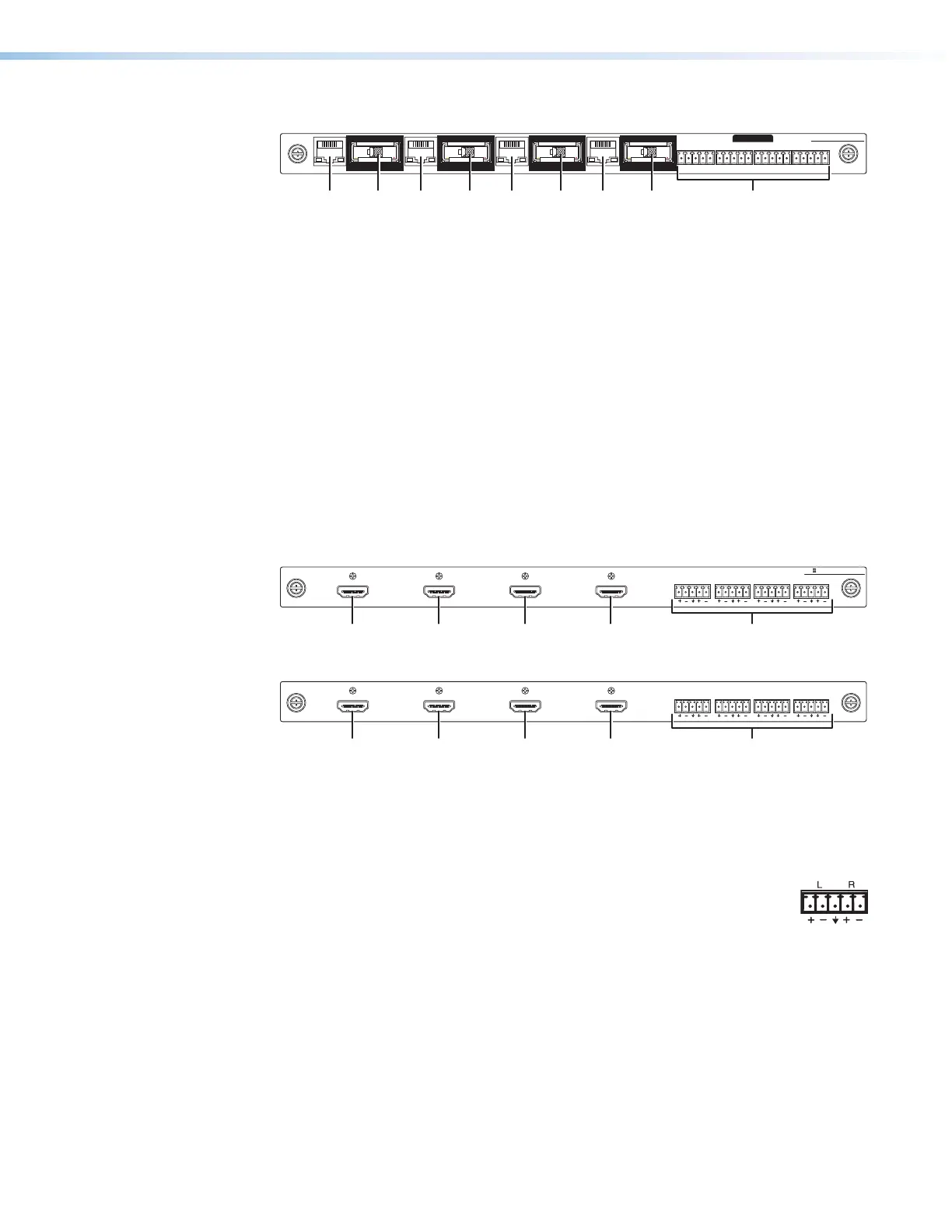

Figure 12. Fiber Optic Output Board Connectors and Indicators
1
XTP Out connectors — Connect a fiber optic cable between the Rx connector
on a compatible Extron fiber optic receiver and this connector. This board uses
SFP modules with industry-standard LC fiber optics connectors to provide reliable
physical connectivity and precise fiber core alignment.
Signal LED — Indicates that a cable is connected to a fiber optic receiver.
Link LED — Indicates that a valid fiber optic signal is detected.
2
LAN (Ethernet) connectors — As desired, connect a TP cable between a
host device or control LAN and this connector for passive extension to the LAN
(Ethernet) connector on the connected endpoint (see TP connectors on
page 19 to wire the connector).
3
IR/RS-232 Over Fiber Connectors — If desired, connect serial RS-232 signals,
modulated IR signals, or both to these 3.5 mm, 5-pole captive screw connectors
for bidirectional RS-232 and IR communications on the associated inputs (see
RS-232 and IR connectors on page 22 to wire the connectors).
XTP II CP 4o 4K PLUS and XTP CP 4o HDMI (HDMI Output board)
AUDIO
LR LR LR LR
OUTPUTS
XTP II CP 4o HD 4K PLUS
66 6666 66 77
Figure 13. 4K HDMI Output Board Connectors
OUT
XTP CP 4o HDMI
AUDIO
LR LR LR LR
OUT
2211 11 11 11
Figure 14. HDMI Output Board Connectors
1
Output connector — Connect an HDMI cable between this port and an HDMI
video display (see HDMI connectors on page 22 for pin assignments and to
use the LockIt HDMI Cable Lacing Bracket to secure the connector to the
transmitter).
2
Audio Outputs (analog audio) connectors — Connect audio
devices such as an audio amplifier or powered speakers, to these
3.5 mm, 5-pole captive screw connectors. These connectors output
unamplified, level audio, whether it is tied from an analog input or de-embedded
from a digital input (see Analog audio output connectors on page 25 to wire
the connectors).
