Chapter 6 Fastening Operation
PAGE 6-80

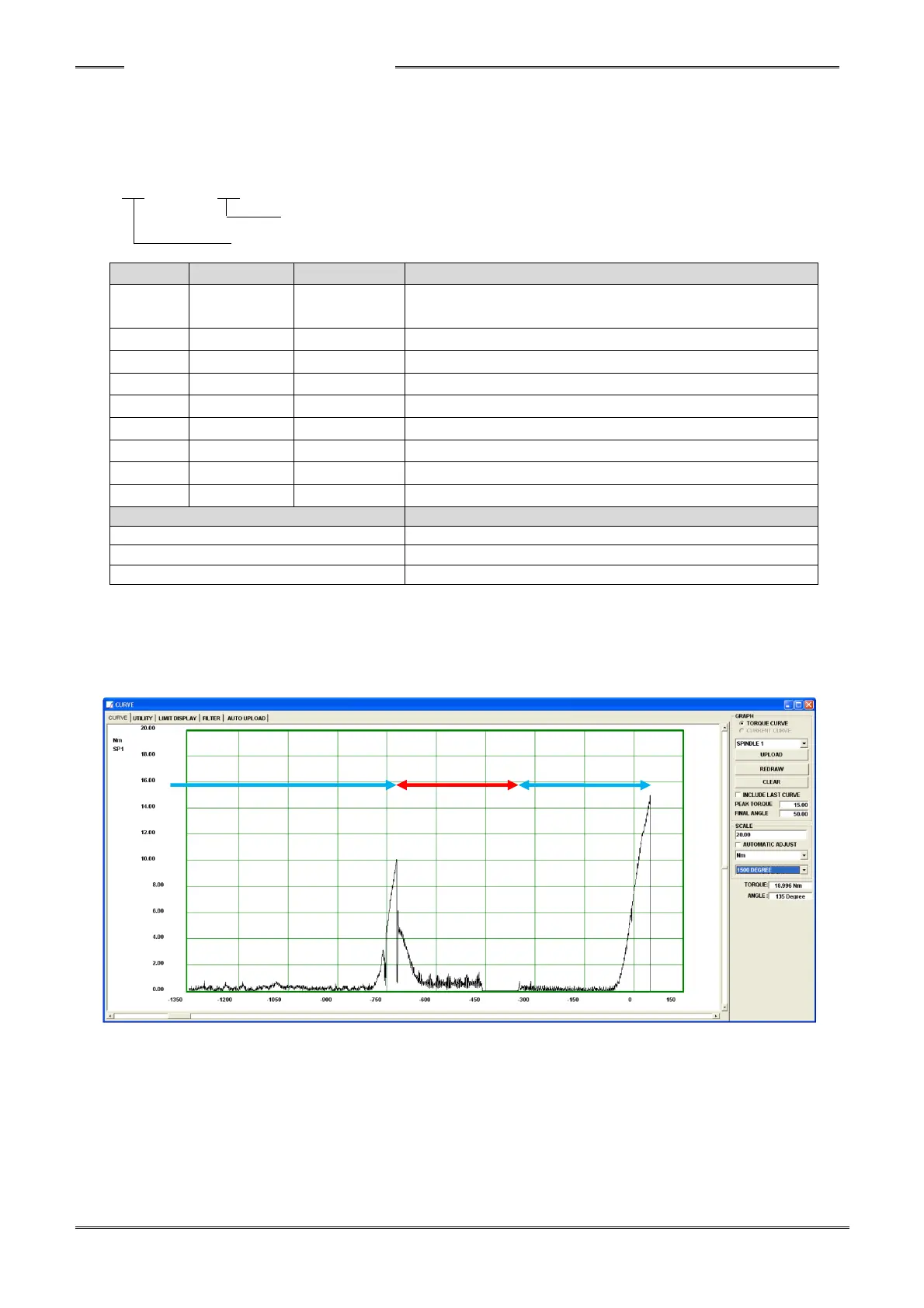

<Program Examples2>
Continuous Sequence (Automatic Sequence Function):
Six digits of data, which designate the parameter No. and the dwell time (dwell after fastening) before
entering the next stage, are used in each stage.
0 1 . 0 0 . 0 5
Stage
Data No.
Data
Operation
580
2 or (3):
Continuous
The continuous sequence is selected.
1
581
01.00.05
Fastening using parameter 1 followed by 0.5 sec. dwell
2
582
02.00.03
Fastening using parameter 2 followed by 0.3 sec. dwell
3
583
03.00.00
Fastening using parameter 3 followed by 0.0 sec. dwell
4
584
00.00.00
Sequence end.
5
585
00.00.00
6
586
00.00.00
7
587
00.00.00
8
588
00.00.00
Parameter No.
Operation
1
Fastening 10Nm
2
Loosening operation (angle method, CCW -360 degrees)
3
Fastening 15Nm
*2: In Continuous Sequence 1 mode, if the start trigger is released in the middle of the
sequence, the sequence is ended without judgment (no fastening results are made).
3: In the Continuous Sequence 2 mode, if the start trigger is released in the middle of the
sequence, the sequence is ended with a REJECT judgment.
Parameter 1
Parameter 2
Parameter 3
Fastening parameter No.
The dwell time (in msec) is executed after completion of fastening.
