FEC Handheld Nutrunner HFC3000 - Controller

Chapter 3 System Description
PAGE 3-2
3-1 Controller

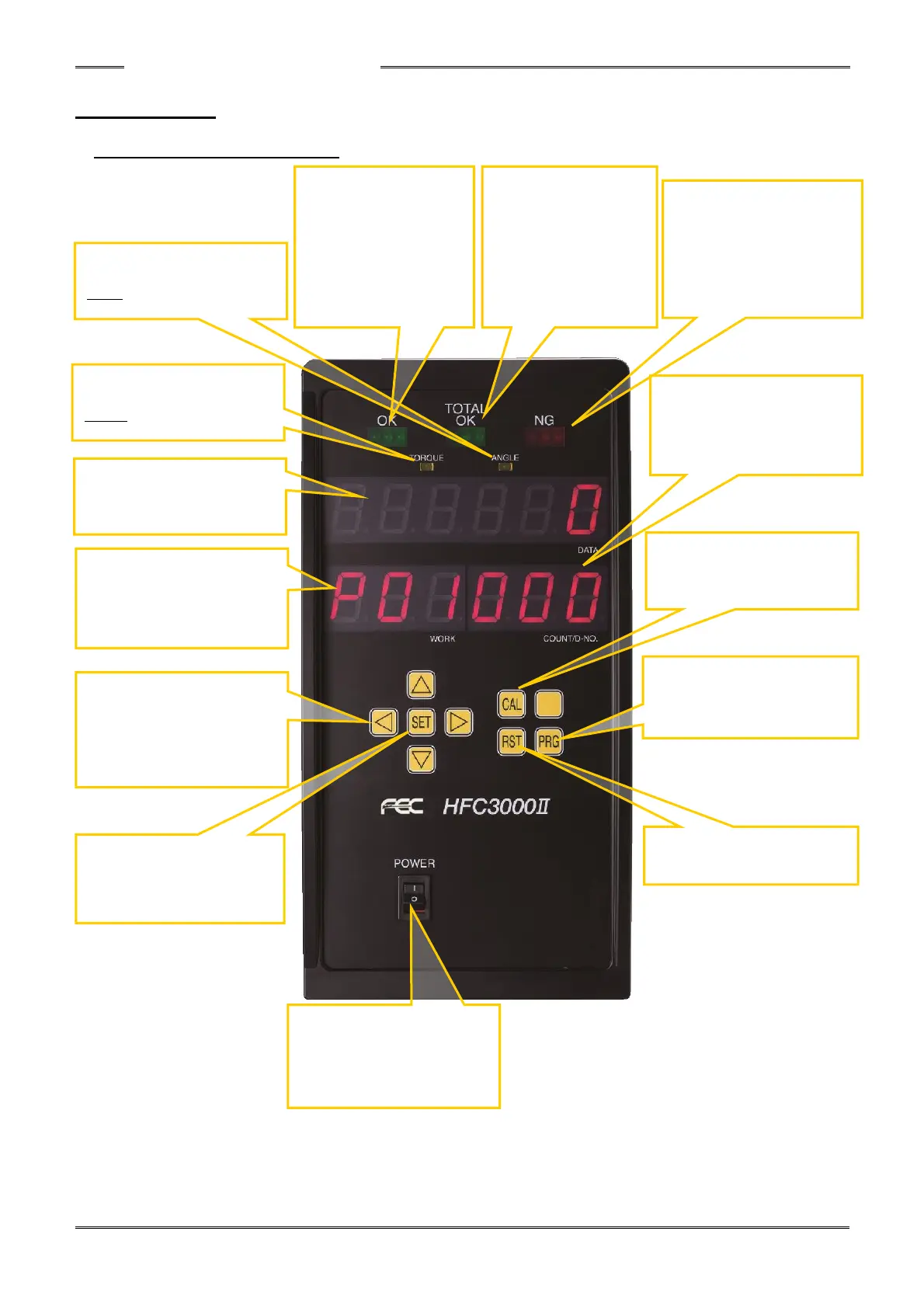

3-1-1 Controller Front Panel
POWER
Controller main power
switch
CAL
Manual calibration check
pushbutton
RST
Reset pushbutton
PRG
Program mode select
pushbutton
SET
Button for finalizing a
change of data
◁▷▵▿
Cursor buttons for
WORK, parameter, and
data setting.
NG (REJECT)
Lights when one of the
preset judgment limits is
not met by the fastening
results.
ANGLE
Lit when in the fastening
Angle result display mode.
TORQUE
Lit when in the fastening
Torque result display mode.
6-dight 7-segment LED
Displays a set value,
fastening result, or other
data.
3-dight 7-segment LED
Displays the WORK No.
(parameter).
3-digit 7-segment LED
COUNT/D-No.
Displays the cycle count
and parameter Data No.
TOTAL OK
Lights when acceptable
(OK) fastening results
are obtained for the
designated number of
times, and turns off
when the batch reset
input signal is ON.
OK (ACCEPT)
Lights when the
fastening results are
within all preset
judgment limits, and
flashes while TOTAL
OK is ON.
