FEC Handheld Nutrunner HFC3000 - Tool Cable Specifications

Chapter 4 Installation and Wiring
PAGE 4-6

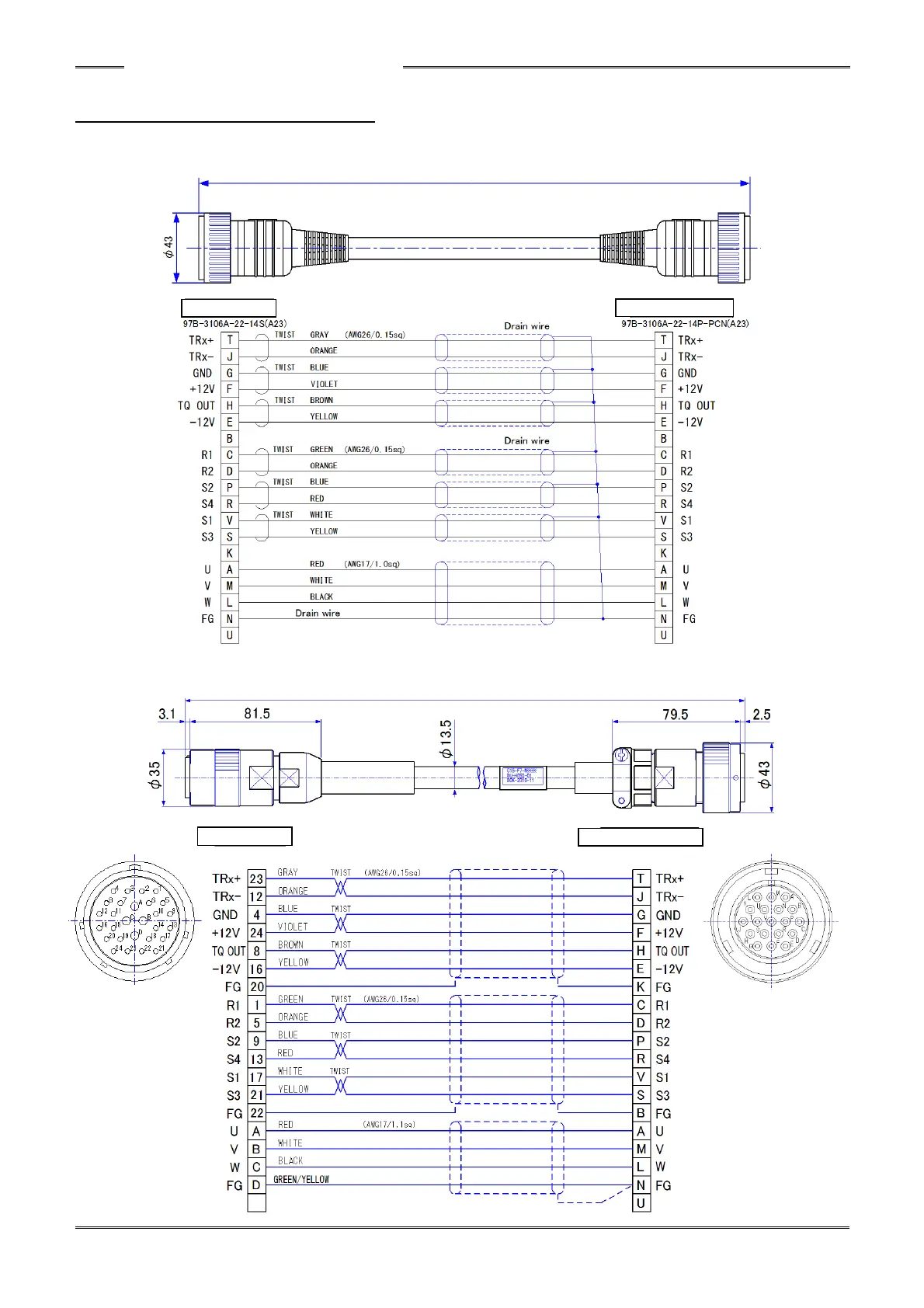

4-4 Tool Cable Specifications
■Tool Cable (Cable type: FEB-1309-M**) (For old model tools only (“-01A”, “-02A” suffix))
■Tool Cable (Cable type: C15-F7-M**) (For new model tools only (“-10x”, “-20x” suffix))
Tool Side
Controller side
Tool Side
Controller Side
(AWG16-4/AWG24-24)
(#22 shell-19)
Total length L
Total length L
