Chapter 4 Installation and Wiring
PAGE 4-3

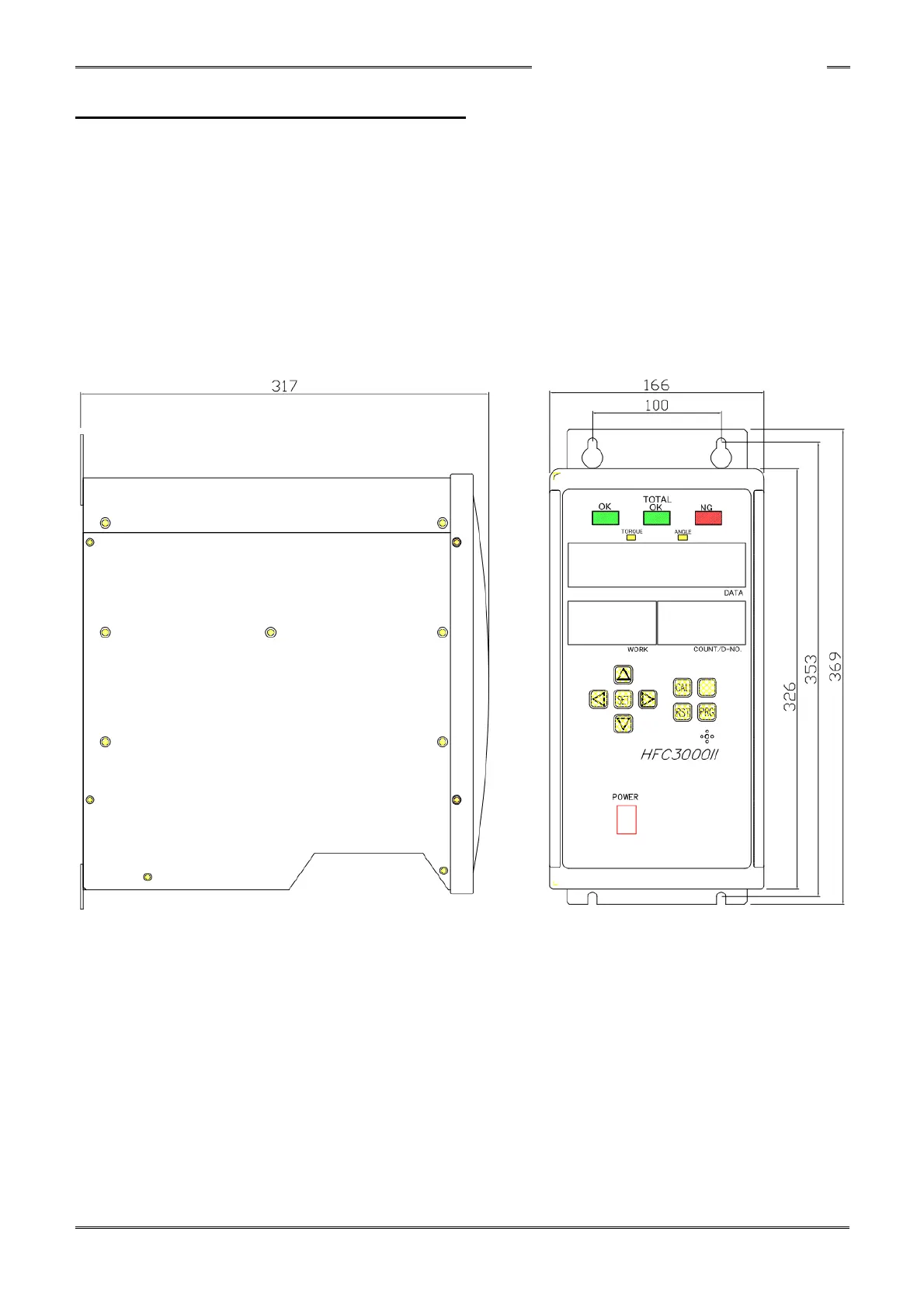

4-2 Controller Installation Dimensions
Mounting: 4 points (Rear panel) M6 screws: Use screws with a length equivalent to the installation plate
thickness +9mm.
Weight: 8.5 kg (18.7lb)
<Mounting Precautions>
◆ Do not install the unit at a location that is exposed to vibration.
◆ Install the controller at a location where the temperature, humidity, and other operating environmental
conditions are satisfied.
◆ Do not use a mounting screw longer than the above mentioned size.
