Chapter 6 Fastening Operation
PAGE 6-75

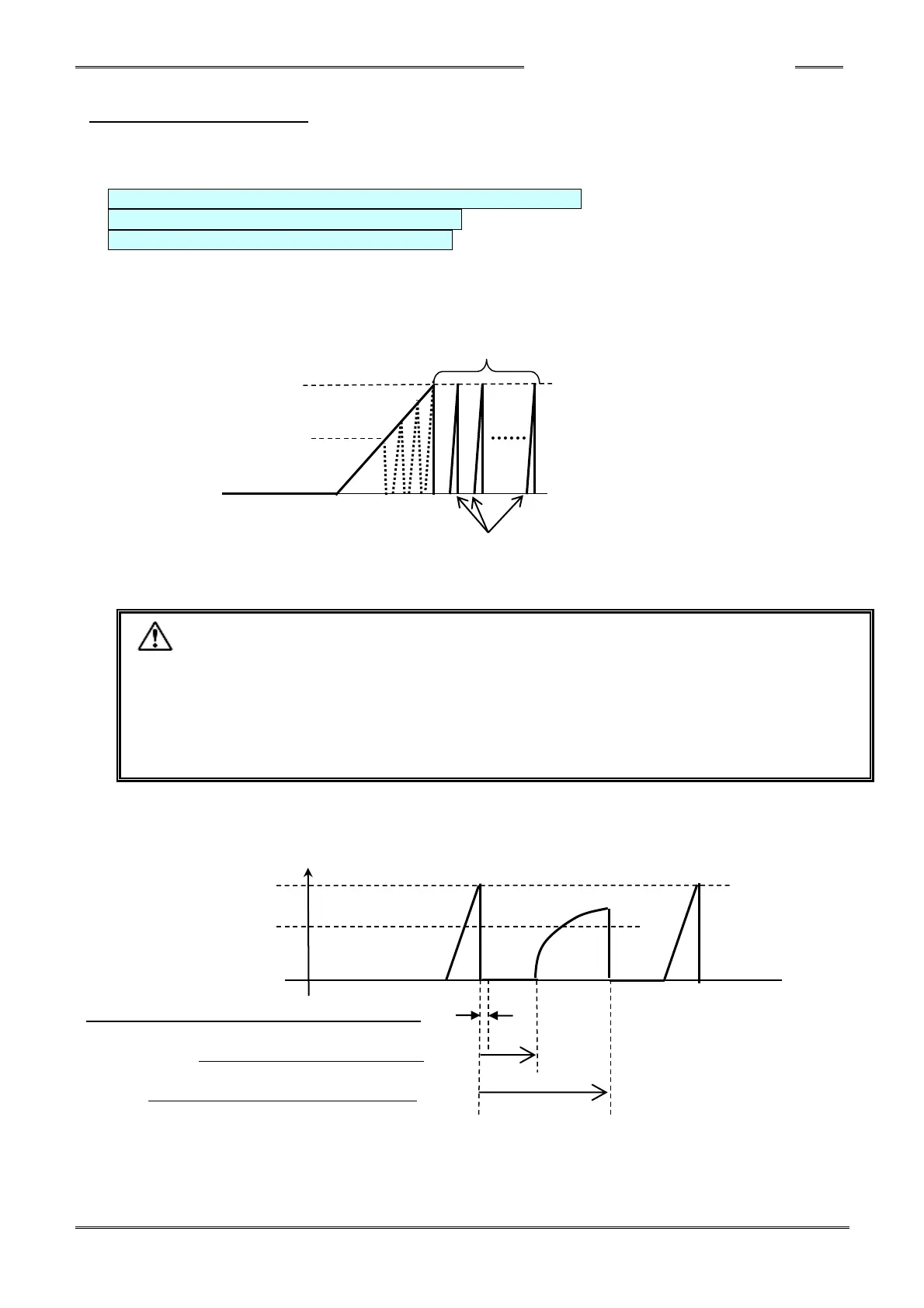

6-6-3 PULSE OPERATION
Recovery Pulse Operation
D-No.005 After Fastening Operation: Recovery Pulse ON Set value: xxxx1x
D-No.550 Recovery Pulsing Count [times] Setting range: 0~50
D-No.551 Recovery Pulsing Speed [rpm] Setting range: within tool speed range
Setting “1” for [Data No. 005 After Fastening Operation] turns ON Recovery Pulse
Operation which will perform refastening for the number of times defined by the recovery
pulsing count (D-No. 550) after fastening to the standard torque (D-No. 103).
Operation speed: Recovery pulsing speed (D-No. 551)
▼Limiting by the current value is applied at the end of fastening.
103: Standard Torque
105: 1st Torque
550: Recovery Pulsing Count 0~50 times
551: Recovery Pulsing Speed [rpm]
【 Note as shown below 】
● Be sure to set the parameters so that [Pulse Fastening Operation Time] > [Pulse
Fastening Wait Time].
●If the Standard torque is not reached within the operating time, extend the Pulse
Fastening Operation Time until 1ST torque is detected.
If D-No 314 [2nd Time High Limit] is reached before 1ST torque is detected, the
Spindle judgment is a REJECT.
