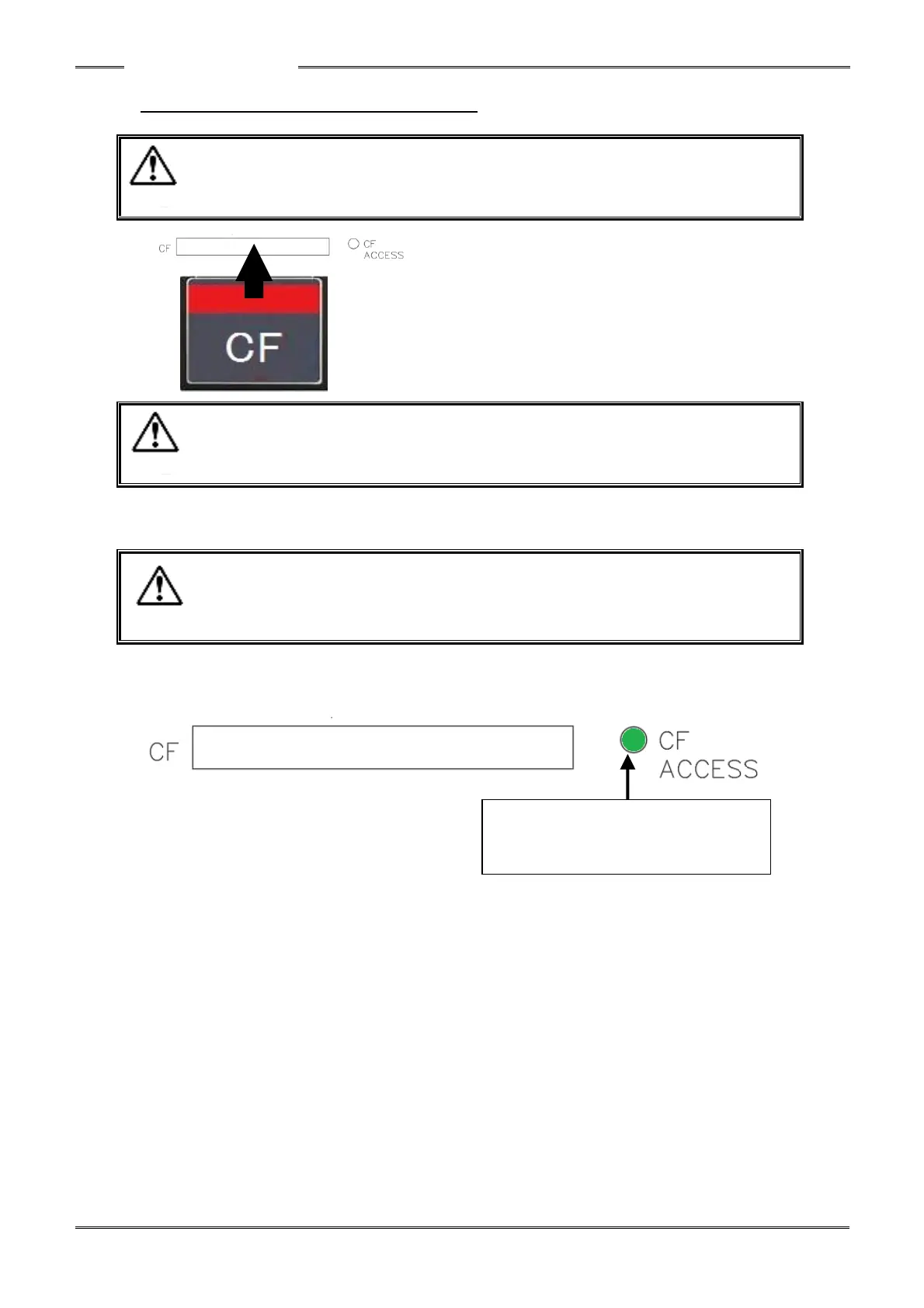

8-1-4 Storing Data in the CF Memory Card
1. Insert the CF card in the CF card slot (with the controller power OFF)
・ When the control power is turned ON with the CF card installed in the slot,
more time is required for the controller to become operable because a file
storage folder is generated in the CF card.
・Insert the CF card slowly and with its top surface to the left side. Although
the card cannot be inserted in the opposite orientation, a malfunction of the
controller or the CF card may occur if the card is forcibly pressed in.
2. Data storage is executed after the fastening operation has ended (once the CF data storage is
enabled)
・ Do not remove the card from the slot or turn OFF the control power while
data storage is in progress or damage may occur to the CF card and/or data
may become damaged.
3. When data is being stored in the CF card, the CF ACCESS LED is lit in green.
If storage in the CF card fails, the CF ACCESS LED lights up red.
CF ACCESS
Green: Data storage in progress.
Red: Data storage failed.
