Chapter 9 Fieldbus I/O Interfaces
PAGE 9-36
9-4-2 Description of the Hardware
● GSD File
A GSD file is an information file related to the communication specifications of PROFIBUS
DP-V1-compatible device and a separate, individual file exists for each device. The GSD file is necessary for
using the PROFIBUS DP-V1 configuration software to connect the HFC3000 and the PLC. The GSD file is
included in the System Reference CD for the HFC3000 system.

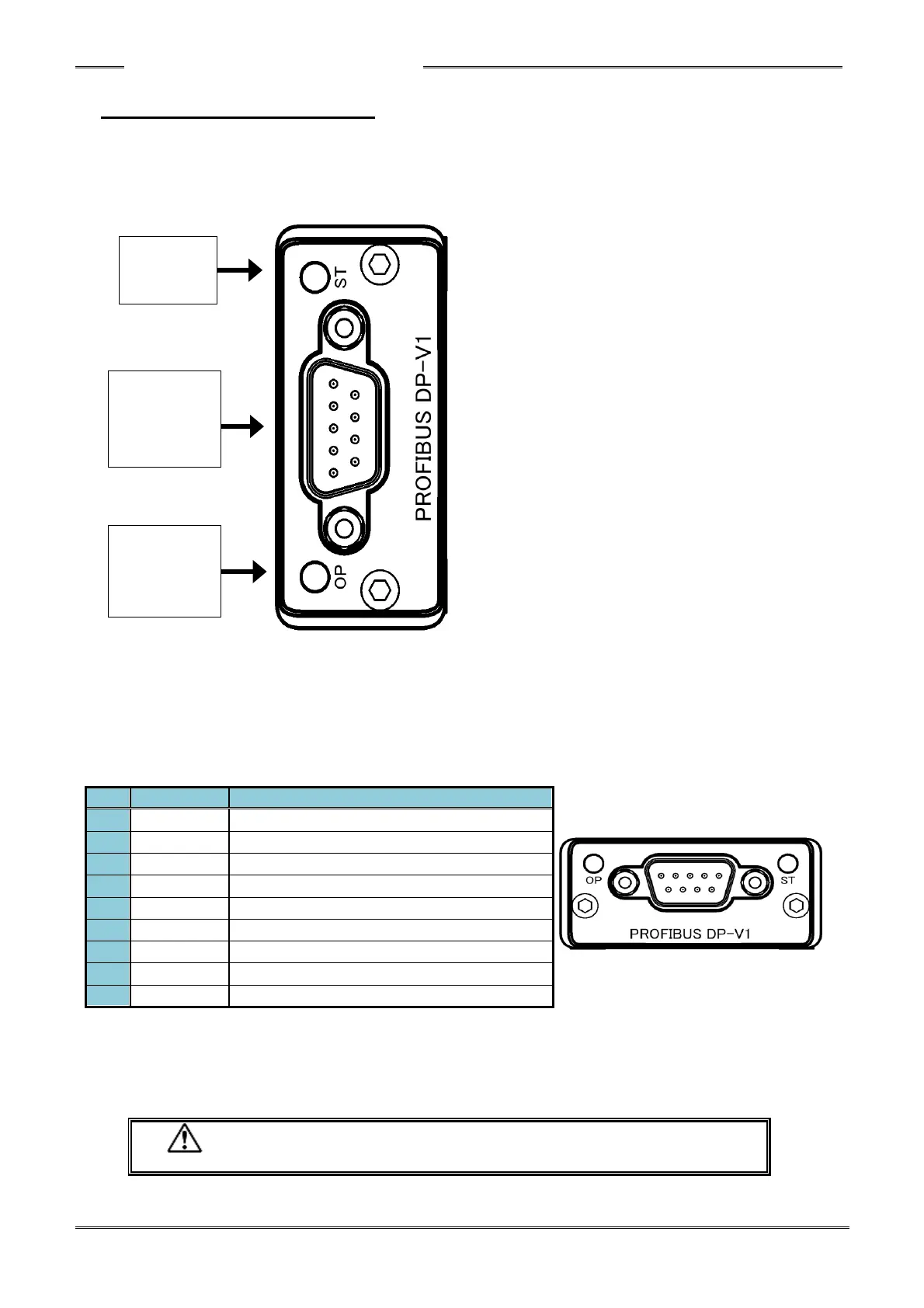

● Module Pin Configuration
No.
Signal
Description
1
-
Connection prohibited
2
-
Connection prohibited
3
RxD/TxD-P
Data sending/receiving + (B line ･ P side)
4
CNTR-P
RTS
5
DGND
Communication power (ground side)
6
VP＋5
Communication power (+5V side)
7
-
Connection prohibited
8
RxD/TxD-N
Data sending/receiving - (A line ･ N side)
9
-
Connection prohibited
* The connector (D-SUB 9-pin plug) at the cable side and the cable are not provided with the equipment.
･ Be sure to connect the cable with all power being OFF.
Status
LED
Operation
Mode
LED
PROFIBUS
DP-V1
Connetor
Caution
5 1
9 6
