Chapter 9 Fieldbus I/O Interfaces
PAGE 9-45
9-6-2 Description of the Hardware
● GSDML File
A GSDML file is an information file related to the communication specifications of PROFINET I/O-compatible
device and a separate, individual file exists for each device. The GSDML file is necessary for using the
PROFINET I/O configuration software to connect the HFC system & PLC.
The GSDML file is included in the installation CD and/or downloadble from the FEC website. Please refer to the
PLC instruction manual for the PROFINET I/O configuration software concerning the appropriate method for
using the GSDML file.

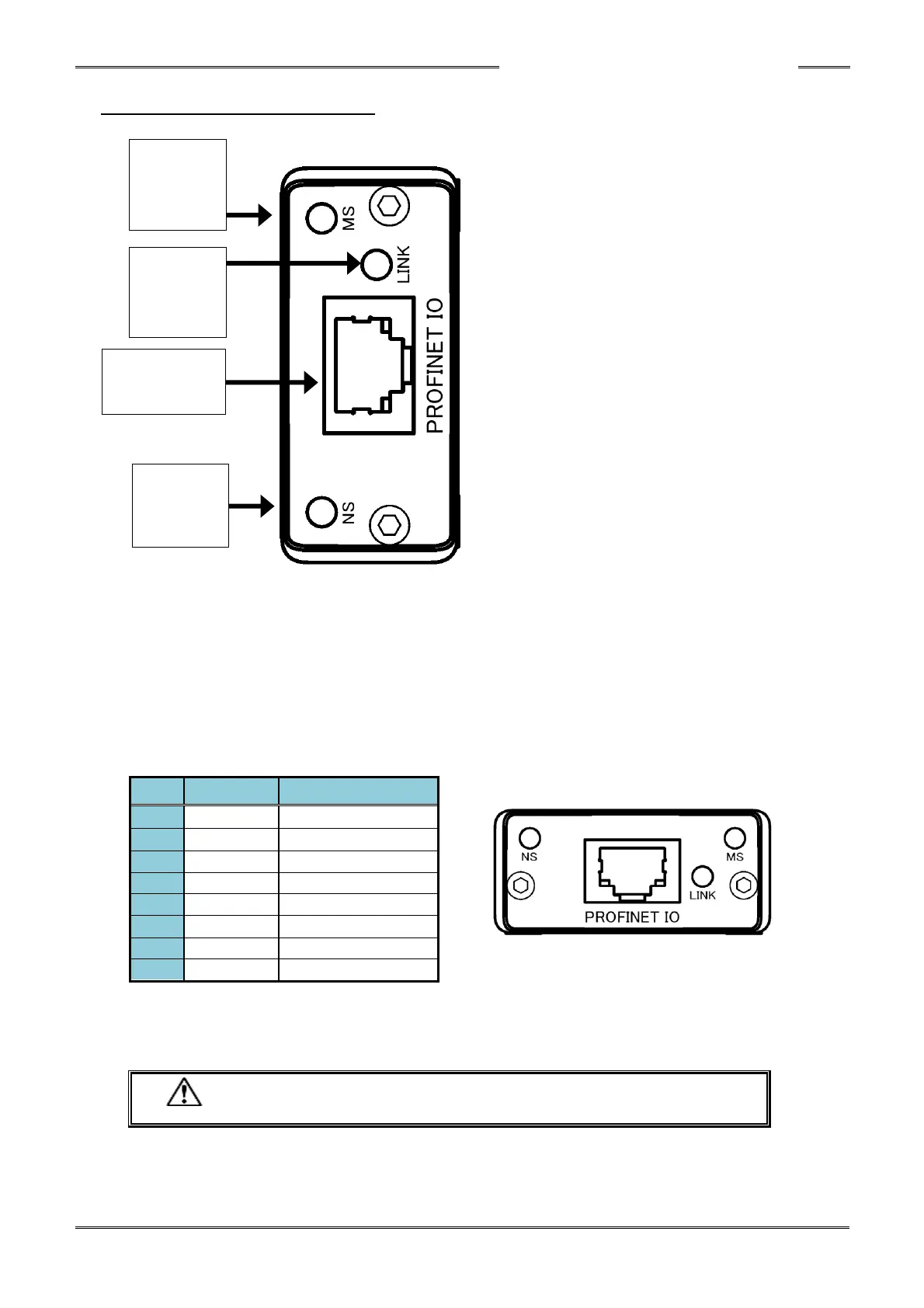

● Module Pin Configuration
No.
Signal
Description
1
TD+
Send data +
2
TD-
Send data -
3
RD+
Receive data +
4
-
Not used.
5
-
Not used.
6
RD-
Receive data -
7
-
Not used.
8
-
Not used.
* The cable is not provided with the equipment. Please provide a LAN cable of Category 5e or higher.
･ Be sure to connect the cable with all power OFF.
Module
Status
LED
Network
Status
LED
ProfiNet I/O
Connector
Link/
Activity
LED
Caution
1 8
