Chapter 9 Fieldbus I/O Interfaces
PAGE 9-47
9-6-4 Fieldbus Setup

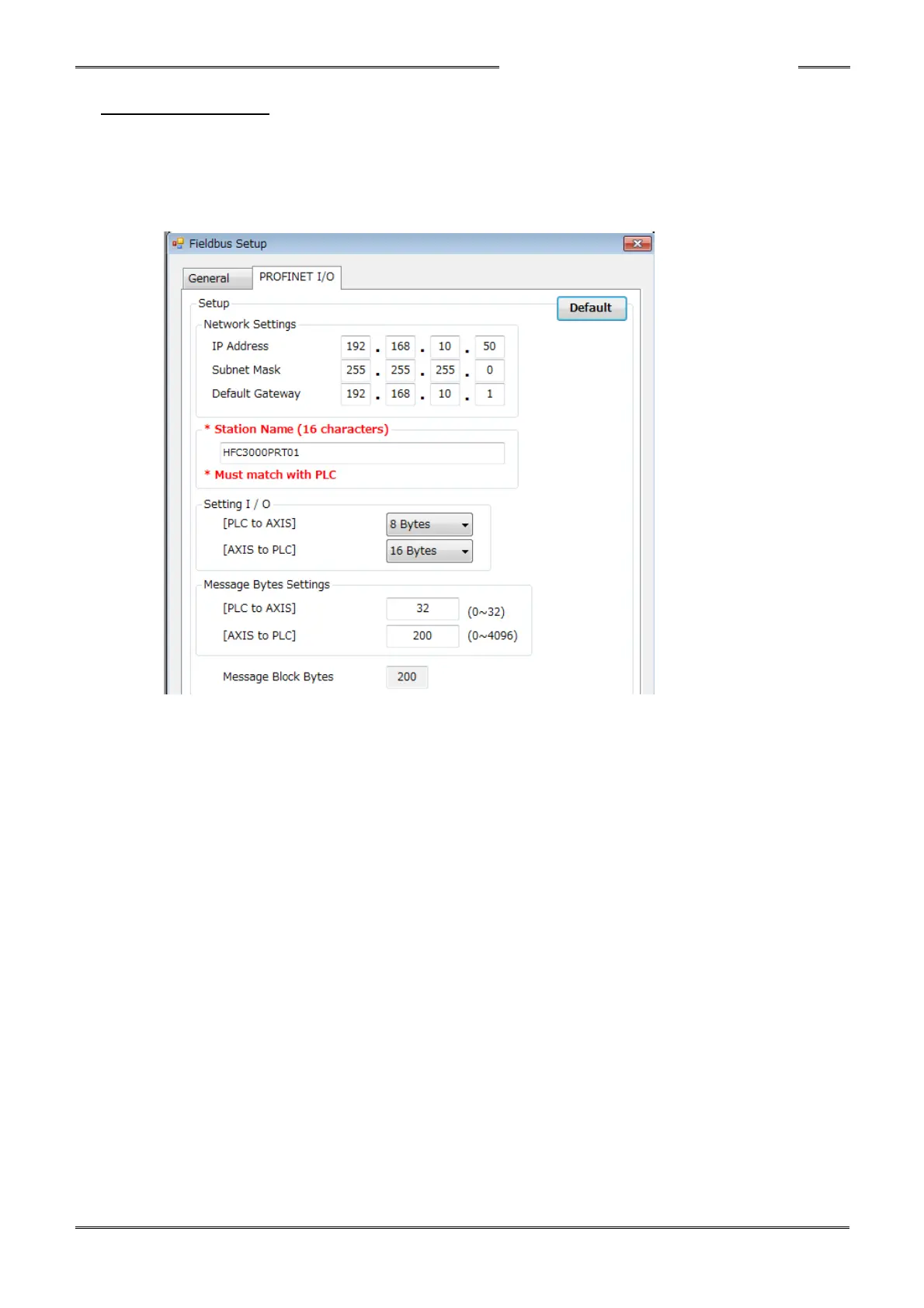

Using the HFC3000 Software, setting of the Anybus-CompactCom PROFINET I/O is performed using the
PROFINET I/O Window tab.
The network settings, the station name, the I/O settings, and the message settings can be changed.
●Default (Default settings)
・Network Settings
IP Address: 192.168.10.50
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.10.1
・Station Name: HFC3000PRT01
・Setting I/O [PLC to Controller]: 8bytes[64bits]
・Setting I/O [Controller to PLC]: 16bytes[128bits]
・Message Bytes Settings [PLC to Controller]: 32bytes
・Message Bytes Settings [Controller to PLC]: 200bytes
* Message Block is fixed at 250 bytes.
●Network Settings
・IP Address: 0.0.0.0 ~ 255.255.255.255
・Subnet Mask: 0.0.0.0 ~ 255.255.255.255
・Default Gateway: 0.0.0.0 ~ 255.255.255.255
●Station Name
Setting range: ASCII characters (half-width alphanumeric characters･ 16 characters at max.)
Please make sure that the name is the same as the name registered at the PLC side.
If the names are not the same, network connection with the PLC side cannot be established.
