5 Conversion and maintenance
104 Festo – P.BE-MPA-EN – 1309f – English
1
2
3
4
5
1 Mounting screws of the valve or blanking
plate
2 Valve or blanking plate
3 Cord seal
4 Electronics module
5 Sub-base

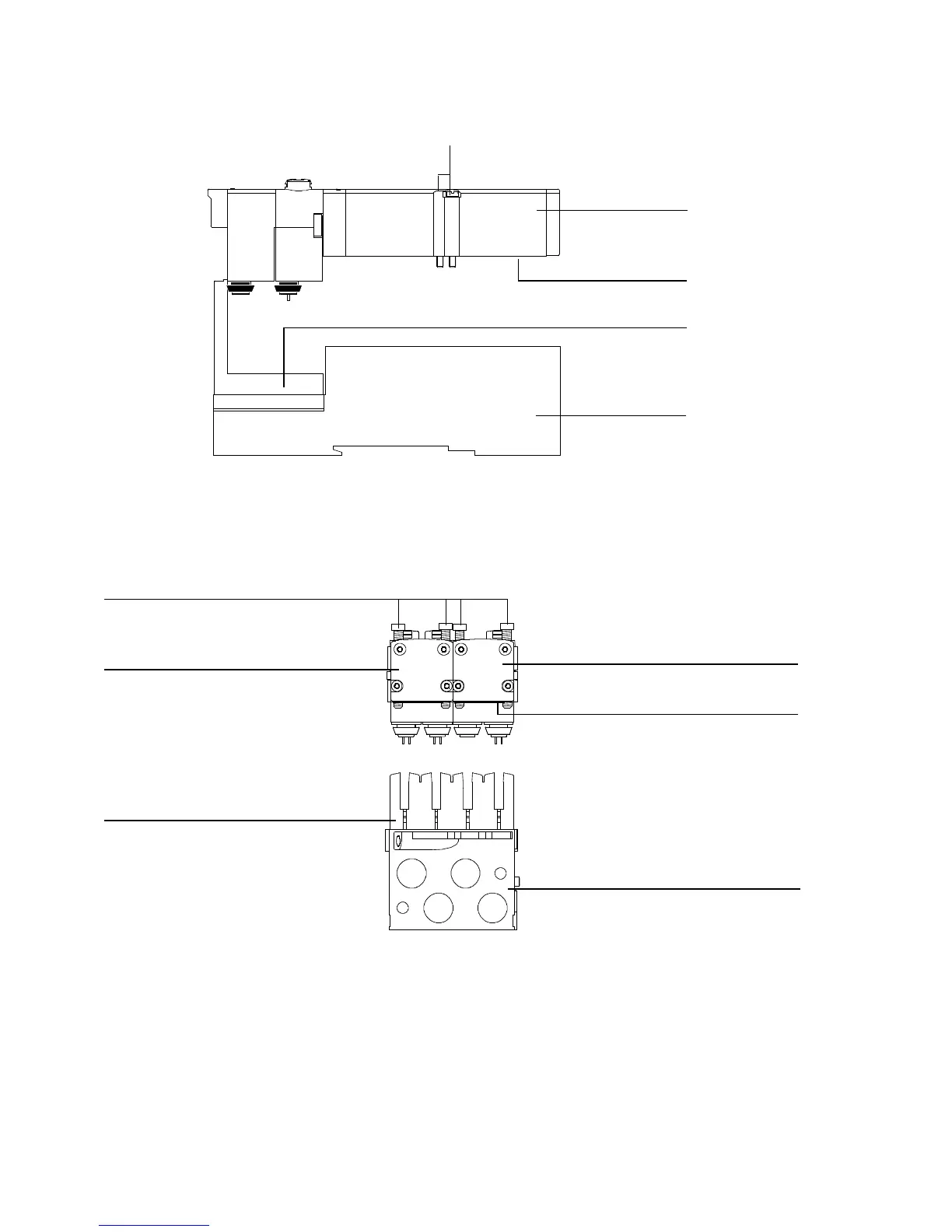

Fig. 5.2 Mounting valve or blanking plate (MPA1)
1
2
3
4
5
2
1 Mounting screws of the component
2 Valve or blanking plate
3 Cord seal
4 Sub-base
5 Electronics module
Fig. 5.3 Mounting valve or blanking plate (MPA2)
4. Place the component on the sub-base.
