B Supplementary component overview
162 Festo – P.BE-MPA-EN – 1309f – English
B.2.1 Dismantling
Proceed as follows:
1. Loosen the electrical and pneumatic connections and then remove the MPA-S valve terminal from its
mounting surface ( section 5.2, “Dismantling the MPA-S valve terminal”).
2. Loosen the fastening screws between the port pattern and the MPA manifold block in the se-
quence 3, 2, 1 ( Fig. B.2).
3. Then loosen the mounting screws.
1
2
3

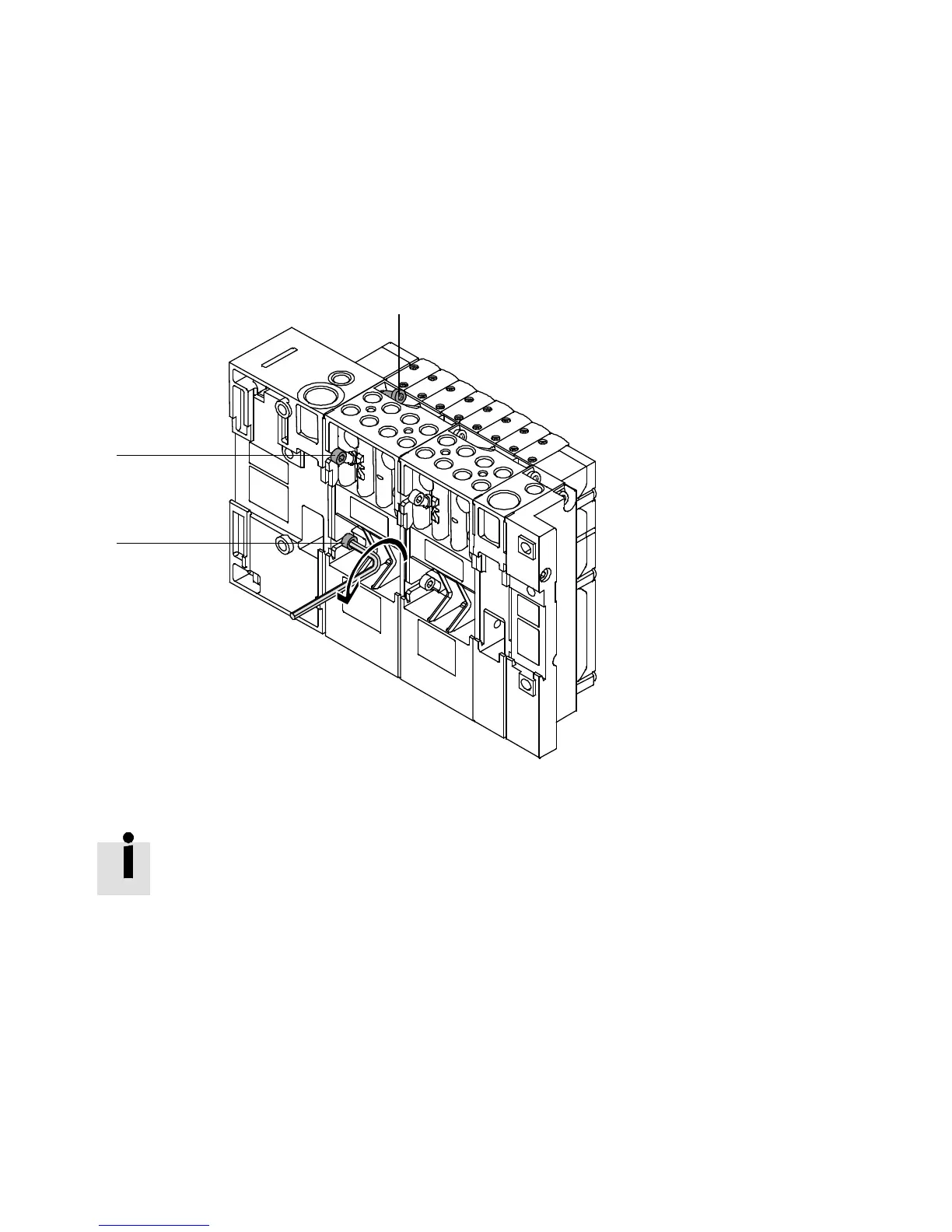

Fig. B.2 Dismounting the MPA-S valve terminal from the port pattern
Informatio n on replacing t he port pattern can be found in the CPX system description.
