2Overview
Festo – P.BE-MPA-E N – 1309f – English 31
2.4.8 Vertical stacking
You can mount further pneumatic co mponents to ea ch valve position between the sub-ba se and the
valve. These components will enable you to implement certain additional functions as desired. The
following components are available:

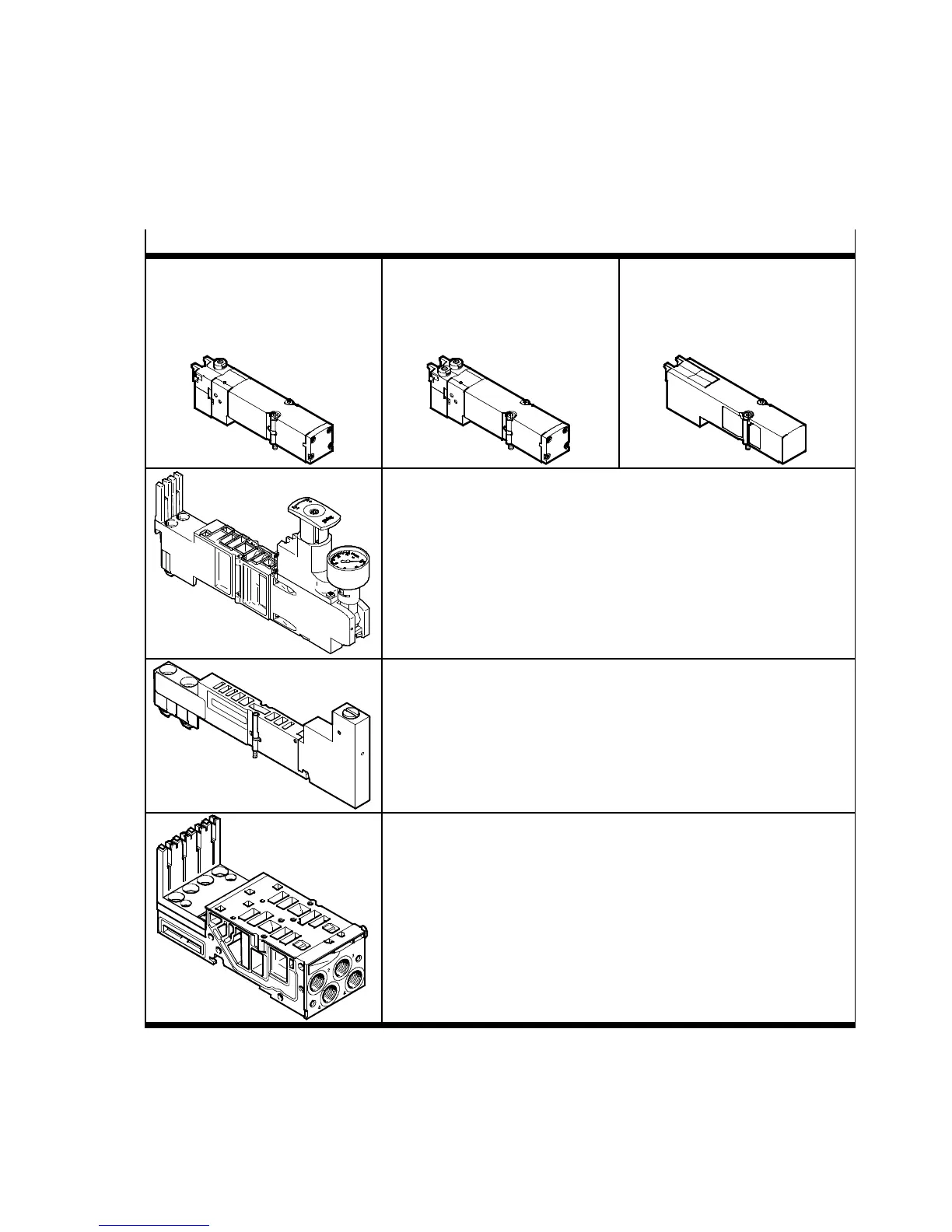

Component
Monostable 5/2-way valves Alternative:
2x 2/2-, 2 3/2-way valves or a
5/2-way bistable valve or a
5/3-way mid-position valve
Alternative:
Cover plate, for sealing an
unused valve position type:
MPA...
Vertical stacking
1)
Pressure regulator plate type: VMPA…-B8-R... (with or without
pressure gauge). The Tab. 2.11 provides you with an overview of
the available pressure regulator plate variants. The “Pressure
regulator plate” section describes the functions of the major
pressure regulator plates.
Vertical stacking
1)
Ver tical pressure shut-off plate type VMPA1-HS
The following section describes the functions of the vertical
pressure sh ut-off plate.
Sub-base type M PA...-...-AP-... with electronic module type
VMPA...-...EM...
1) Instructions on installing the vertical stacking components chapter 3
Tab. 2.10 Components of the pneumatics module of the M PA-S valve terminal
